ELITE RGB & TT RGB Plus
Easy Setup
모니터의 RGB 활성화
1.) USB 3.0 코드를 모니터와 PC에 연결합니다.
A형(직사각)은 PC에 연결됩니다.
B형(사각형)이 모니터에 연결됩니다.
2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.
경고 신호 비활성화

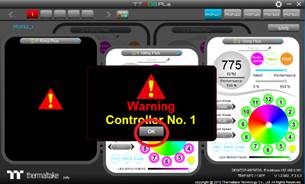

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.
2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.
XG240R을 TT RGB PLUS 소프트웨어와 동기화
1.) Click the square RGB button at the top, center of the program.
2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.
LED 제어
**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).
모니터가 포트 1에서 장치에 지정된 명령과 동일한 명령을 수행합니다.
1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

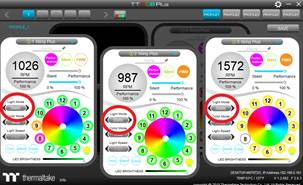

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

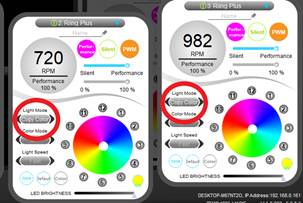

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.
4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.
RGB Single
5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.
Frozen LED Units Unfrozen LED Units
화면 팔로어(플레이어 모드)
1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.
2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.
Voice Control and Additional Info Link

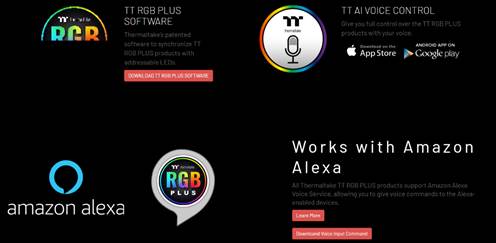

For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/
호환 가능한 제품
ViewSonic Elite 모니터 RGB 액센트 조명을 Thermaltake의 RGB 에코시스템과 동기화하는 것은 아래의 "Must Have" TT 제품 중 하나를 소유한 경우에만 작동합니다.
아래의 호환되는 제품 목록을 참조하십시오. 자세한 내용은 Thermaltake 웹 사이트를 참조하십시오.
*모드 변화, 사용자 정의 기능 및 기타 기능이나 용도는 파트너의 소프트웨어에 명시되거나 제공된 사용 약관, 최종 사용자 라이센스 계약 및 소프트웨어 기능을 기반으로 하며 적용됩니다.
◦Viewsonic 모니터를 Thermaltake RGB 제품과 동기화하려면 사용자는 XG240R 또는 XG350R-C 중 하나와 "필수"로 표시된 하나를 가지고 있어야 합니다
Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
