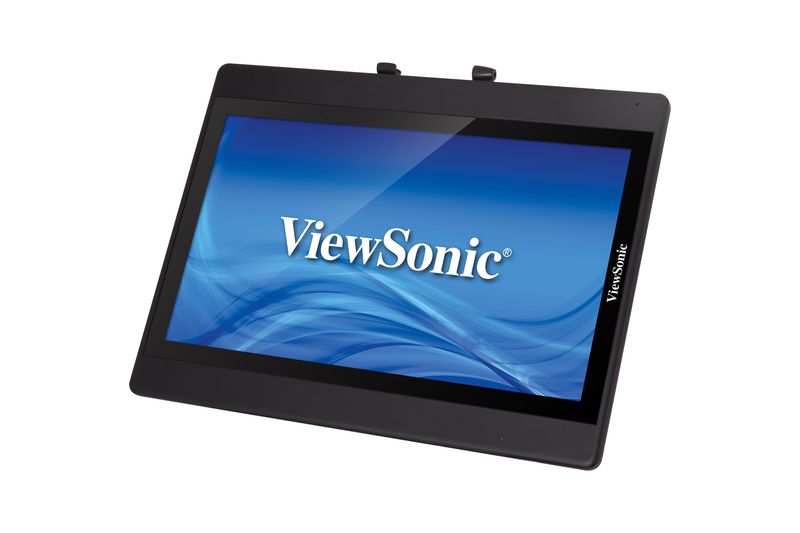

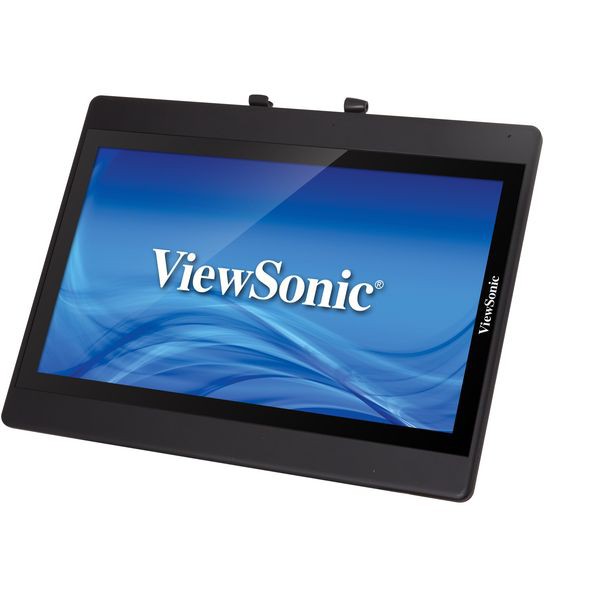

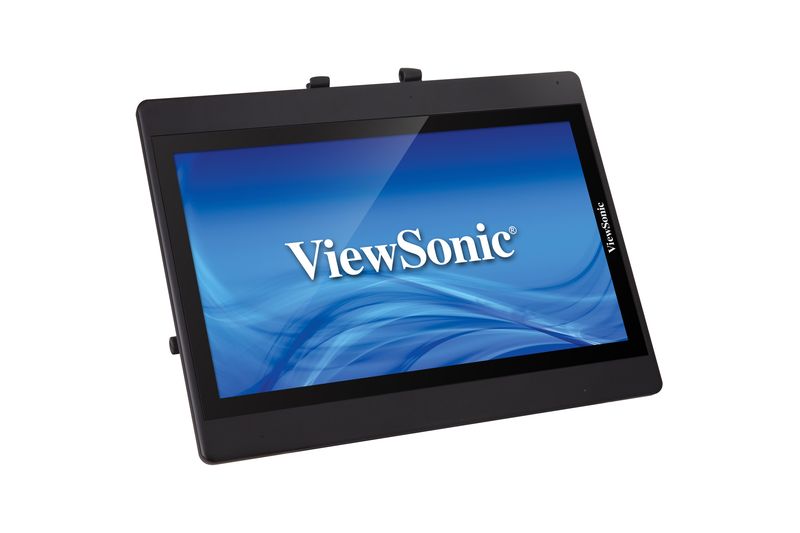

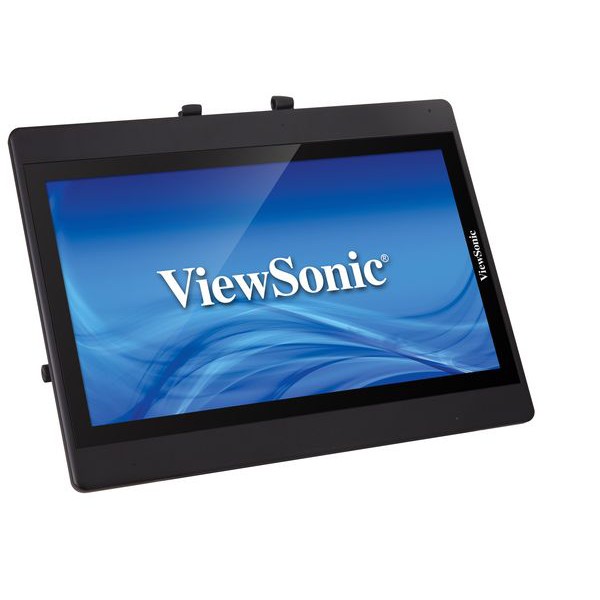

PD1611

16'' (15.6'' viewable) Pen Display, can display A4 size electronic documents vertically

Sales Enquiry

OVERVIEW

The ViewSonic 16'' (15.6" viewable) PD1611 is a high-performance pen display that provides an ideal e-signature solution for corporate, government, retail and educational applications. It features 1366 x 768 HD resolution and advanced electromagnetic pen (EMP) technology to display accurate handwriting images. In addition, from its exclusive battery-free V Pen design, it offers high performance 2048-level pen pressure sensitivity, 200pps tracking speed, and 5080 LPI density, making it easy to accurately take notes, record signatures and draw pictures directly on-screen for incredible detail. And with a state-of-the-art one-cable design, power and data are transmitted through a single USB port, a feature that makes the PD1611 easier to install in a larger number of client-facing settings. The PD1611 also provides steady, shake-free operation with its sturdy bookstand design and it is compatible with Windows OS and various customized e-signature software.

Intuitive handwriting on the display for E-signature and paperless work flow

ViewSonic’s pen display adopts leading Electromagnetic Resonance Pen (EMP) technology, recreating authentic handwriting and enabling digital signatures, note taking, sketching, and drawing directly on the display. With this intuitive handwriting capability, it provides efficient e-signature solution, an eco-friendly and paperless workflow is created where no time is wasted printing, filing and storing hard copies of signatures.

Durable and Reliable Battery-free V Pen

The ViewSonic pen display features battery-free V pen and superior pen-tip material design, giving it a durable 80,000-tap lifespan, no need to worry about running out of battery while writing and battery replacement, making it the best investment of digital e-signature solution.

Intuitive handwriting on the display for E-signature and paperless work flow

This technology delivers intuitive and accurate handwriting with its 2048-level pen pressure sensitivity to better render digital signatures, designs, or sketches. Its 200pps response rate instantly produces written text and drawings on the screen, without any delays or visual disconnections, and 5080 LPI density produces images with superior texture.

One-cable solution for easy set up

The PD1611 comes with a simplified one-cable USB design. It uses just one USB connection for both the power and input signals, offering full connectivity to your PC or laptop. This convenient connectivity makes it perfect for portable usage and easy, clutter-free installation in any working environment.

Windows® compatible and support e-signature software

The ViewSonic pen display is compatible with Windows operating systems, as well as various digital signature software, including Adobe Reader signature, banking, retail and other customized application, for paper-free e-signature solution.

8H glass with anti-scratch, anti-glare, and anti-fingerprint

Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.

5 - 10mm pen hover feature keeps you on point

Leveraging its hovering capability, the V Pen is able to function up to 5-10 mm away from the screen. The ViewSonic pen display can sense the V Pen’s tip before it even touches the screen. Plus, it accurately reflects the exact location where the stylus touches the screen with an accuracy of ± 0.5mm.

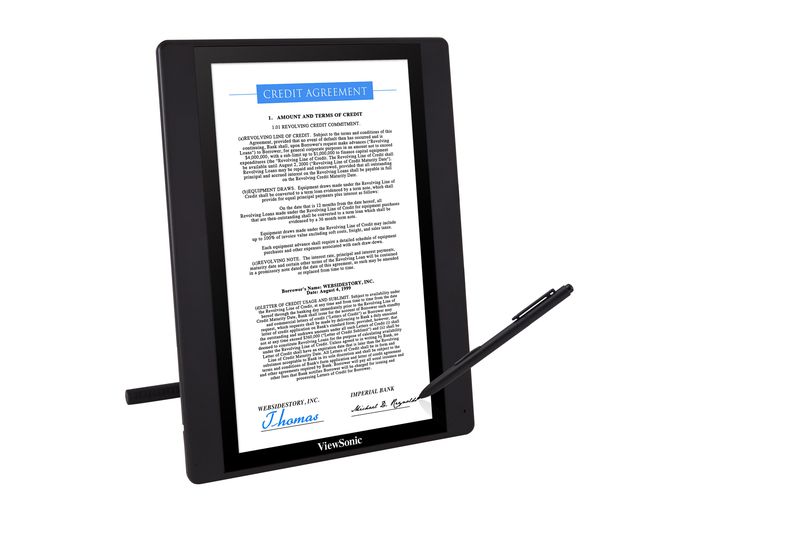

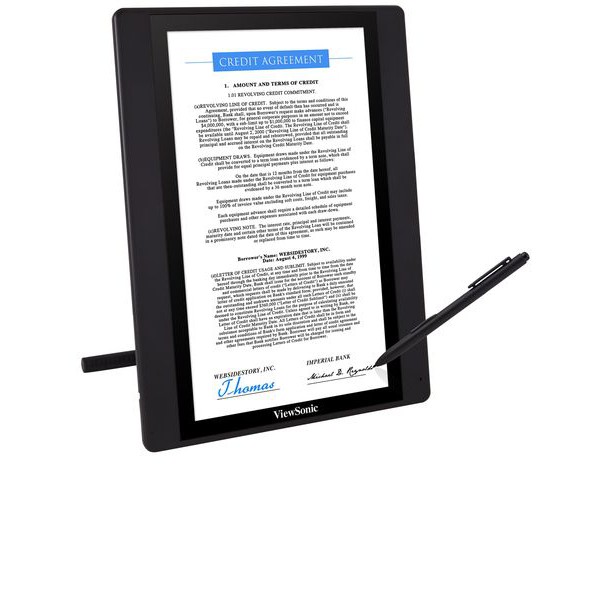

Ergonomic design and Kensington lock security

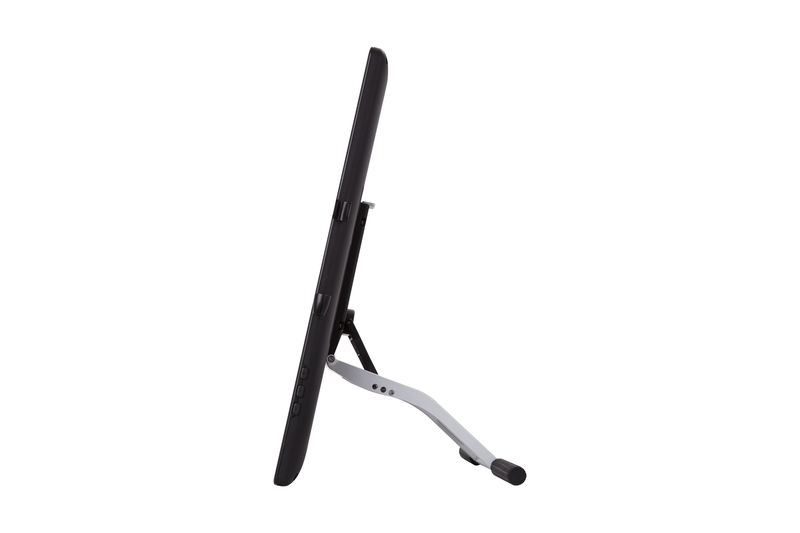

The PD1611 comes with ergonomic 5°, 15° tilt adjustments to accommodate placement on low and high counters or other surfaces. It also accommodates a Kensington V pen tether lock for added security so that your V Pen never gets stolen or misplaced.

SPECIFICATIONS


  • LCD Panel
    Display Area: 344.232 (W)X195.538 (H) mm
    Optimum Resolution: 1366 x 768, 16:9
    Brightness: 250 cd/m2
    Contrast Ratio: 1000 : 1
    Viewing Angles: 130°(V) / 90° (H)
    Backlight: LED Light-Bar
    Surface Treatment: 8H tempered glass
  • Input
    Frequency: Horizontal:30-48kHz, Vertical:56-70Hz
  • Touch
    Technology: Electromagnetic Resonance
    Touch Pen: Battery-Free
    Writing Response: 200 PPS (point per second)
    Pressure Level: 2048 Levels
    Digitizer Resolution: 5080 LPI
    Accuracy: ± 0.5mm (center), ± 1 mm (edge)
    Detectable Height: 5 - 10mm above glass

SUPPORT & DOWNLOADS


Datasheets

PD1611 Datasheet

User Guides

PD1611 User Guide (English)

Driver & Software

DisplayLink 8.2M3 DriverPen Display Driver(For Windows)
