ELITE RGB & TT RGB Plus
Mise en place facile
Activation de la fonction RVB de votre moniteur
1.) Branchez le cordon USB 3.0 sur le moniteur et le PC.
Le type A (rectangle) se branche sur le PC.
Le type B (carrées) se branchent sur le moniteur.
2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.
Désactivation du signal d'alerte

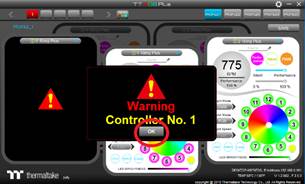

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.
2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.
Synchronisation de votre XG240R avec le logiciel TT RGB PLUS
1.) Click the square RGB button at the top, center of the program.
2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.
Contrôle des LEDs
**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).
Votre moniteur exécutera les mêmes opérations que le périphérique du Port 1.
1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

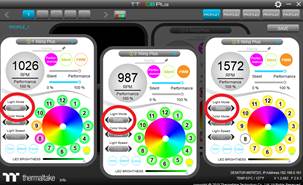

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

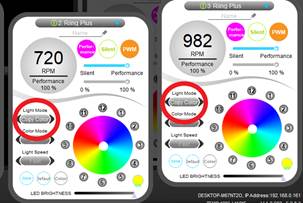

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.
4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.
RGB simple
5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.
Frozen LED Units Unfrozen LED Units
Suivi d'écran (Mode Joueur)
1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.
2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.

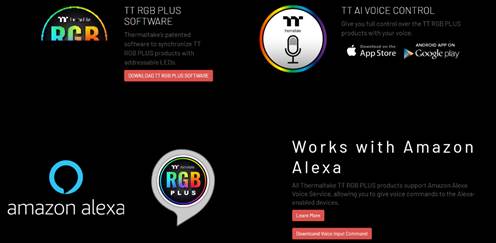

Voice Control and Additional Info Link
For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/
PRODUITS COMPTABLES

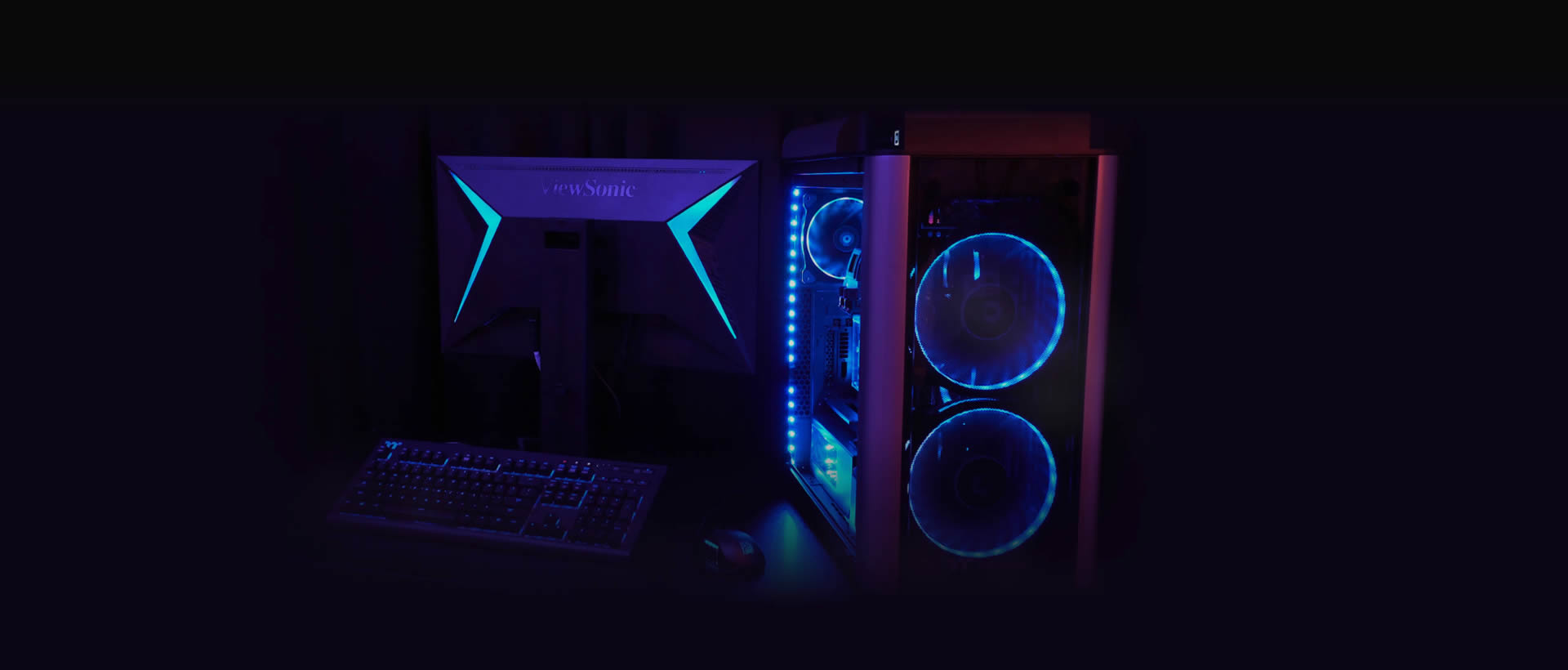

La synchronisation de l’éclairage d’accentuation RVB de votre moniteur ViewSonic Elite avec l’écosystème RVB de Thermaltake ne fonctionne actuellement
que si vous possédez l’un des produits TT « indispensables » ci-dessous.
Consultez la liste des produits compatibles ci-dessous. Pour plus d’informations, veuillez consulter le site Web de Thermaltake.
*Les modes de variation, les fonctions de personnalisation et toute autre fonction ou utilisation sont basés sur et soumis aux conditions d'utilisation, à l'accord de licence de l'utilisateur final et aux capacités du logiciel telles qu'elles sont spécifiées ou fournies dans le logiciel du partenaire.
¹Pour synchroniser votre moniteur Viewsonic avec les produits RGB de Thermaltake,
les utilisateurs doivent avoir le XG240R ou le XG350R-C et l'un des produits indiqués comme " indispensables ".
Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
