CDX4952

49" 1080p Commercial Display

  • Ultra-narrow Bezel
  • 10x10 Tiling Support with DisplayPort or DVI
  • Supports HDMI CEC pass-through
  • vController Software
  • Computing expansion PC slot for Intel OPS

OVERVIEW

With stunning brightness, vibrant images, and multi-screen tiling, the ViewSonic® CDX4952 49" (48.5" viewable) commercial display is your ideal tool for creating video walls that wow! With up to 10x10 tiling installation, and an ultra-narrow bezel that measures only 3.5mm between combined displays, the CDX4952 delivers nearly seamless, high-impact messaging that helps you to astonish, inspire, and inform. Featuring full metal construction and a scratch-resistant tempered glass screen, this durable commercial-grade display delivers reliable messaging 24 hours a day, 7 days a week. With Full HD 1080p resolution, 450-nit brightness, SuperClear® technology for wide viewing angles, and dual 10W stereo speakers, the CDX4952 delivers sharp, vivid images with incredible sound for superior multimedia performance.

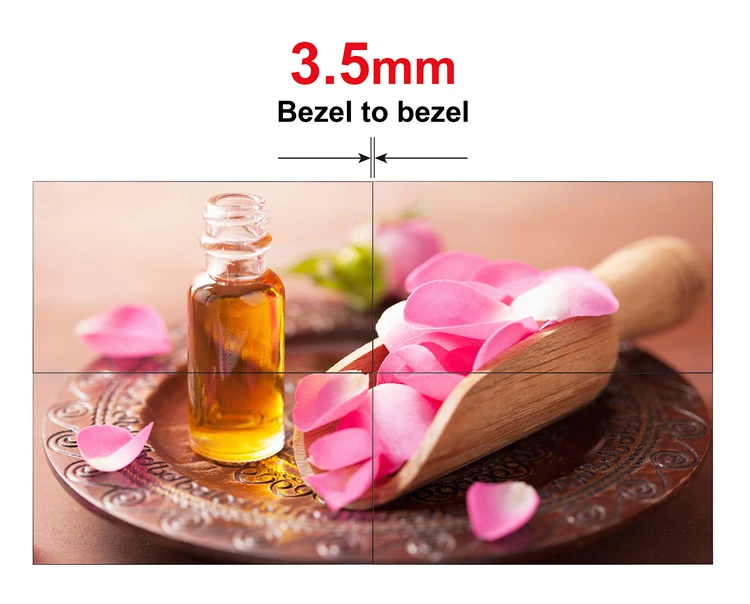

Ultra-narrow Bezel

With a thin edge-to-edge bezel between combined displays, this commercial display creates stunning, near-seamless images when used in large video wall configurations.

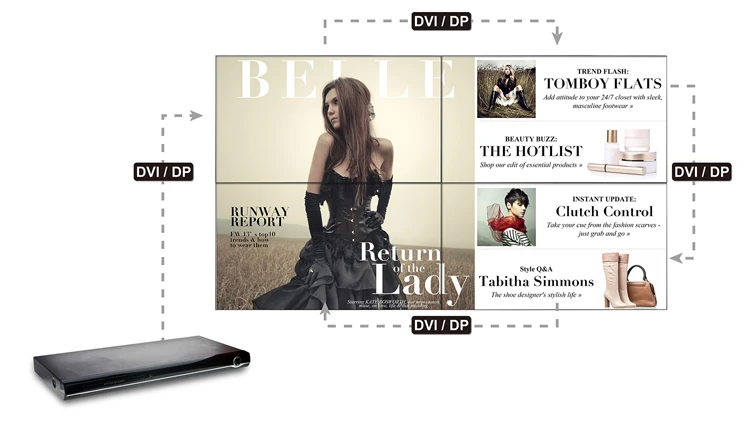

10x10 Tiling Support with DisplayPort or DVI

With integrated DisplayPort and DVI outputs, this display supports up to 10x10 tiling for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.

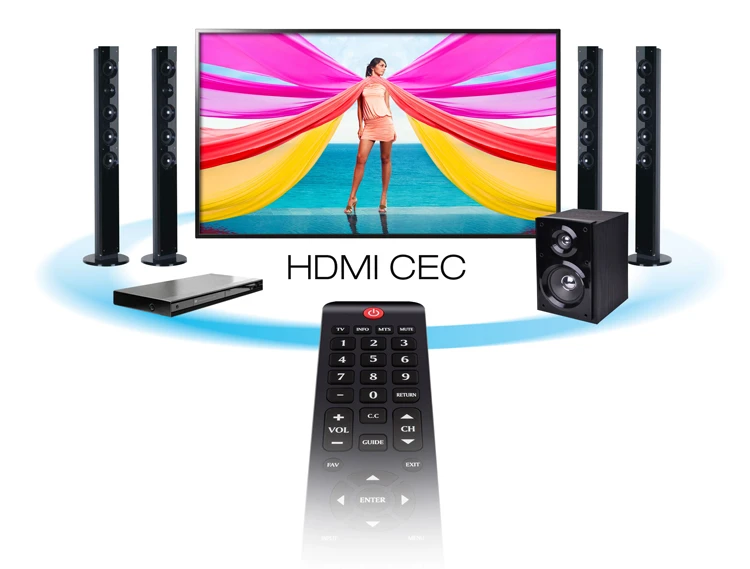

Control Multiple Devices

HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

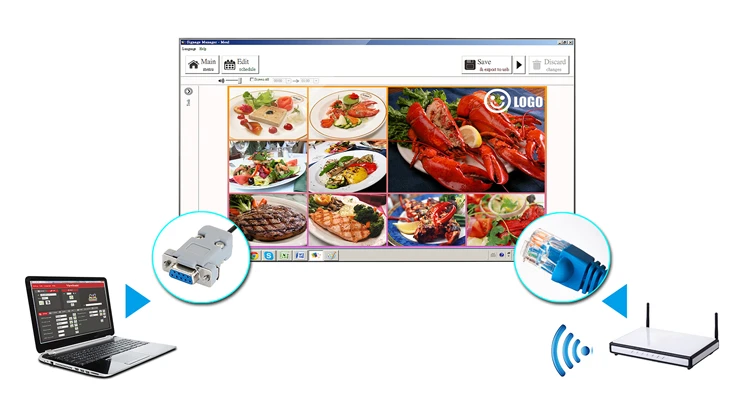

Free Bundled vController Software

Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

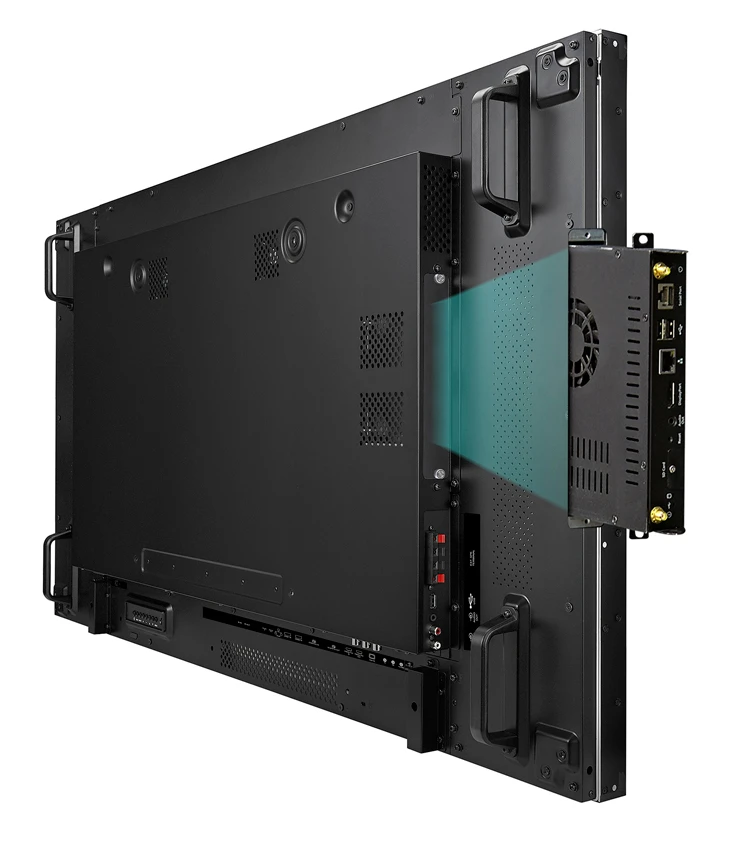

OPS PC Slot

Equipped with Intel’s Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience.

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 49"
    Type/Tech: TFT LCD Module. (IPS type, DLED backlight)
    Display Area: 1073.8(H) x 604.0 (V) (48.50” diagonal)
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 10 Bits, 1.07 Billion colors
    Brightness: 450 nits (typ.)
    Contrast Ratio: 1300:1 Typ.
    Response Time: 12ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 Hours Typ.
    Surface Treatment: Hard coating(3H), Anti-glare treatment of the front polarizer, Haze 1%(Typ.)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x2 (V.1.4)
    RGB / VGA: x1
    DisplayPort: x1
    DVI: x1
    Audio: x1 PC audio(3.5 mm)
    CVBS: x1 (Share with component Y)
    YPbPr: x1
    IR Pass Through: x1
    RS232: x1
    OPS: x1
  • OUTPUT
    DisplayPort: x1
    DVI: x1
    Audio: x1 PC audio(3.5 mm)
    IR Pass Through: x1
    RS232: x1
