Tính năng chính
  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

LDM216-251
Sản phẩm Mô tả
The ViewSonic® LDM216-251 is an innovative 216” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With a 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 35 mm thickness & bezel-free seamless design, the LDM216-251 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact, whether hanging on the wall or aluminum alloy floor stand. The All-in-One large screen display boasts easy delivery, installation, and maintenance with a front-assembly modular design. The built-in screen-sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LDM216-251 enables IT personnel to remotely set up and configure.

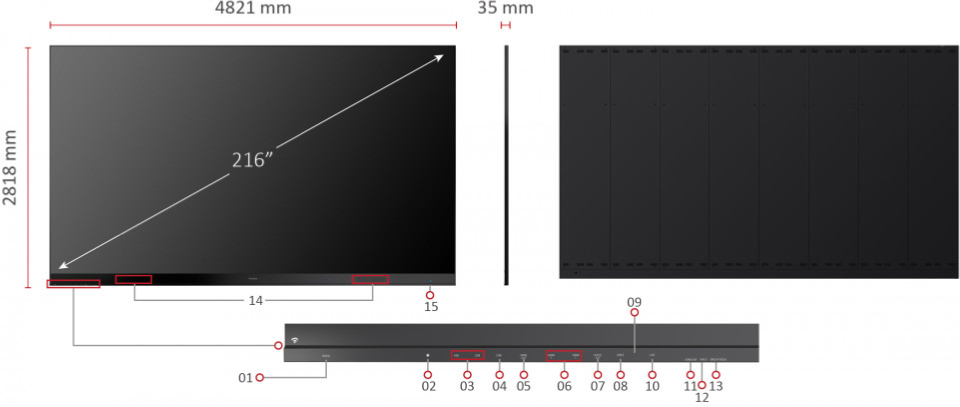

  1. RS-232
  2. Ambient Light Sensor
  3. USB 2.0 (5V/0.5A)
  4. USB 3.0 (5V/1A)
  5. HDMI Out
  6. HDMI In
  7. Audio Out
  8. USB-B (Service)
  9. IR Receiver
  10. LAN
  11. Menu Control: Stand-by
  12. Menu Control: Input Source
  13. Menu Control: Brightness Level
  14. Speakers
  15. Power Button
Ghé thăm Chúng tôi
  • www.viewsonic.com
  • THôNG Số Kỹ THUậT
    Screen Size: 216''
    Khu vực hiển thị (mm): 4800 (H) x 2700(V)
    Độ phân giải gốc: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Bonding Wire: Copper
    Pixel Pitch (mm): 2.50
    Refresh Rate: 3840Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Hướng: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Lưu trữ cục bộ: Total 32GB
    (26GB available storage)
    Hệ điều hành tích hợp: Android 8.0
    Hỗ trợ độ phân giải: VGA(640 x 480) to
    1080p(1920 x 1080)
    Tương thích HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Tần số ngang: 31K-94kHz
    Tốc độ quét dọc: 56-85Hz
  • ĐầU VàO
    HDMI: x2
    (HDMI 1.4, HDCP 1.4)
    USB Type A: x3
    (USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • ĐầU RA
    HDMI out: x1
    (HDMI 1.4, HDCP 1.4)
    Loa: 5Wx2
    Cổng ra âm thanh (3,5 mm): x1
    USB Type A (Nguồn): Shared with USB input
    (5V/1A x1, 5V/0.5A x2)
  • ĐIềU KHIểN
    RJ45 (LAN control): x1(shared with internet)
    USB Type A (Services): x1(shared with USB A input)
    USB Type B (Debug): x1
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • KHáC
    Điện áp cung cấp: 100-120V/30A~ 50/60Hz
    220-240V/15A~ 50Hz
    (vary by country)
    Tiêu thụ năng lượng: 3430W (typ), 4900W (max)
    < 0.5W (Sleep), < 0W (Off)
    Nhiệt độ hoạt động: 0~40℃
    LED Module Quantity: 128
    Ingress Protection Rating: IP30
    Khối lượng tịnh: 750 lbs
    (340kg)
    Gross Weight: 992 lbs
    (450kg)
    Screen Dimensions (WxHxD): 189.8x110.9x1.4 inches
    (4820.95x2818.45x 35mm)
    Screen Dimensions (WxHxD) with wall mount: 189.8x110.9x2.2 inches
    (4820.95x2818.45x 56mm)
    Packing Dimensions (WxHxD): 109.4x33.5x40.2 inches
    (2780x850x1020mm)
  • STANDARD ACCESSORIES
    Dây nguồn: x2
    USB Cable (A-B): x1
    Điều khiển từ xa: x1
    QSG: x1
    Giá treo tường: x1
    Spare Parts: LED PCB Unit x2
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
