Tính năng chính
  • myViewBoard™ suite with whiteboard, wireless casting and remote device management
  • Front-facing dual speakers for better engagement ​
  • Pen-on-paper writing experience with Ultra Fine Touch Technology​
  • Quad Core CPU powered by Android 9.0 OS​
  • Low blue light certified

IFP6532
Sản phẩm Mô tả
The ViewBoard® 32 series provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. The 4K UHD display features bonding technology for clearer colors and less glare. A 20-point touchscreen interface allows users to collaborate naturally either with a finger or one of the ViewBoard styluses. The built-in access to the myViewBoard suite brings together all of the hardware with a seamless software integration. ​The display also features Ultra Fine Touch Technology that delivers a paper-like writing experience with instant response and high accuracy, while dual-tip pen support allows you to simultaneously write or draw with two different colors. Users will also enjoy additional connectivity via the SmartPort™ USB and multi I/O ports, including HDMI/VGA, when looking to connect other devices for further classroom support. ​The included myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools including simple, wireless casting capability with secure single sign-on, innovative collaboration tools, easy conversion of common files, and much more. Additionally, myViewBoard Manager offers a single-point management system capable of simultaneously controlling multiple displays.

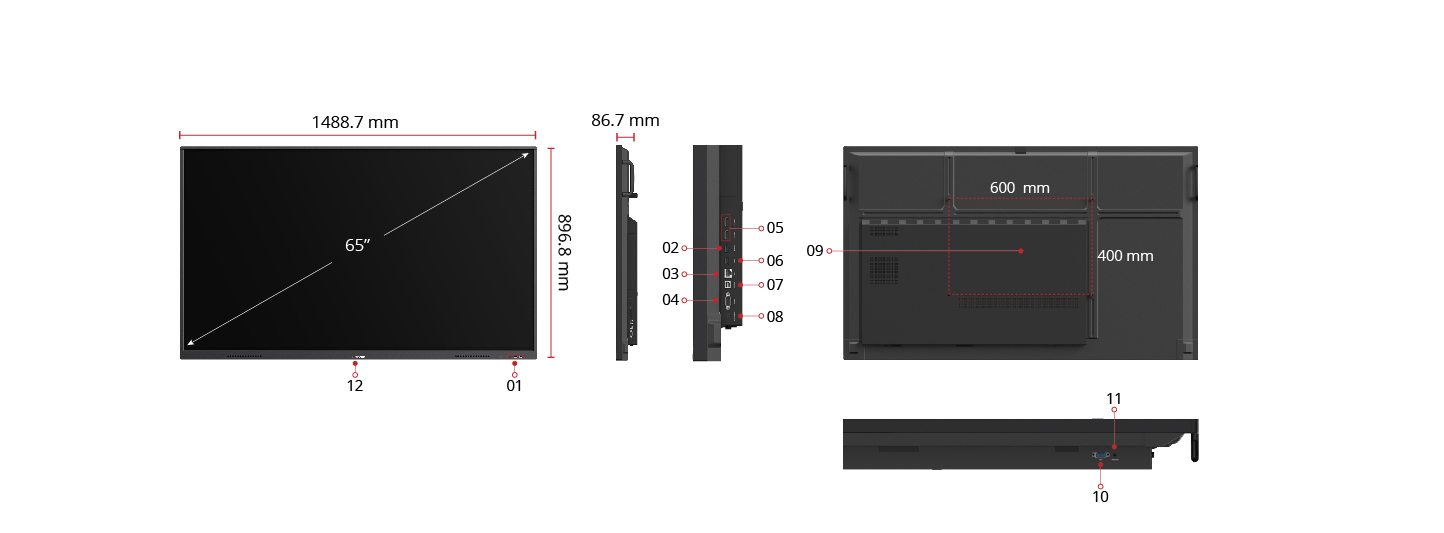

  1. Smart Port USB™ X 2
  2. Camera
  3. LAN
  4. RS232
  5. HDMI X 2
  6. USB 2.0
  7. Touch
  8. Audio Out
  9. VESA® Wall Mount600 x 400mm
  10. VGA
  11. Audio In
Ghé thăm Chúng tôi
  • www.viewsonic.com
  • HIểN THị
    Kích thước bảng điều khiển: 65"
    Loại tấm nền: TFT LCD Module with DLED Backlight
    Khu vực hiển thị (mm): 1428.48(H) x 803.52 (V) (64.5” diagonal)
    Tỷ lệ khung hình: 16:9
    Nghị quyết: UHD 3840x2160(Pixels)
    Colors: 1.07B colors (10bit)
    Độ sáng: 350 nits (typ.)
    Độ tương phản: 4000:1
    Thời gian đáp ứng: 6.5ms
    Góc nhìn: H = 178, V = 178 typ.
    Tuổi thọ đèn nền: 30,000 Hours (Min)
    Xử lý bề mặt: Hardness: 9H Anti-glare coating
    Hướng: Landscape
  • NềN TảNG
    Bộ xử lý: ARM quad-core Cortex-A55
    RAM: 2GB DDR4
    Kho lưu trữ: 16GB
  • TOUCH
    Loại / Công nghệ: Ultra Fine Touch Technology
    Điểm cảm ứng: 20 points touch,
  • INPUT
    HDMI: 2.0 x2 (3840x2160 @60Hz)
    (HDMI2 port support ARC function)
    RGB / VGA: x1
    Âm thanh: x1 (PC audio in)
    RS232: x1
    OPS: x1 (Optional Intel Standard OPS)
    Wifi: x1 (Optional VB-Wifi-002)
  • OUTPUT
    Âm thanh: x1 (Earphone out)
  • LAN
    RJ45: x1
  • USB
    Loại A: USB2.0 Front x2 (SmartPort™ USB);
    Rear x2
    Loại B: x1 for HDMI/VGA touch
  • LOA
    10W x 2 subwoofers
  • Hệ đIềU HàNH TíCH HợP
    Android 9
  • GóI PHầN MềM
    Phần mềm chú thích cơ bản: myViewBoard Whiteboard
    Phần mềm chú thích chuyên nghiệp: myViewBoard Whiteboard for Windows
    (Embedded in optional Windows Slot-in PC)
    Trình Chiếu Không Dây: myViewBoard Display
  • CáC TíNH NăNG đặC BIệT
    All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
    Chia sẻ mạng LAN đơn giản giữa thiết bị IFP và thiết bị có khe cắm: 10/100M for Android & Slot-in PC
    Light Sensor: Yes
  • NGUồN
    Vôn: 162-240VAC +/- 10%
    Sự tiêu thụ: On: 175W (typ.) / Off: <0.5W
  • ERGONOMICS
    Giá treo tường (VESA®): 600x400
  • OPERATING CONDITIONS
    Nhiệt độ (º C): 0°C to 40°C
    Độ ẩm: 10% ~ 90% RH non-condensing
  • KÍCH THƯỚC (RộNG X CAO X DàY)
    Kích thước (inch / mm): 1489×897×87 mm / 58.6x35.3x3.4 in
    Bao bì (inch / mm): 1628×208×1005 mm / 64x8.2x39.5 in
  • WEIGHT
    Khối lượng tịnh (lb / kg): 38.3kg/84.4lb
    Tổng (lb / kg): 46.0kg/101.4lb
  • REGULATIONS
    BIS, CB, CE,LBL
  • NỘI DUNG GÓI
    1. Power cable (3 meters) / 2. Remote control / 3. USB cable (3 meters) / 4. Touch pen x 2 / 5. Quick start guide / 6. RS232 adapter / 7. Clamp x 5 / 8. Screw x 8 / 9. HDMI cable (3 meters)
  • TươNG THíCH VớI SLOT-IN PC
    VPC12-WPO/VPC25/VPC2C/VPC27
