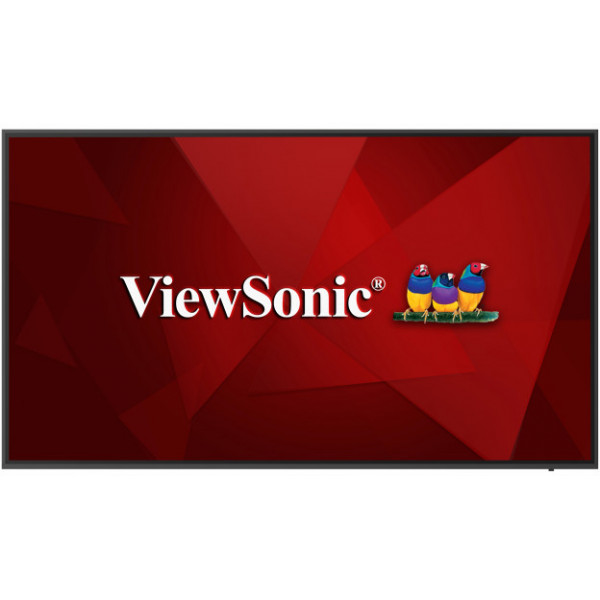

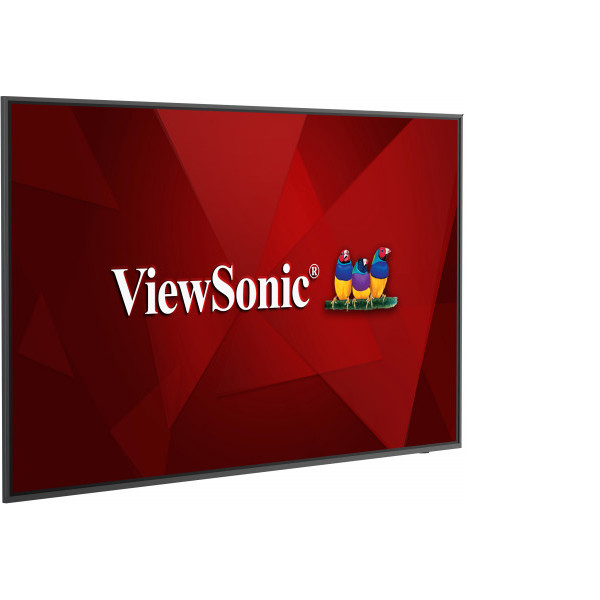

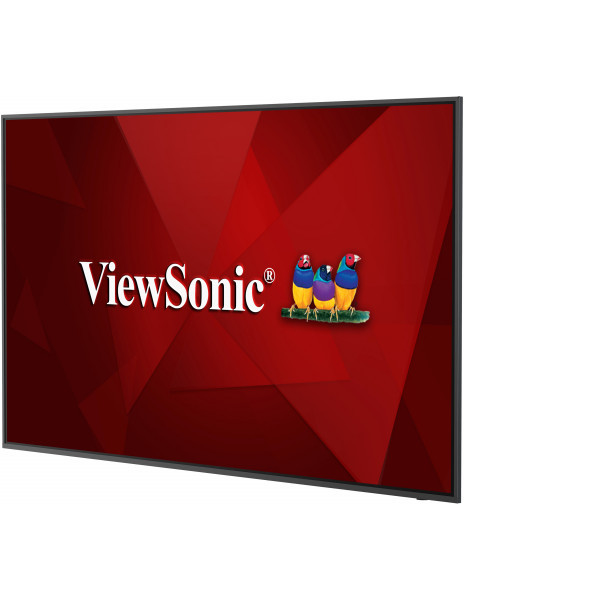

CDE6520

65" 4K Wireless Presentation Display (WPD)

Easy cast function
Wireless presentation across devices and rooms
USB flash drive plug-and-play for photos, music & video
Multitasking with powerful embedded player & OPS PC slot
4K slim bezel commercial display

Yêu cầu bán hàng Chia sẻ

TỔNG QUÁT

The ViewSonic^® CDE6520 is a 65” 4K display. The built-in screen sharing software*, ViewBoard^® Cast and myViewBoard Display enable multiple users, whether onsite or online, to participate in conferences and share content simultaneously, transforming the CDE6520 into a dynamic content hub. This reliable commercial display is equipped with a quad-core processor and internal memory, allowing constant multimedia play from internal storage or a USB flash drive. Supporting remote configuration and content management systems, the ViewSonic^® CDE6520 is also suitable for diverse signage applications.

*Chrome, Android, Windows, Mac OS, and iOS compliant
*Miracast, Chromecast, and AirPlay support

Start an Easy Group Presentation

Instant Casting without Dongle or app Installation
Any laptop with a browser

No setup required, just open a Chrome, Chromium, or Edge browser to share your content.

*built-in myViewBoard Display app to support wireless casting

All Content on One Screen
Across devices with the app

From side-by-side to multiple screens overview, the display enables all mobile users to share their full HD content.

Bring All Remote Participants Together

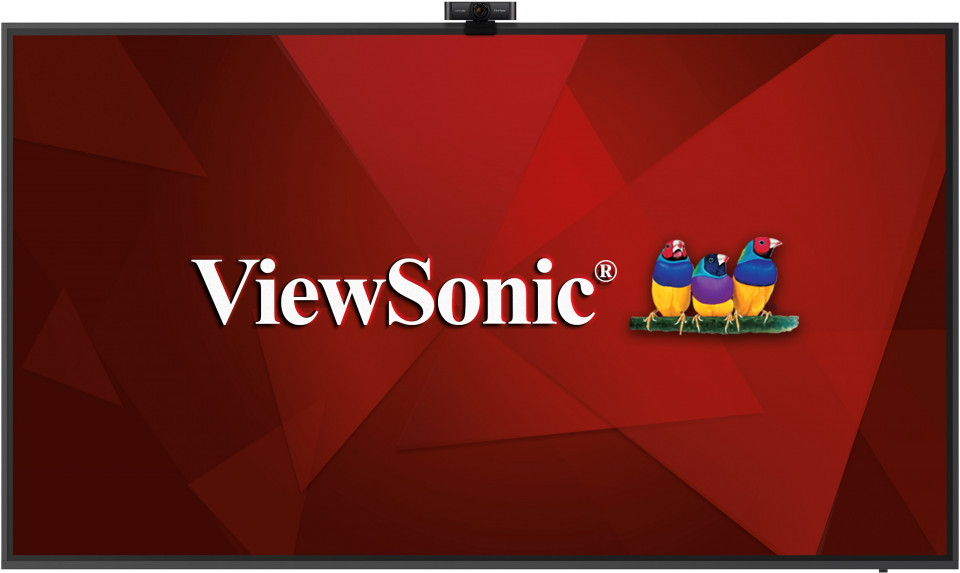

1080p 110° web camera

Built-in noise reduction, WDR, and backlight compensation make your meeting’s audio-visual quality great in both bright and dark environments.

*Optional VB-CAM-001

Conduct an Engaging Workshop

Single Content to All Displays
On-site or across rooms with the app

Mirror your content to multiple displays for multi-group environments.

Play Multimedia and Internet Resources

Friendly OS Environment Interface
Embedded player with WiFi & OPS PC slots

*Optional WiFi module LB-WIFI-001 & OPS PC VPC12-WPO

Integrated Multimedia Player
USB flash drive plug-and-play for photos, music, and video

Link with Internet Resources
Web browser

Quality Image Display for a Modern Meeting

4K
High brightness with a slim bezel

Easy IT Remote Management

Remote Settings & Content Management
myViewBoard manager, SureMDM, Revel Digital and more

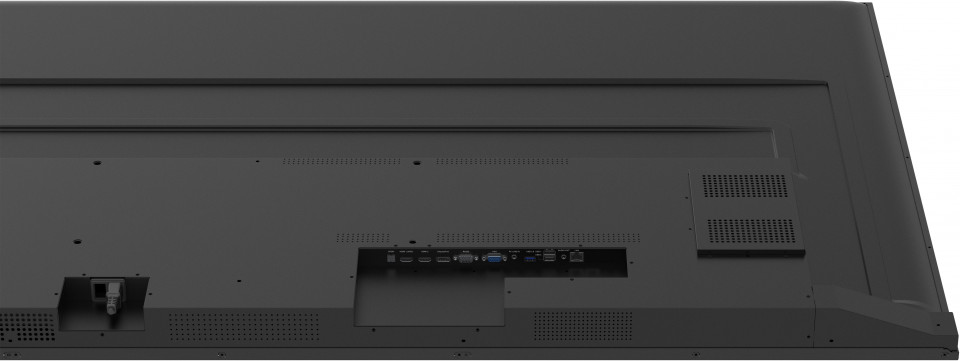

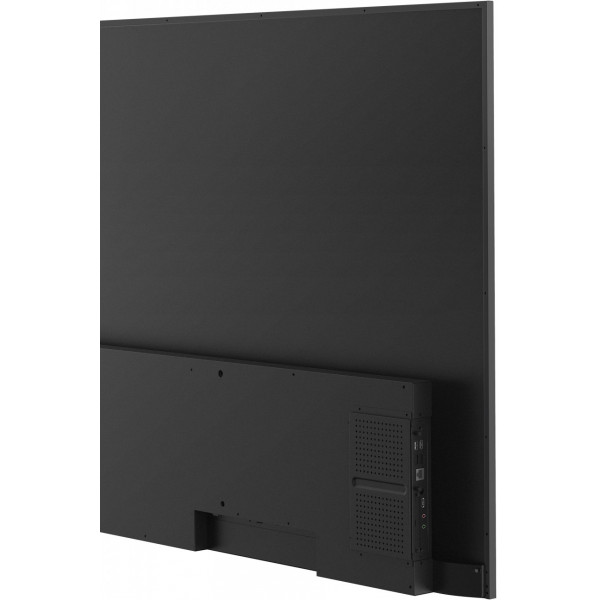

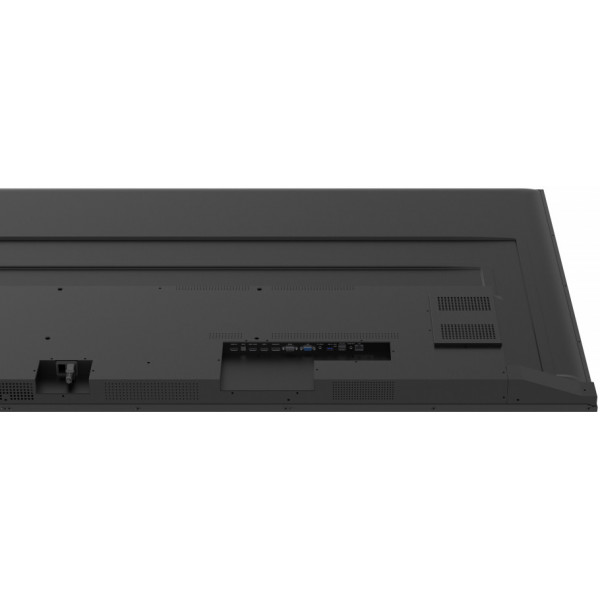

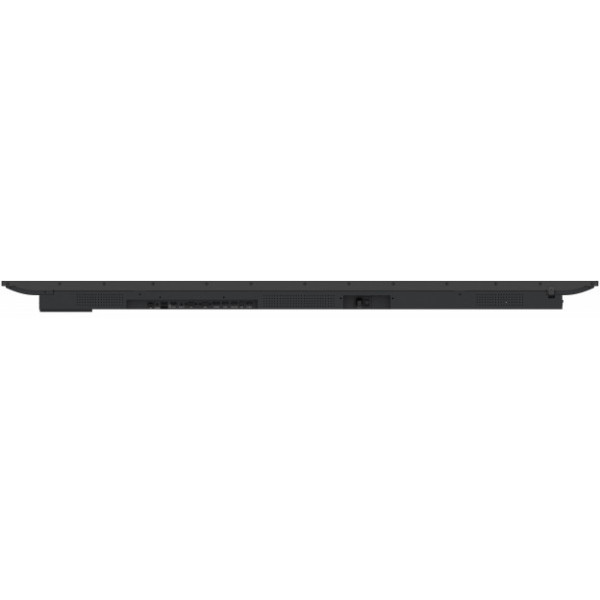

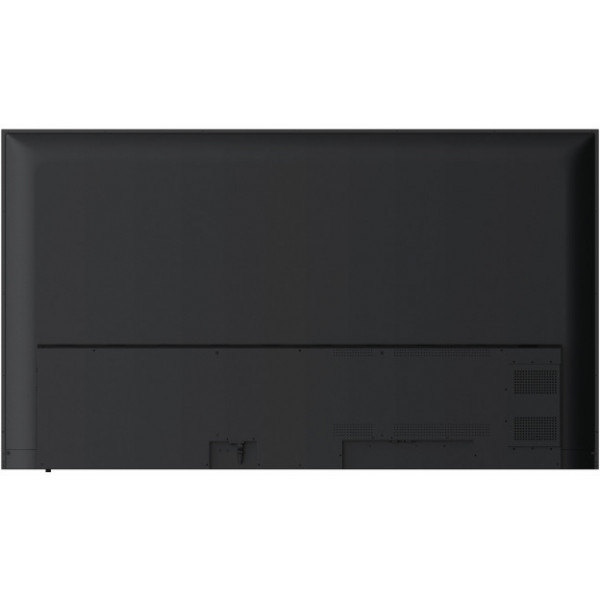

Dimensions & I/O Ports

AC In
Power Switch
Internal Speakers
OPS Slot
WiFi Slot
Menu Controls
VESA^® Wall Mount 400x200mm
SPDIF
HDMI In x 2
DisplayPort
RS232
VGA
Audio In
USB 3.0 Type A (USB Playback)
USB 2.0 Type A x 2 (USB Playback)
Audio Out
LAN

Thông số kỹ thuật

System
GPU: Dual-core MaliG51 MP2
CPU: 2 Dual-core Processors - Cortex A73 + A53 1.4GHz
Kỉ niệm: 3 GB DDR4
Kho lưu trữ: 16 GB eMMC
Sự bảo đảm: 3-year limited warranty on parts, labor and backlight, onsite warranty
Hiển thị
Kích thước bảng điều khiển: 65"
Loại / Công nghệ: TFT LCD Module. IPS type, DLED backlight
Khu vực hiển thị (mm): 1428.48(H) × 803.52(V) (65" diagonal)
Độ phân giải gốc: 3840 x 2160
Tỷ lệ khung hình: 16:9
Colors: 1.07G colors
Công nghệ hình ảnh: Cinema SuperColor™
Độ sáng: 450 nits (typ.)
Độ tương phản: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Tần số quét: 120Hz
Thời gian đáp ứng: 8 ms
Góc nhìn: H = 178, V = 178 typ.
Tuổi thọ đèn nền: 30,000 Hours (min)
Xử lý bề mặt: Anti-glare, 3H hardness, Haze 25%
Bezel: Slim
Hướng: Landscape

INPUT
HDMI: x2
RGB / VGA: x1
DisplayPort: x1
Âm thanh: x1 (3.5mm)
RS-232: x1
OPS Slot: x1 (Optional Intel OPS VPC12-WPO)
WiFi Slot: x1 (Optional WiFi module LB-WIFI-001)
OUTPUT
Âm thanh: x1 (3.5mm)
SPDIF: x1 (Fiber)
LAN
RJ45: x1
USB
Loại A: 2.0 Type A : x 2 (USB Playback)
3.0 Type A : x 1 (USB Playback)
LOA
Max. 16Wx2
COMPATIBILITY
PC RGB / PC HDMI: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
Phiên bản Android: Android 8.0
POWER
Vôn: 100V-240V,50/60Hz (AC)
Sự tiêu thụ: Normal 97 W, Max 300 W
ERGONOMICS
Giá treo tường (VESA®): 400x200 mm
OPERATING CONDITIONS
Nhiệt độ (º C): 0 to 40°C
Độ ẩm: 20% ~ 80% non-condensing
KÍCH THƯỚC (Rộng x Cao x Dày)

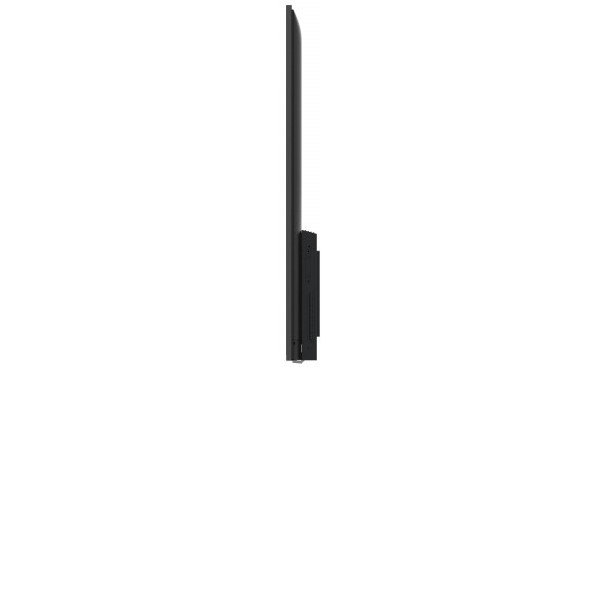

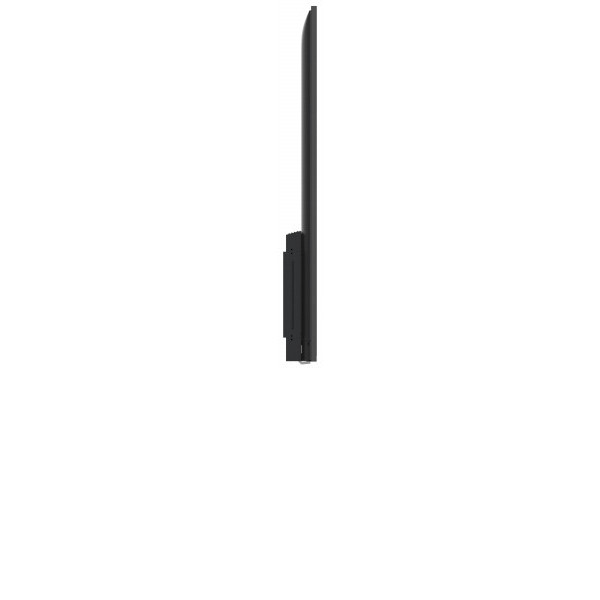

Kích thước (inch / mm): 57.11 x 32.60 x 3.09 in/ 1450.6 x 828.1 x 78.5 mm
Bao bì (inch / mm): 63.19 x 37.99 x 8.66 in/1605 x 965 x 220 mm
WEIGHT
Khối lượng tịnh (lb / kg): 22.95 kg / 50.59 lbs (w/o stand)
Tổng (lb / kg): 33.6 kg/74.07 lbs
REGULATIONS
cULus, FCC, Energy Star, EPEAT,MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
NỘI DUNG GÓI
1. CDE6520 presentation display
2. Remote control with batteries
3. Quick start guide
4. Power cables (1.5M)
5. HDMI cables x2 (1.5M/3M)
6. Wall mount screw
7. RS232 adapter
