WMK-047-2
- Total loading weight up to 352 lbs / 160 kg
- Wall mount dimension support up to 900 x 600 mm
- M8 type screws
- Slide-in plate for use with external mini PC for VESA standard 75x75/100x100 device

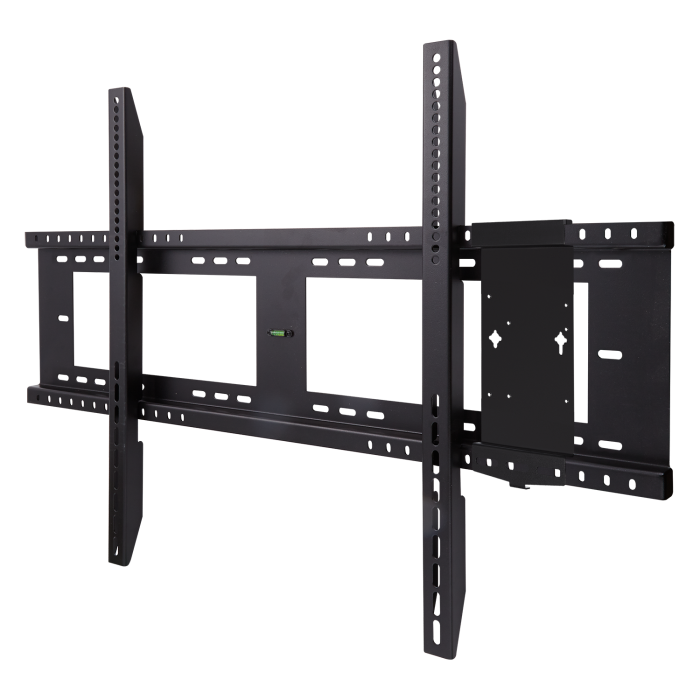

Product Overview
Commercial display wall mount 200x200, 200x400, 200x600, 400x200, 400x400, 400x600, 600x200, 600x400, 600x600, 800x200, 800x400, 800x600, 900x200, 900x400, 900x600 up to 352lbs with mini PC bracket.*
*Mini PC bracket is included with the WMK-047-2 wall mount.
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Extend_Your_Display_1238x1102_1.jpg)
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Extend_Your_Display_1238x1102_1.jpg)
Extend Your Display
Mounted and installed displays extend only 1.8" from the wall.
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_VESA_Configurations_WMK-047-2_1238x1102.jpg)
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_VESA_Configurations_WMK-047-2_1238x1102.jpg)

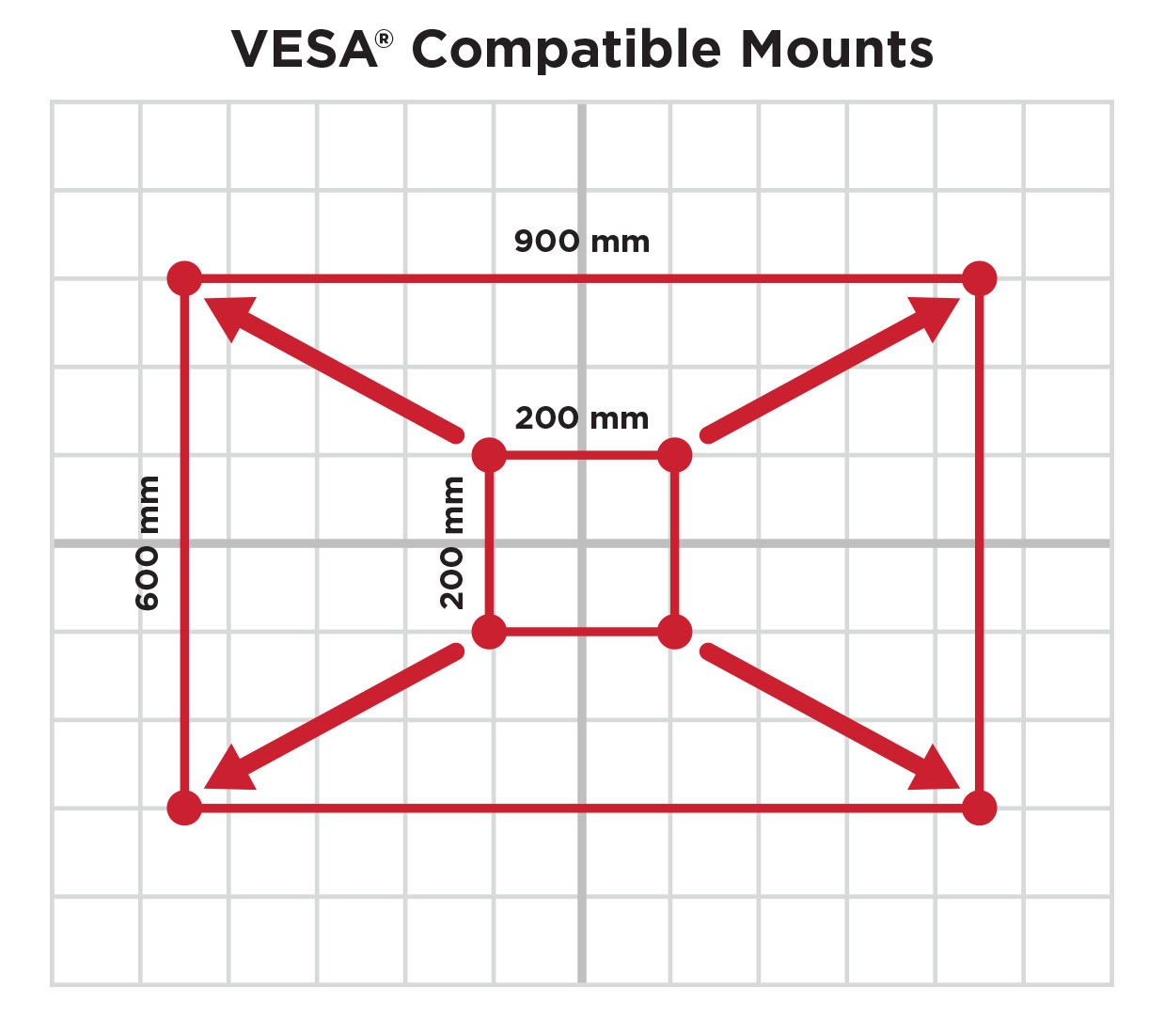

VESA Configurations
Supports VESA patterns: 200 x 200 mm to 900 x 600 mm
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Secure_Placement_1238x1102.jpg)
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Secure_Placement_1238x1102.jpg)
Secure Placement
A reinforced security bar keeps your display firmly anchored to the wall.
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Mini_PC_Compatible_1238x1102.jpg)
![usb-c cable delivering 90W of power](https://www.viewsonic.com/media/wysiwyg/23DIG-ENT1124-RC-WMK_Mini_PC_Compatible_1238x1102.jpg)
Compatible With Mini PCs
Add in an external mini PC using the slide-in plate. This plate is compatible with 75 x 75 mm to 100 x 100 mm VESA configurations.
![UL 2442 Compliant, Underwriters Laboratories Safety Standards](https://www.viewsonic.com/media/wysiwyg/ul2442_cert_450w.jpg)
![UL 2442 Compliant, Underwriters Laboratories Safety Standards](https://www.viewsonic.com/media/wysiwyg/ul2442_cert_450w.jpg)
UL 2442 Compliant
ViewSonic is dedicated to developing products that maximize safety while meeting user needs. This product is compliant with the UL (Underwriters Laboratories) 2442 standard for Wall- and Ceiling-Mounts and Accessories. As such, this item meets or exceeds safety standards in the following tested categories: Loading, Temperature, Stress test, and Sharp edges.
-
Weight Capacity: 352 lbs
-
Wireless Connectivity: N/A
-
Packaging (in.): 40.0 x 11.2 x 2.6
-
Physical (in.): 37.8 x 25.6 x 1.8
-
Packaging (mm): 1015.0 x 285.0 x 65.0
-
Physical (mm): 960.0 x 650.0 x 46.0
-
Net (lbs): 14.1
-
Gross (lbs): 15.4
-
Warranty: One-year limited warranty
-
Package Contents: Plate x 2, Trestle x 2, Installation Guide x 1, Screw x 29, Washer x 10, Plastic bolt x 10
-
Weight Capacity: 352 lbs
-
Wireless Connectivity: N/A
-
Packaging (in.): 40.0 x 11.2 x 2.6
-
Physical (in.): 37.8 x 25.6 x 1.8
-
Packaging (mm): 1015.0 x 285.0 x 65.0
-
Physical (mm): 960.0 x 650.0 x 46.0
-
Net (lbs): 14.1
-
Gross (lbs): 15.4
-
Warranty: One-year limited warranty
-
Package Contents: Plate x 2, Trestle x 2, Installation Guide x 1, Screw x 29, Washer x 10, Plastic bolt x 10
-
Quick Start Guide
- WMK-047-2 Quick Start Guide
-
Technical Document
- WMK-047-2 2D drawing(pdf)
-
