TD1711 - 17" Display, TN Panel, 1280 x 1024 Resolution

Resistive Touch Technology
MEGA Dynamic Contrast Ratio
Control Multiple Devices
Ergonomic Design

Downloads

Datasheet Media

Add to Compare

Skip to the beginning of the images gallery

Product Overview

The TD1711 is a 17” 5:4 aspect ratio monitor with resistive touch technology. With a robust, pressure-sensing touchscreen that is resistant to screen contamination, the TD1711 is ideal for use in retail, POS, and commercial environments. Resistive touch technology on the TD1711 is also fully functional in gloved environments and compatible with styluses. Featuring 20M:1 MEGA Dynamic Contrast Ratio, the TD1711 delivers extremely sharp and crisp images. Flexible connectivity options include VGA, HDMI with CEC, RS232, and USB ports. A VESA-mountable design offers additional convenience for use as a wall-mounted display. Industry-leading warranty protection and ViewSonic product quality makes this durable touch display a great long-term investment for a variety of environments.

Overview

Resistive Touch Technology

With resistive touch technology, this monitor features a robust, pressure-sensing touchscreen that is resistant to dust and water, making it ideal for use in retail, POS, and commercial environments. Because non-conductive inputs can be used, this display is also fully functional in gloved environments and compatible with styluses.

MEGA Dynamic Contrast Ratio

A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.

Control Multiple Devices

RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

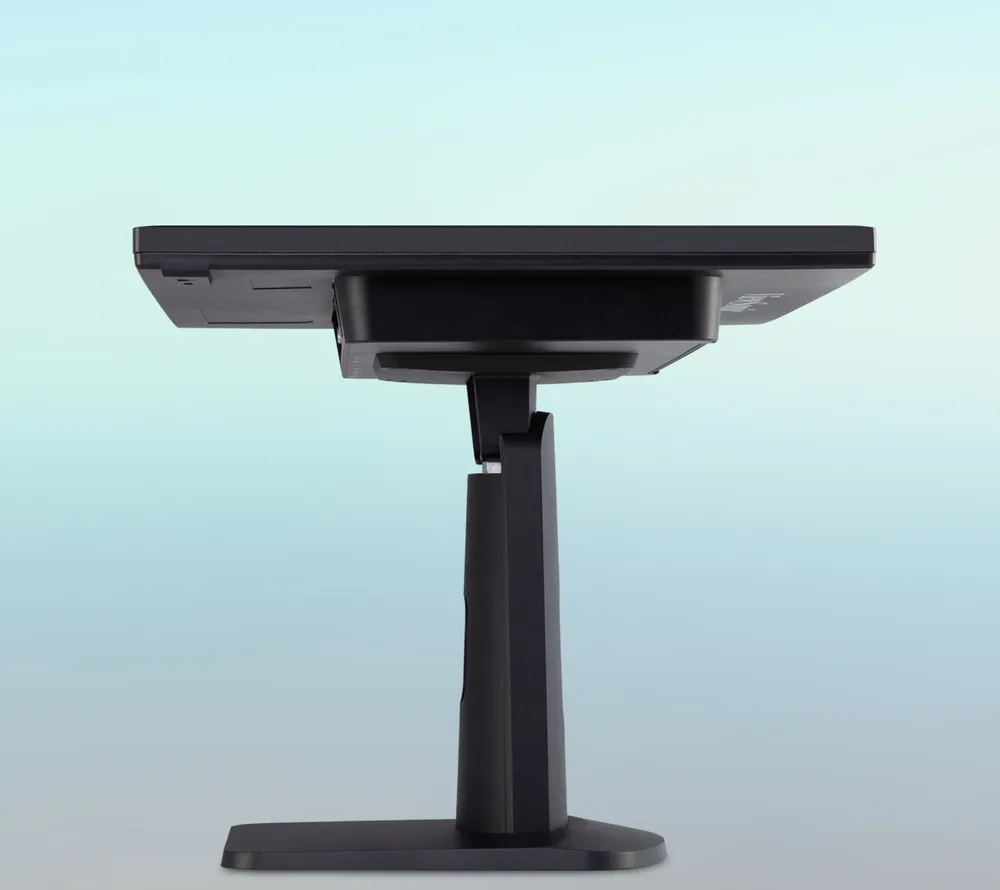

Ergonomic Design

An advanced ergonomic stand allows the screen to be tilted up to 90° flat. This sturdy ergonomic design makes this display well suited as a touch kiosk in a variety of public environments.

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.*

*Subject to ViewSonic's warranty and on-site service terms and conditions.

Awards

Specifications

Screen Size: 17
Viewable Area (in.): 17
Panel Type: TN
Display Resolution: 1280 x 1024
Static Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 20,000,000:1
Light Source: WLED
Brightness: 250 cd/m2
Colors: 16.7M
Color Space Support: 6 bits + Hi FRC
Aspect Ratio: 5:4
Response Time (Typical GTG): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30,000
Panel Surface: Hard coating (3H), Haze 8% or below
Refresh Rate: 60Hz
PC Resolution (max): 1280 x 1024
USB Type A: 2
USB Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
VGA: 1
HDMI 1.4 (with CEC): 1
RS232 In: 1
Touch Technology: Resistive
Touch Points: 1-Point Touch
Internal Speakers: 1W (x2)
Eco Mode (Conserve): 10.1W
Eco Mode (optimized): 11.4W
Consumption (typical): 12.6W
Consumption (max): 17W
Voltage: AC 100-240V (universal), 50-60Hz
Stand-by: 0.3W
Power Supply: Internal
Cable Organization: No
Kensington Lock Slot: 1
Physical Controls: 1, 2, 3, 4, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-90%
VESA Compatible: 100 x 100 mm
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Digital Sync: TMDS
Tilt (Forward/Back): 5º / 90º
Net (lbs): 8.6
Net Without Stand (lbs): 6.0
Gross (lbs): 11.7
Net (kg): 3.9
Net Without Stand (kg): 2.7
Gross (kg): 5.3
Packaging (in.): 17.7 x 16.3 x 6.8
Physical (in.): 14.5 x 13.7 x 8.2
Physical Without Stand (in.): 14.5 x 12.4 x 1.9
Packaging (mm): 450.0 x 415.0 x 172.0
Physical (mm): 368.7 x 347.6 x 208.0
Physical Without Stand (mm): 368.7 x 314.4 x 46.9
Regulations: cTUVus, FCC-B, ICES003, Energy Star 7.1, EPEAT, TUV Mexico CoC, Mexico Energy
Package Contents: TD1711 Display, Power Cable, VGA Cable, USB Cable, Audio Cable, Quick Start Guide
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

Screen Size: 17
Viewable Area (in.): 17
Panel Type: TN
Display Resolution: 1280 x 1024
Static Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 20,000,000:1
Light Source: WLED
Brightness: 250 cd/m2
Colors: 16.7M
Color Space Support: 6 bits + Hi FRC
Aspect Ratio: 5:4
Response Time (Typical GTG): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30,000
Panel Surface: Hard coating (3H), Haze 8% or below
Refresh Rate: 60Hz

PC Resolution (max): 1280 x 1024

USB Type A: 2
USB Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
VGA: 1
HDMI 1.4 (with CEC): 1
RS232 In: 1

Touch Technology: Resistive
Touch Points: 1-Point Touch

Internal Speakers: 1W (x2)

Eco Mode (Conserve): 10.1W
Eco Mode (optimized): 11.4W
Consumption (typical): 12.6W
Consumption (max): 17W
Voltage: AC 100-240V (universal), 50-60Hz
Stand-by: 0.3W
Power Supply: Internal

Cable Organization: No
Kensington Lock Slot: 1

Physical Controls: 1, 2, 3, 4, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-90%

VESA Compatible: 100 x 100 mm

Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz

Digital Sync: TMDS

Tilt (Forward/Back): 5º / 90º

Net (lbs): 8.6
Net Without Stand (lbs): 6.0
Gross (lbs): 11.7

Net (kg): 3.9
Net Without Stand (kg): 2.7
Gross (kg): 5.3

Packaging (in.): 17.7 x 16.3 x 6.8
Physical (in.): 14.5 x 13.7 x 8.2
Physical Without Stand (in.): 14.5 x 12.4 x 1.9

Packaging (mm): 450.0 x 415.0 x 172.0
Physical (mm): 368.7 x 347.6 x 208.0
Physical Without Stand (mm): 368.7 x 314.4 x 46.9

Regulations: cTUVus, FCC-B, ICES003, Energy Star 7.1, EPEAT, TUV Mexico CoC, Mexico Energy
Package Contents: TD1711 Display, Power Cable, VGA Cable, USB Cable, Audio Cable, Quick Start Guide
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
