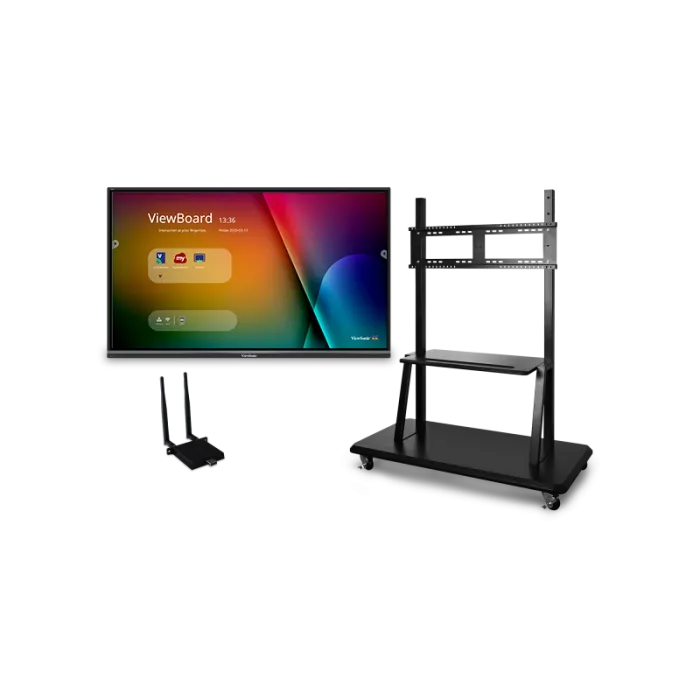

IFP8650-E2 - 86" 4K Touch Enabled ViewBoard Smart Display with WiFi Adapter and Mobile Trolley Cart
Product Overview
myViewBoard™ Digital Whiteboarding Solution
myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.
ViewBoard® Cast Content
Sharing Software
ViewBoard® Cast enables content to be streamed from mobile devices onto the display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display.
myViewBoard Manager
myViewBoard™ Manager is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel.
Learn More
Enhanced Sound
An integrated 40W soundbar and subwoofer delivers incredible audio to every corner of the classroom.
SmartPort USB™
The ViewSonic SmartPort USB function allows devices to be plugged into any video source on the display, while still providing simultaneous access to the display’s front-facing USB ports.
USB-C with Power Delivery
This device easily connects to a PC, laptop or Chromebook via USB-C. In addition, USB-C connectivity provides up to 65W power delivery for convenient charging of your peripherals and accessories.
Rolling Mobile Cart
Featuring a convenient storage tray and an included mounting bracket, the VB-STND-001 is a mobile cart ideal for ViewSonic commercial displays, and ViewBoard interactive flat panel displays. This product is ADA compliant.
All-in-One Solution
Perfect for education environments, this ViewBoard bundle delivers the most useful items classrooms need to get up and running with their ViewBoard display. You can quickly install the ViewBoard display with the included trolley cart, while the included plug-in module provides fast wireless internet connection.
Enhanced Viewing Comfort
This display is TUV-certified for low blue light emission to reduce eye fatigue and strain. Flicker-free technology also helps to deliver more comfortable long-term viewing.
ENERGY STAR Certification
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
Versatile Connectivity
A 4K HDMI output, multiple HDMI inputs, and multiple USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.
Peace of Mind
Enjoy peace of mind with an industry-leading warranty and robust support services
- OS: ViewBoard OS (embedded Android 8)
- GPU: ARM Mali-G51
- CPU: ARM Quad Core A73 + A53
- CPU Processor Speed: A73: 1.1GHz, A53: 1.5GHz
- Memory: 2GB
- Storage: 16GB
- Built-in Software: myViewBoard, Chromium browser, Zoom, ViewBoard Cast
- Subwoofer: 16W (x1)
- Internal Speakers: 12W (x2)
- HDMI 2.0 In: 3
- VGA: 1
- DisplayPort: 1
- Composite RCA: 1
- 3.5mm Audio In: 1
- 3.5mm Audio Out: 1
- SPDIF Audio Out: 1
- USB 3.0: 4
- USB 2.0: 3
- Slot-in PC Slot: 1
- USB B Touch Port: 2
- RS232: 1
- Ethernet LAN (RJ45): 1
- WIFI Module Slot: 1
- Intel® OPS Slot In (80-pin): 1
- Voltage: 100-240 VAC
- Consumption (max): 350W
- Consumption (typical): 155W
- Stand-by: <0.5W
- On Screen Display: Input, Volume, Backlight, Audio, Screen, Display, Adjust
- Remote Control: Volume, Channel, Source, Mute, Back, Input, Menu
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 10-90%
- Tip Detection: Dual tips, 2.5mm and 8mm
- Touch Points: 40-Point Touch
- Touch Technology: Infrared
- Net (lbs): 268.0
- Gross (lbs): 347.7
- Net (kg): 117.6
- Gross (kg): 147.7
- Packaging (in.): 87.0 x 53.1 x 14.9
- Physical (in.): 78.3 x 46.7 x 29.5
- Packaging (mm): 2211.0 x 1380.0 x 380.0
- Physical (mm): 1988.0 x 1186.0 x 750.0
- VESA Compatible: 800 x 600 mm
- Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: IFP8650 Display, wireless AC adapter, VB-STND-001, stylus pen x 2, power cable, remote control with batteries, ViewSonic Wizard CD (User Guide), Quick Start Guide, USB cable, camera bracket, HDMI cable, power cords
- Regulations: cTUVus, FCC, ENERGY STAR 7.0, Mexico Energy, CE, CB, RoHS, ErP, WEEE
- Ethernet LAN: (10/100/1000M) (Android 10/100, PC 10/100/1000)
- Display Type: LCD
- Screen Size: 86
- Viewable Area (in.): 86
- Point technology: 40-Point
- Backlight Life (Hours): 50,000
- Viewing Angles: 178º horizontal, 178º vertical
- Display Resolution: 3840 x 2160
- Response Time (Typical GTG): 8ms
- Panel Surface: Anti-glare 7H tempered glass
- Light Source: LED
- Brightness: 350 cd/m2
- Static Contrast Ratio: 1,200:1
- Refresh Rate: 60Hz
-
