  • LDM216-251 - 216” All-in-One Mainstream Full HD Direct View LED Display
SKU
LDM216-251

LDM216-251 - 216” All-in-One Mainstream Full HD Direct View LED Display

  • High-Impact Messaging
  • Simple and Easy Setup
  • Amazing Audio-Visual Experience
  • Device Management Made Easy
  • Easy Maintenance
Downloads
Datasheet Media
Add to Compare

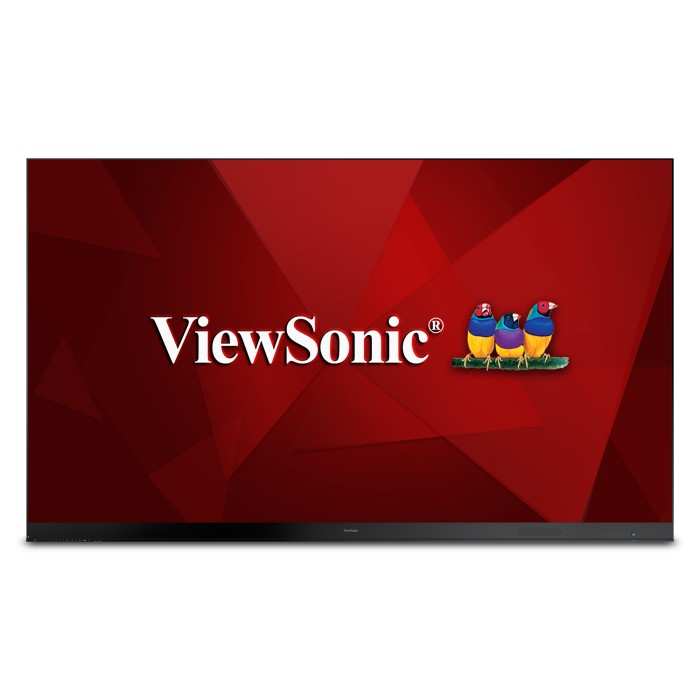

main product photo

Product Overview

The ViewSonic® LDM216-251 is an innovative All-in-One Direct View LED display. With a huge 216” screen size, the LDM216-251 is built to impress as a centerpiece in any conference room, boardroom, or lobby. Along with its immense screen size, this display delivers stunning visuals with Full HD resolution, 2.5mm fine pixel pitch, 600-nit high brightness, 3,840Hz ultra-fast refresh rate, and 120% Rec.709 wide color gamut. What’s more, its ultra-slim 35mm thickness and bezel-free design delivers sleek looks whether its hanging on a wall or mounted on an optional aluminum floor stand. Despite its huge screen size, a front-assembly modular design enables easy delivery, installation, and maintenance. And with remote configuration and content management system support, the ViewSonic LDM1216-2511 is also suitable for a wide array of diverse signage applications.
a large format display in front of a crowd of empty chairs next to a podiuma large format display in front of a crowd of empty chairs next to a podium

High-Impact Messaging

With a huge screen size and ultra-narrow bezel, this display’s sleek and minimalist design seamlessly delivers content without lines or distortion for a more immersive visual experience.

a large format direct view led with individual panels being replaceda large format direct view led with individual panels being replaced

Simple and Easy Setup

From the LED tiles, to the AV hardware and software, power supplies and cables, this all-in-one solution includes everything you need in one box for streamlined installation.

a woman playing a violin on a large format direct view led displaya woman playing a violin on a large format direct view led display

Amazing Audio-Visual Experience

Enjoy stunning images thanks to immersive Full HD resolution, a 120% Rec. 709 wide color gamut and 600 nits of brightness. Built-in stereo speakers deliver crystal-clear sound to complete the audio-visual experience.

a man working on a laptop alongside a direct view led display being shown in a number of different settingsa man working on a laptop alongside a direct view led display being shown in a number of different settings

Device Management Made Easy

The included myViewBoard Manager™ software is a cloud-based management solution that empowers IT administrators to remotely monitor devices, manage apps, push out broadcasts and more within the myViewBoard ecosystem. myViewBoard Manager lets IT administrators seamlessly monitor and maintain individual displays across large organizations from a single control panel. For additional functionality, you can upgrade to myViewBoard Manager Advanced software.

a close up of the replaceable panels o the direct view led displaya close up of the replaceable panels o the direct view led display

Easy Maintenance

A modular design features swappable LED tiles that can be easily maintained with minimal downtime. Simply remove the old panel and replace with a new panel that has been pre-calibrated for color, brightness and uniformity.

  • OS: Android 8.0
  • CPU: Hi3751 V811
  • Memory: 4GB DDR4
  • Storage: 32GB (26GB available)
  • Internal Speakers: 5W (x2)
  • PC Resolution (max): 1920x1080
  • Mac® Resolution (max): 1920x1080
  • HDMI 1.4 (with HDCP 1.4): 2
  • HDMI 1.4 Out (with HDCP 1.4): 1
  • 3.5mm Audio Out: 1
  • USB 3.0: 1
  • USB 2.0: 2
  • USB 2.0 Type B: 1
  • RS232: 1
  • Ethernet LAN (RJ45): 1
  • IR in: 1
  • Intel® OPS Slot In (80-pin): 1
  • Voltage: 100-240V+/- 10%, (100-120V/30A, 50/60Hz ; 220-240V/15A)
  • Consumption (max): 4900W
  • Consumption (typical): 3430W
  • Stand-by: <0.5W
  • Temperature: 32-104º F (0 - 40º C)
  • Humidity (non-condensing): 20-80%
  • Net (lbs): 750
  • Gross (lbs): 992
  • Net (kg): 340
  • Gross (kg): 450
  • Packaging (in.): 109.4 x 33.5 x 40.2
  • Physical (in.): 189.8 x 110.9 x 1.4
  • Physical with Wall Mount (in.): 189.8 x 110.9 x 2.2
  • Packaging (mm): 2780.0 x 850.0 x 1020.0
  • Physical (mm): 4820.95 x 2818.45 x 35.0
  • Physical with Wall Mount (mm): 4820.95 x 2818.45 x 56.0
  • Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
  • Display Type: Direct View LED
  • Screen Size: 216
  • Viewable Area (in.): 216
  • Orientation: Landscape
  • Light Source: Fine Pixel Pitch LED
  • LED Pitch Size (mm): 2.5
  • LED Grayscale: 14 bits
  • Display Resolution: 1920 x 1080
  • Refresh Rate: 3,840Hz
  • Aspect Ratio: 16:9
  • Static Contrast Ratio: 6,000:1
  • Backlight Life (Hours): 100,000
  • Brightness: 600-nit
  • Viewing Angles: 160º horizontal, 160º vertical
  • OS: Android 8.0
  • CPU: Hi3751 V811
  • Memory: 4GB DDR4
  • Storage: 32GB (26GB available)
  • Internal Speakers: 5W (x2)
  • PC Resolution (max): 1920x1080
  • Mac® Resolution (max): 1920x1080
  • HDMI 1.4 (with HDCP 1.4): 2
  • HDMI 1.4 Out (with HDCP 1.4): 1
  • 3.5mm Audio Out: 1
  • USB 3.0: 1
  • USB 2.0: 2
  • USB 2.0 Type B: 1
  • RS232: 1
  • Ethernet LAN (RJ45): 1
  • IR in: 1
  • Intel® OPS Slot In (80-pin): 1
  • Voltage: 100-240V+/- 10%, (100-120V/30A, 50/60Hz ; 220-240V/15A)
  • Consumption (max): 4900W
  • Consumption (typical): 3430W
  • Stand-by: <0.5W
  • Temperature: 32-104º F (0 - 40º C)
  • Humidity (non-condensing): 20-80%
  • Net (lbs): 750
  • Gross (lbs): 992
  • Net (kg): 340
  • Gross (kg): 450
  • Packaging (in.): 109.4 x 33.5 x 40.2
  • Physical (in.): 189.8 x 110.9 x 1.4
  • Physical with Wall Mount (in.): 189.8 x 110.9 x 2.2
  • Packaging (mm): 2780.0 x 850.0 x 1020.0
  • Physical (mm): 4820.95 x 2818.45 x 35.0
  • Physical with Wall Mount (mm): 4820.95 x 2818.45 x 56.0
  • Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
  • Display Type: Direct View LED
  • Screen Size: 216
  • Viewable Area (in.): 216
  • Orientation: Landscape
  • Light Source: Fine Pixel Pitch LED
  • LED Pitch Size (mm): 2.5
  • LED Grayscale: 14 bits
  • Display Resolution: 1920 x 1080
  • Refresh Rate: 3,840Hz
  • Aspect Ratio: 16:9
  • Static Contrast Ratio: 6,000:1
  • Backlight Life (Hours): 100,000
  • Brightness: 600-nit
  • Viewing Angles: 160º horizontal, 160º vertical
