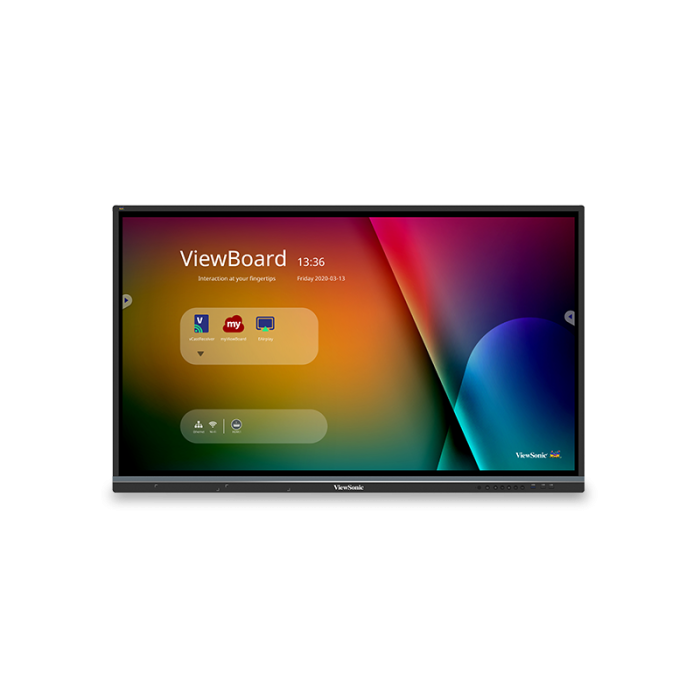

IFP6550 - 65" 4K Touch Enabled ViewBoard Smart Display

ULTRA HD RESOLUTION: 65 Inch 4K Ultra HD (3840x2160p) interactive display
ADVANCED TOUCH: 20-point multi-touch lets users write on the display with their fingers and stylus pens
INTEGRATED SOFTWARE: The myViewBoard suite includes Whiteboard, ViewBoard Cast, and more for better engagement
BETTER SOUND: Built-in 45W stereo soundbar delivers optimal sound
FLEXIBLE CONNECTIVITY: Powerful quad-core processor and versatile connectivity options (HDMI,VGA, RJ45, and USB ports)
REMOTE MANAGEMENT: Schedule updates and monitor device status with the built-in myViewBoard® Manager software
PEACE OF MIND: Industry-leading 3-year standard warranty with optional extensions and robust support services

Comparison Sheet (PRG)

| Datasheet | Media

Product Overview

Featuring 4K Ultra HD resolution and an advanced, next-generation touchscreen, the ViewSonic^® ViewBoard^® IFP6550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With integrated myViewBoard^® annotation software and ViewBoard Cast streaming software, content creation and sharing has never been easier. What’s more, this ENERGY STAR certified display delivers optional slot-in PC capability for more computing-intensive interactive applications. A VESA-compatible design allows for installation on a wall mount, or on an optional trolley cart for more flexible installation in classrooms and meeting rooms.

Overview

Enhanced Touchscreen Performance

Thanks to ViewSonic ultra-fine touch technology, this interactive display delivers an ultra-smooth, natural handwriting experience. 20-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time. Dual-tip pen support allows users to simultaneously write or draw with two different colors.*

*Available in Whiteboard for Windows and Android only.

myViewBoard^™ Digital Whiteboarding Solution

myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.

Awards

Specifications

OS: ViewBoard OS (embedded Android 8)
GPU: ARM Mali-G51
CPU: ARM Quad Core A73 + A53
CPU Processor Speed: A73: 1.1GHz, A53: 1.5GHz
Memory: 3GB
Storage: 32GB
Subwoofer: 15W (x1)
Internal Speakers: 10W (x2)
HDMI 2.0 In: 3
VGA: 1
Composite RCA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
SPDIF Audio Out: 1
USB 3.0: 4
USB 2.0: 3
Slot-in PC Slot: 1
USB B Touch Port: 2
RS232: 1
Ethernet LAN (RJ45): 1
WIFI Module Slot: 1
Intel® OPS Slot In (80-pin): 1
Voltage: 100-240 VAC
Consumption (max): 350W
Consumption (typical): 104W
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 10-90%
Tip Detection: Dual tips, 3mm and 8mm
Touch Points: Windows: 20, Android: 20
Touch Technology: Infrared
Net (lbs): 88.9
Gross (lbs): 102.6
Net (kg): 40.0
Gross (kg): 47.0
Packaging (in.): 65.7 x 39.8 x 8.8
Physical (in.): 58.6 x 35.3 x 3.5
Packaging (mm): 1669.0 x 1010.0 x 223.0
Physical (mm): 1488.0 x 897.0 x 90.0
VESA Compatible: 600 x 400 mm
Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: IFP6550 display, stylus pen x 2, power cable, HDMI cable, USB cable, remote control with batteries, Camera plate, M8 screw x 8, Quick Start Guide
Regulations: cTUVus, FCC, ENERGY STAR, Mexico Energy, CE, CB, RoHS, ErP, WEEE
Ethernet LAN: (10/100/1000M) (Android 10/100, PC 10/100/1000)
Display Type: LCD
Screen Size: 65
Viewable Area (in.): 65
Point technology: 20-Point
Backlight Life (Hours): 50,000
Viewing Angles: 178º horizontal, 178º vertical
Operation Rating: 16/7
Display Resolution: 3840 x 2160
Aspect Ratio: 16:9
Dynamic Contrast Ratio: 5,000:1
Panel Surface: 9H
Light Source: LED
Brightness: 350 cd/m2
Static Contrast Ratio: 1,200:1
Refresh Rate: 60Hz
