CDE8620-E1 - 86" Display, 3840 x 2160 Resolution, 450 cd/m2 Brightness

Name: CDE8620-E1 - 86" Display, 3840 x 2160 Resolution, 450 cd/m2 Brightness
SKU: CDE8620-E1

| Datasheet | Media

Add to Compare

Product Overview

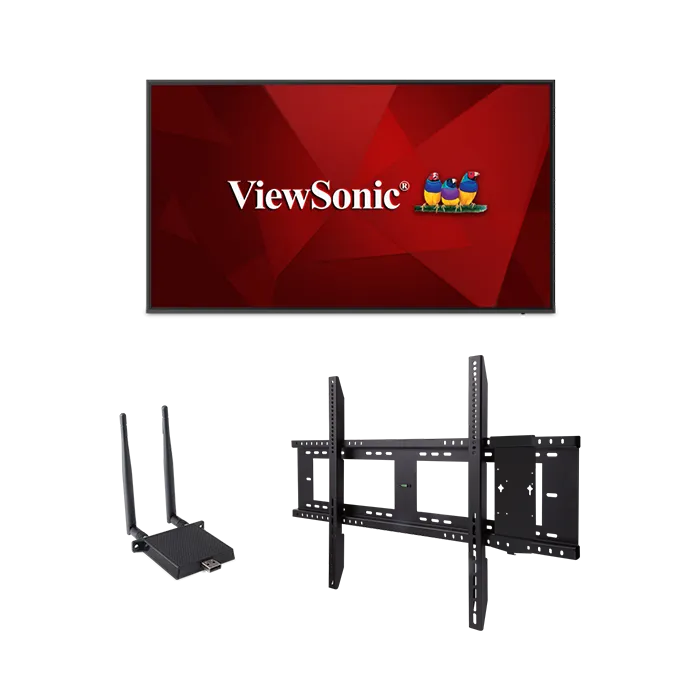

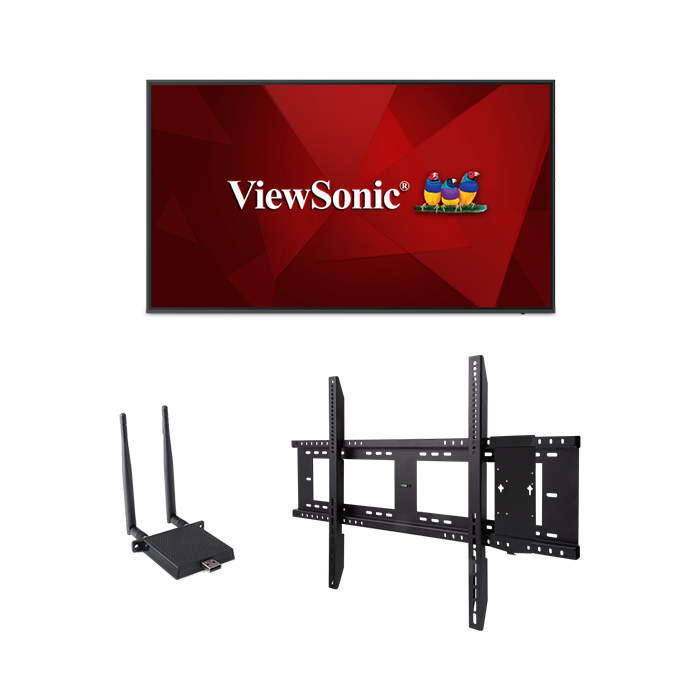

The ViewSonic^® CDE8620-W is a 86” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 16W speakers, and wireless screen sharing, the CDE8620-W transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard^® screen sharing software*, ViewBoard^® Cast (along with the optional ViewSonic^® vCastSender app) and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE8620-W can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic^® CDE8620-W is also suitable for a wide array of diverse signage applications.. Bundle includes CDE8620-W display, USB Wi-Fi adapter and wall mount. *Chrome, Android, Windows, Mac OS, and iOS compliant

Overview

Ultra HD Resolution

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

AV Control System Certified

The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.

Reliable 24/7 Operation

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

Integrated Content Management System

Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.

3-year Limited Warranty

Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.

Awards

Specifications

OS: Android 8.0
GPU: G51MP2
CPU: Dual CPU - Cortex A73 + A5
CPU Processor Speed: Quad-core, 1.4GHz
Memory: 3GB DDR4
Storage: 16GB
Media Player Type: Media Player
Internal Speakers: 16W (x2)
HDMI 2.0 (with HDCP 2.2): 2
VGA: 1
DisplayPort: 1
3.5mm Audio In: 1
SPDIF Audio Out: 1
USB 3.0: 1
USB 2.0: 2
OPS PC Slot: 1
RS232: 1
Ethernet LAN (RJ45): 1
WIFI Module Slot: 1
Intel® OPS Slot In (80-pin): 1
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption (max): 450W
Consumption (typical): 365W
Stand-by: <0.5W
Temperature: 32-104º F (0 - 40º C)
Humidity (non-condensing): 20-80%
Altitude: 0~9,842 ft (3,000m)
Net (lbs): 111.1
Gross (lbs): 153.9
Net (kg): 50.4
Gross (kg): 69.8
Packaging (in.): 83.4 x 50.1 x 11.0
Physical (in.): 76.0 x 43.7 x 3.2
Packaging (mm): 2118.0 x 1271.0 x 280.0
Physical (mm): 1931.0 x 1109.0 x 82.0
Screw Size: M8
VESA Compatible: 600 x 400 mm
AV Control: AMX Certified, Crestron Certified (Version 1.0), Extron Certified
Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: CDE8620-W, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable, Wall Mount Screws and RS232 cable
Regulations: cULus, FCC, Energy Star, RoHS
Display Type: LCD
Screen Size: 86
Viewable Area (in.): 86
Orientation: Landscape
Colors: 1.07B
Color Space Support: 8 bit+FRC
Backlight Life (Hours): 50,000
Viewing Angles: 178º horizontal, 178º vertical
Display Resolution: 3840 x 2160
Response Time (Typical GTG): 8ms
Aspect Ratio: 16:9
Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
Light Source: DLED
Brightness: 450 cd/m2
Static Contrast Ratio: 1,200:1
Panel Type: IPS-Type
