SKU
CDE5520-W1

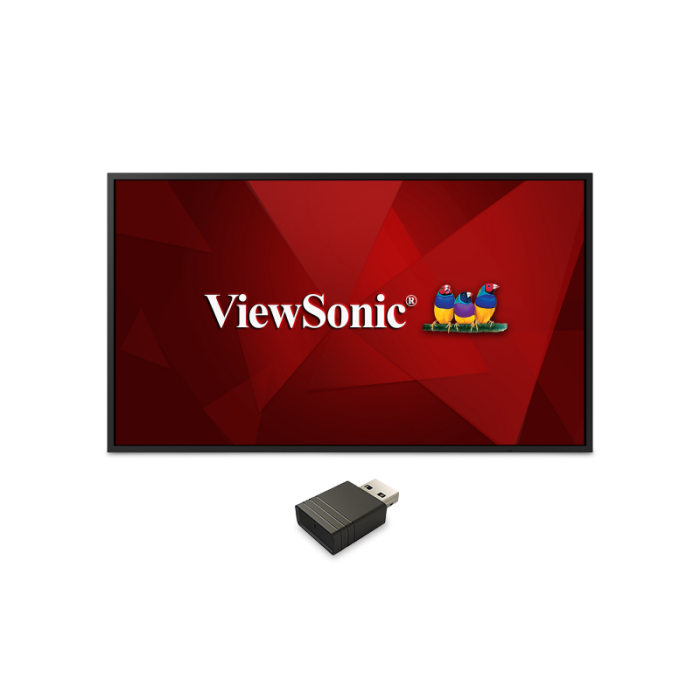

CDE5520-W1 - 55" Display, 3840 x 2160 Resolution, 350 cd/m2 Brightness
Product Overview
The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 350-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE5520 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app) and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. Bundle includes display and USB Wi-Fi adapter.
*Chrome, Android, Windows, Mac OS, and iOS compliant
Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
- OS: Android 8.0
- GPU: G51MP2
- CPU: Dual CPU - Cortex A73 + A5
- CPU Processor Speed: Quad-core, 1.4GHz
- Memory: 3GB DDR4
- Storage: 16GB eMMC
- Media Player Type: Media Player
- Internal Speakers: 10W (x2)
- HDMI 2.0 (with HDCP 2.2): 2
- DVI-D: 1
- RCA Audio Out: 1
- 3.5mm Audio In: 1
- SPDIF Audio Out: 1
- SPDIF: 1
- USB 2.0: 2
- RS232: 1
- Ethernet LAN (RJ45): 1
- IR in: 1
- IR out: 1
- Intel® OPS Slot In (80-pin): 1
- Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
- Consumption (max): 115W
- Consumption (typical): 100W
- Stand-by: <0.5W
- Temperature: 32-104º F (0 - 40º C)
- Humidity (non-condensing): 20-80%
- Altitude: 0~6,560 ft (2,000m)
- Net (lbs): 37.1
- Gross (lbs): 52.8
- Net (kg): 16.8
- Gross (kg): 23.9
- Packaging (in.): 55.9 x 35.8 x 9.7
- Physical (in.): 48.9 x 28.1 x 2.9
- Packaging (mm): 1420.0 x 910.0 x 245.0
- Physical (mm): 1243.2 x 714.0 x 74.8
- Screw Size: M6
- VESA Compatible: 400 x 400 mm
- AV Control: AMX Certified, Crestron Certified, Crestron Certified (Version 1.0)
- Warranty: Three (3) years from the date of first consumer purchase for parts and labor.
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Package Contents: CDE5520, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable and RS232 cable
- Regulations: cULus, FCC, Energy Star, RoHS
- Display Type: LCD
- Screen Size: 55
- Viewable Area (in.): 54.6
- Orientation: Landscape
- Colors: 1.07B
- Color Space Support: 8 bit+FRC
- Backlight Life (Hours): 40,000
- Bezel Width (in.): 0.55
- Bezel Width (mm): 13.9
- Viewing Angles: 178º horizontal, 178º vertical
- Display Resolution: 3840 x 2160
- Response Time (Typical GTG): 9ms
- Aspect Ratio: 16:9
- Panel Surface: Hard Coat - Anti-Glare, 3% Haze, 2H with anti-glare treatment
- Light Source: DLED
- Brightness: 350 cd/m2
- Static Contrast Ratio: 1,200:1
- Panel Type: IPS-Type
