LCD Display

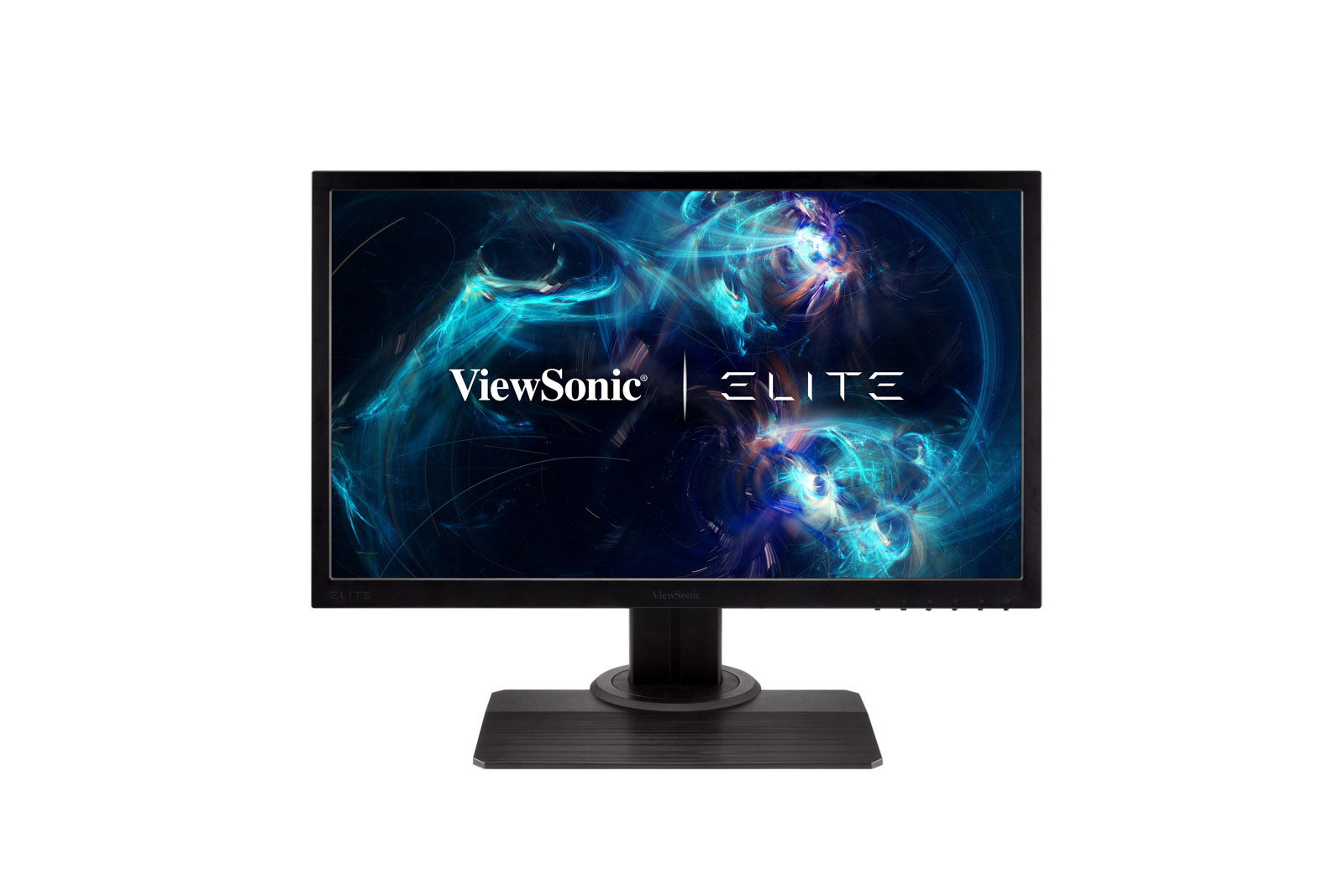

XG240R
Key Features
- ELITE RGB Alliance
- 144Hz refresh rate
- 1ms response time
- Game Mode
- AMD FreeSync™ Premium technology
Product Description
The XG240R is the revamped successor to the ViewSonic XG2402 gaming monitor, integrating RGB accent lighting, and all the performance essentials needed for gamers to play competitively. A 144Hz refresh rate, 1ms response, and fully customisable settings provide all the essential performance specs and features necessary for the modern day competitive gaming environment. The XG240R is also the only 24’’ gaming monitor equipped with ELITE RGB, a unique RGB accent design on the back of the monitor, which can be controlled by other peripheral brands' software. This customised lighting setup will enhance your immersive play and sync up with your other peripherals.
*This monitor is GeForce Driver G-Sync Enable-Ready [Disclaimer].
*This monitor is GeForce Driver G-Sync Enable-Ready [Disclaimer].
Visit Us
- www.viewsonic.com
-
DISPLAY
Monitor Size: 24"W Panel Technology: TN TFT LCD Resolution: Full HD 1920 x 1080 Display Area: 531.4 mm (H) x 0.277 mm (V) Aspect Ratio: 16:9 Brightness: 350 cd/m² Contrast Ratio: 1000:1 (typ) Dynamic Contrast Ratio: 120M:1 Viewing Angles: 170 degree / 160 degree (Typ) Refresh Rate: 144Hz Response Time: GTG : 1ms Backlight: 1 LED light bar Backlight Life: 30000 Hrs (Min) Colours: 16.7M colors Pixel Size: 0.277 mm (H) x 0.277 mm (V) -
INPUT SIGNAL
Frequency: Fh = 15 ~ 160 KHz; Fv = 24 ~ 144 Hz Sync: TMDS,PCI-E -
COMPATIBILITY
PC: Windows 10 certified Mac®: Mac OS Tested -
CONNECTOR
Input: HDMI 1.4 x 2
DisplayPort 1.2 x 1Output: Earphone Out x 1 (3.5mm plug) -
AUDIO
Speaker: 2W x 2 -
USB
Upstream: USB 3.0 Type B x 1 Downstream: USB 3.0 Type A x 2 -
POWER
Power: 3-pin plug (CEE22) x 1 Voltage: AC 100-240V (Universal); 50/60Hz Consumption: 45W (Typ) 50W (Max) Optimize: 36W Conserve: 31W -
MODEL COLOUR
Black -
ERGONOMICS
Tilt: -5 ~ 20 Swivel: -45 ~ 45 Pivot: 0 ~ 90 Height Adjustment: 120 -
WALL MOUNT
VESA®: 100 x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% to 90% (no condensation) -
DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 566 mm (W) x 433.9~530.18 mm (H) x 239 mm (D) Physical without stand (mm): 566 mm (W) x 341 mm (H) x 60 mm (D) Packaging (mm): 640 mm (W) x 396 mm (H) x 207 mm (D) -
WEIGHT
Net with stand: 6.7 Kg Net without stand: 3.4 Kg Gross: 8.5 Kg -
WARRANTY
*Warranty offered may differ from market to market -
PACKAGE CONTENTS
LCD Display
Power Cable (1.5m)
DisplayPort Cable (1.8m)
USB3.0 Cable (1.5m)
Quick Start Guide
