Key Features

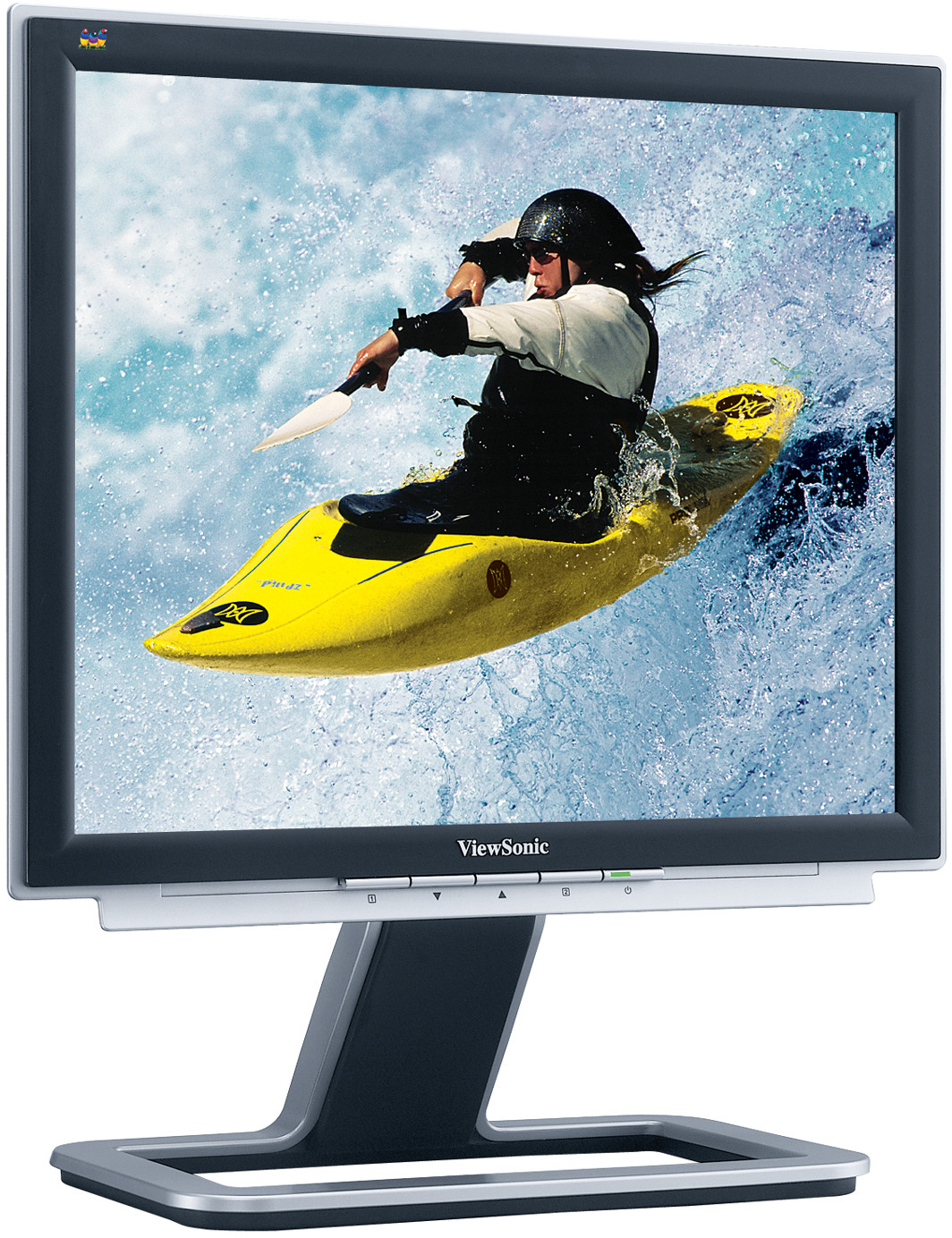

VX924
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 19” colour TFT active matrix SXGA LCD
    Contrast Ratio: 550:1 (typ.)
    Viewing Angles: 140° horizontal, 135° vertical (at 10:1)
    160° horizontal, 160° vertical (at 5:1)
    Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 3ms (grey-to-grey), 4.8ms (off-on-off)
    Panel Surface: anti-glare 3H
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Pixel Clock: 135MHz
    Brightness: 270cd/m²
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (max. 75Hz)
    Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz)
  • DIMENSIONS
    W x H x D mm: 431 x 468 x 201 (with stand)
    431 x 370 x 66 (without stand)
  • PACKAGE CONTENTS
    LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick
    Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • WARRANTY
    Please see:
    www.viewsoniceurope.com/UK/Support/warranty.htm
  • INPUT
    Sync: H/V separate (TTL), composite, sync on green
    Digital: DVI-D (TMDS, 100 ohm)
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
    Frequency: Fh: 30–82kHz, Fv: 50–75Hz
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Power: 3-pin (CEE22)
  • POWER
    Voltage: 100–240V, 50–60Hz (Auto-Switch), internal power
    Consumption: 35W (typ); ≤ 1 watt in power save mode
  • CONTROLS
    OSD: Auto image adjust, contrast, brightness, input select, colour adjust
    (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution,
    H/V frequency, pixel clock, model number, serial number,
    website), manual image adjust (H/V position, H size, fine tune,
    sharpness), setup menu (language, resolution information, OSD
    position, OSD timeout, OSD background), Recall
    Physical: Power on/off, menu, up, down, select
  • OPERATING CONDITIONS
    Temperature: 0°C to 40°C
    Humidity: 10% to 90% (non-condensation)
  • WEIGHT
    Net: 6.7kg (with stand), 5.3kg (without stand)
  • POWER MANAGEMENT
    Meets TCO’99 and Energy Star standards
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
