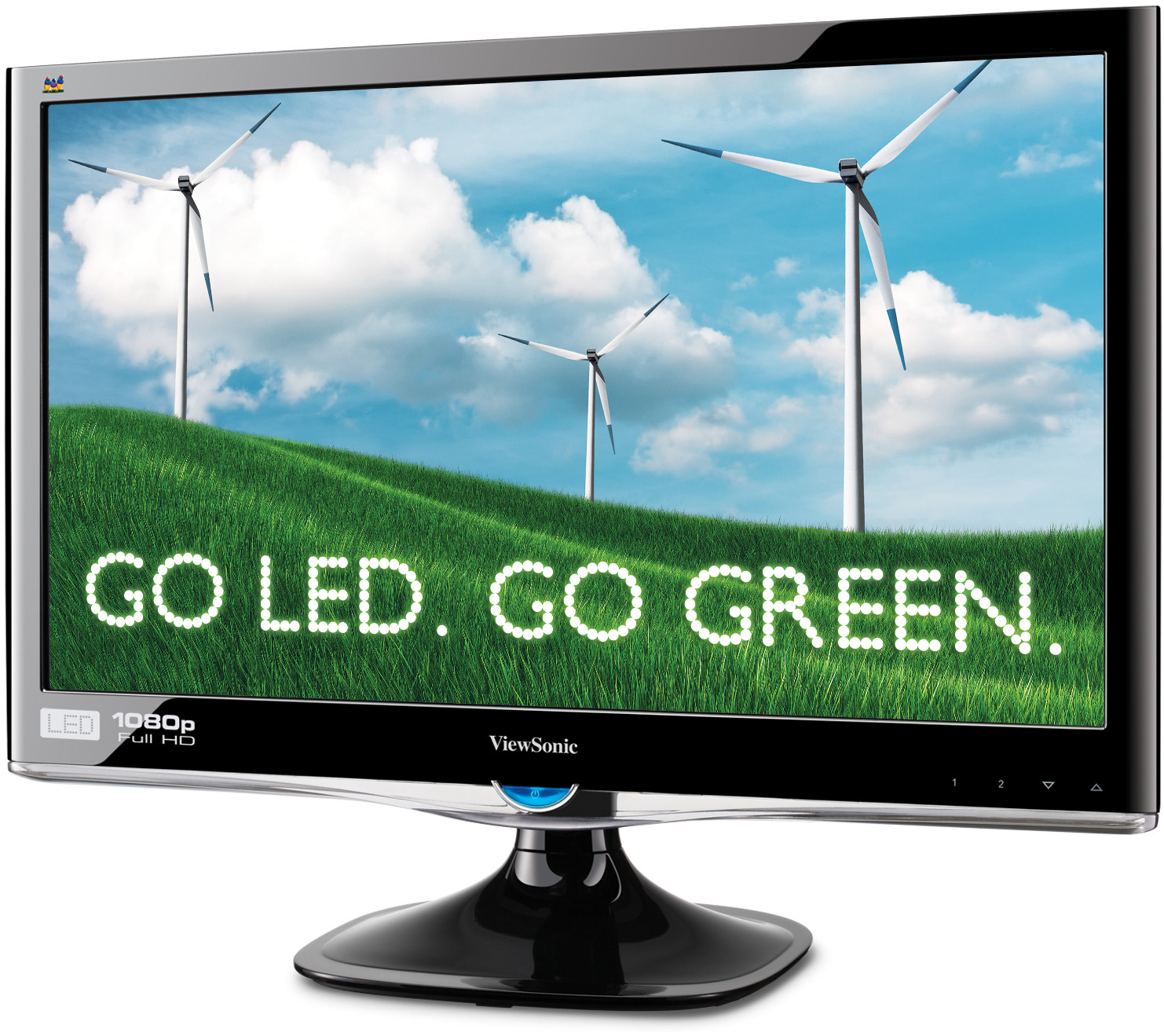

ViewSonic VX2250wm-LED 55cm/21.5" LED DISPLAY

COLORS

Black

LCD

Contrast Ratio:	1000:1 (typical)
Viewing Angles:	170° (H), 160° (V)
Optimum Resolution:	1920×1080
Response Time:	5 (typical)
Light Source:	25,000 hrs (minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.248 x 0.248 (mm)
Colour Support:	16.7 Millions
Size:	55cm/21.5" wide Color TFT Active Matrix LCD 16:9 aspect ratio
Brightness:	250 (typical)
Dynamic Contrast Ratio:	20,000,000:1

COMPATIBILITY

PC: VGA up to 1920×1080 Non Interlaced

Mac®: 1920×1080 Non Interlaced
DIMENSIONS

Physical With Stand: 521.2 1x 403.71 x 189.98 (mm)
INPUT

Sync: Separate Sync / Composite Sync / SOG

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–83kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: 1×DVI-D(Supported HDMI ver.1.3 spec/Display port 11spec with suitable adaptor)

Power: 3.5mm jack

Audio: Built-in power Adapter, 3-Pin plug
POWER

Voltage: AC 100-240V (Universal); 50/60Hz(Switch)

Consumption: 26W (typical) w/o Audio, 38W (max full loading)

Save Mode (W): <=0.1W

CONTROLS

Basic:

[1], [2], Power, Down[▼], Up[▲]

OSD:

Auto Image Adjust, Contrast/Brightness, Input Select: D-SUB, DVI, Color Adjust sRGB,
9300K, 7500K, 6500K, 5000K, User Color [R, G, B]Information Manual Image Adjust, H/V
Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time,
Aspect Ratio , ECO Mode Setup Menu: Language, Resolution Notice, OSD Position,
OSD Timeout, OSD Background, Auto Power Off,
Memory Recall: [ 1 ] : Main Menu [ 2 ] : Input Select

VESA® MOUNT

100 × 100
AUDIO

Speakers: 2w ×2
WEIGHT

Net: 3.5kg /7.7lb
OPERATING CONDITIONS

Humidity: 20 - 90 (%)

Temperature: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	1920×1080 Non Interlaced

Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency:	24–83kHz / 50–75Hz

Analogue:	1×15 pin mini D-sub
Digital:	1×DVI-D(Supported HDMI ver.1.3 spec/Display port 11spec with suitable adaptor)
Power:	3.5mm jack
Audio:	Built-in power Adapter, 3-Pin plug

Voltage:	AC 100-240V (Universal); 50/60Hz(Switch)
Consumption:	26W (typical) w/o Audio, 38W (max full loading)
Save Mode (W):	<=0.1W

Humidity:	20 - 90 (%)
Temperature:	0 - 40 (°C) / 32 - 104 (°F)
