Key Features

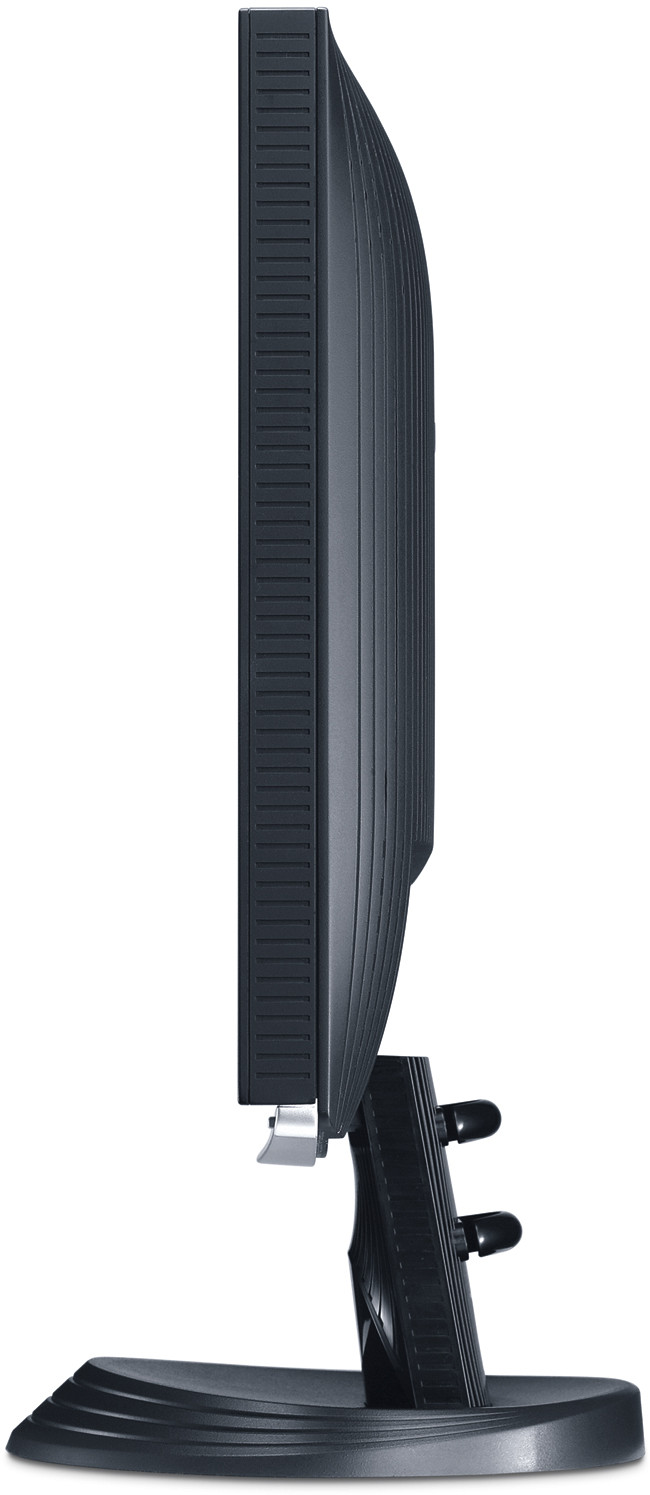

VX1940w-3
Product Description
ViewSonic’s 49 cm / 19" VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 20000:1 DYNAMIC CONTRAST RATIO and 1680X1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES PRODUCTIVITY by allowing you to view two documents side-by-side or to work in two applications without toggling. The Kensington® security port provides theft deterrence and the OSD and power lock prevent unauthorized changes to your optimal screen settings.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Contrast Ratio: 700:1 (Typical)
    Viewing Angles: 170° (H), 170° (V)
    Optimum Resolution: 1680×1050
    Response Time: 2ms (grey-to-grey), 5ms (off-on-off) (Typical)
    Light Source: 40,000 (Minute.)
    Panel Surface: Anti-Glare, Hard coating (3H)
    Colour Support: 16.2 M (6 bits + 2 bits FRC)
    Size: 19" wide Color TFT Active Matrix LCD with 16:10 aspect ratio
    Brightness: 280 (Typical)
    Dynamic Contrast Ratio: 20000:1
  • COMPATIBILITY
    PC: VGA up to 1680 × 1050 non-interlaced
    Mac®: Power Mac, up to 1680×1050
  • DIMENSIONS
    Physical (WxHxD): 442mm × 385mm × 195mm (17.4" × 15.2" × 7.7")
  • CONNECTOR
    Analogue: 1 × 15-pin mini D-sub
    Power: Built-in power Adapter, 3-Pin plug
  • POWER
    Voltage: AC 100-240V (Universal); 50/60Hz (Switch)
    Consumption: 44W (Typical) / <49W (Maximum)
  • CONTROLS
    OSD: Auto Image Adjust

    Contrast/Brightness

    Color Adjust: sRGB, 9300K, 7500K, 6500K, 5400K, User Color [R, G, B]
    Information

    Manual Image Adjust: Horizontal size, H/V position, fine tune,
    sharpness, dynamic contrast, aspect ratio, response time

    Setup Menu: Language select, resolution notice, OSD position, OSD time out, OSD background

    Memory recall
  • VIDEO INPUT
    Frequency: 24-82kHz / 50-85Hz
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
  • WEIGHT
    Net: 4.6 kg (10.1 lb)
  • OPERATING CONDITIONS
    Humidity: 10% - 90%
    Temperature: 32-104ºF (0-40ºC)
