Key Features

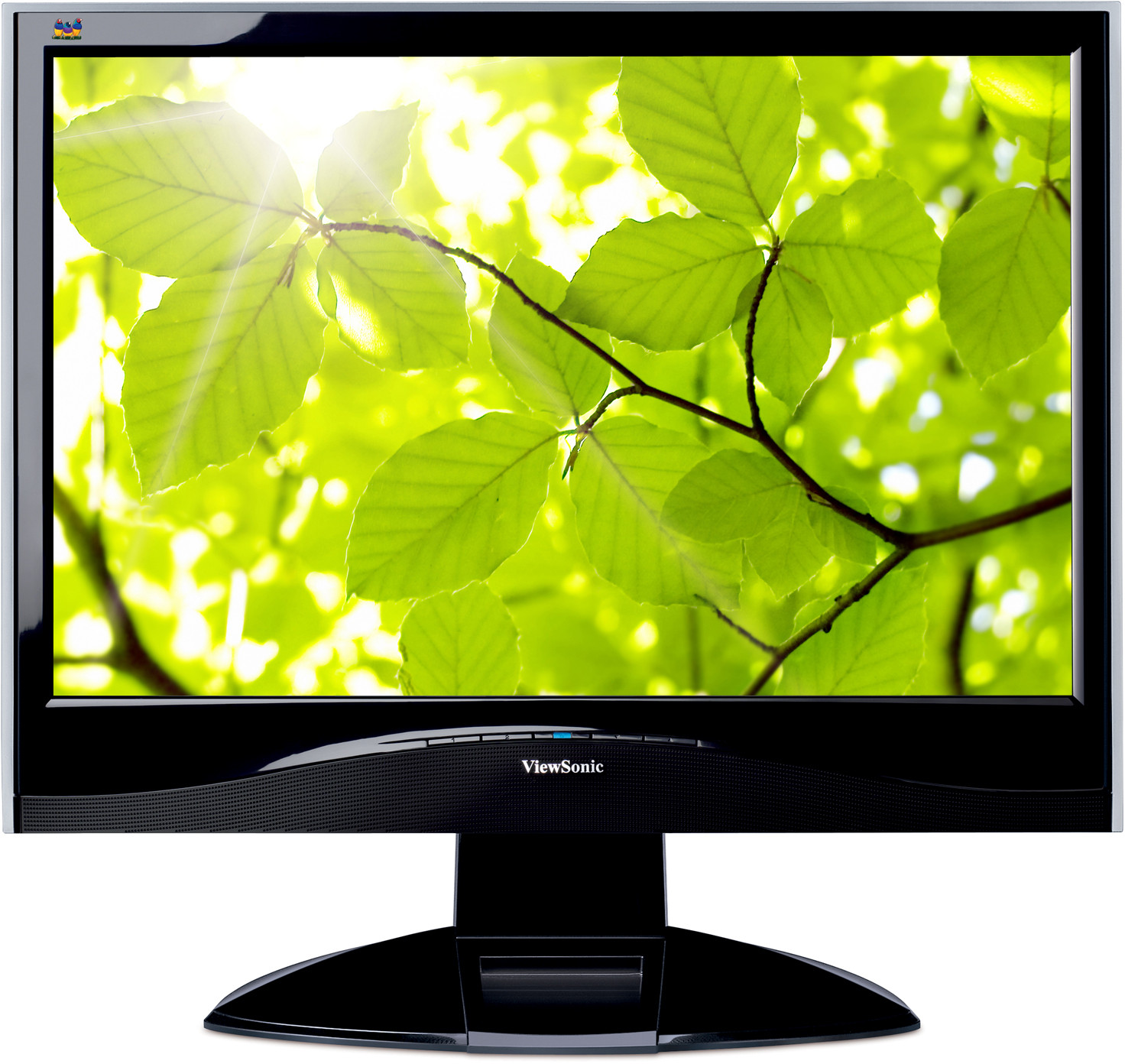

VX1932wm-LED
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 49 cm / 19" wide Color TFT Active Matrix LCD
    Contrast Ratio: 1000:1 (typical)
    Viewing Angles: 170° (H), 160° (V) (CR≧10)
    Display Area: 474mm(H)×296mm(V) / 18.6in(H)×11.6in(V)
    Optimum Resolution: 1440 x 900
    Response Time: 5 ms (G to G)
    Light Source: 30,000 (typical) (White LED)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.282 mm(H) x 0.282 mm(V)
    Brightness: 250 cd/m² (typical)
    Dynamic Contrast Ratio: >1,000,000:1 (Mega)
  • COMPATIBILITY
    PC: VGA up to 1440x900 Non Interlaced
    Mac®: Mac OS (up to 1440x900 )
  • DIMENSIONS
    Physical (WxHxD): 450 mm x 434 mm x 209 mm (
    17.7" x 17" x 8.2")
  • CONNECTOR
    Digital: DVI-D x 1
    Analog: 15 pin mini D-sub x 1
  • POWER
    Voltage: 100-240VAC; 50/60 Hz
    Consumption: 15.5 W (typical) / 19.5 W (maximum)
  • CONTROLS
    Basic: [1], [2], Soft power button, Up[▲], Down[▼]
    Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust (sRGB,
    9300K, 6500K, 5400K, User Color [R, G, B]), Information,Manual Image
    Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness, Aspect Ratio,
    ECO Mode), Setup Menu (Language Select, Resolution Notice, OSD
    Position, OSD Time Out, OSD), Background, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 0°C - 40°C (32°F - 104°F)
    Humidity: 20% to 80% (no condensation)
  • WEIGHT
    Net: 4.7 Kg (10.3 lbs)
  • VIDEO INPUT
    Frequency: Fh: 24 – 82 kHz , Fv : 50 – 75 Hz
    Sync: H/V Separated, Composite, Sync On Green(TTL)
    Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
  • VESA MOUNT COMPLIANT
    Meet VESA (100mm x 100mm) Standards
  • ERGONOMICS
    Tilt: 20 ~ -5 degrees
  • AUDIO
    Speakers: 2W x 2
