LCD Display
VP2458
Key Features
- 100% sRGB & Delta E < 2 colour accuracy
- Hardware Calibration
- Ergonomic stand with auto pivot
- Frameless bezel
- Detachable Base
Product Description

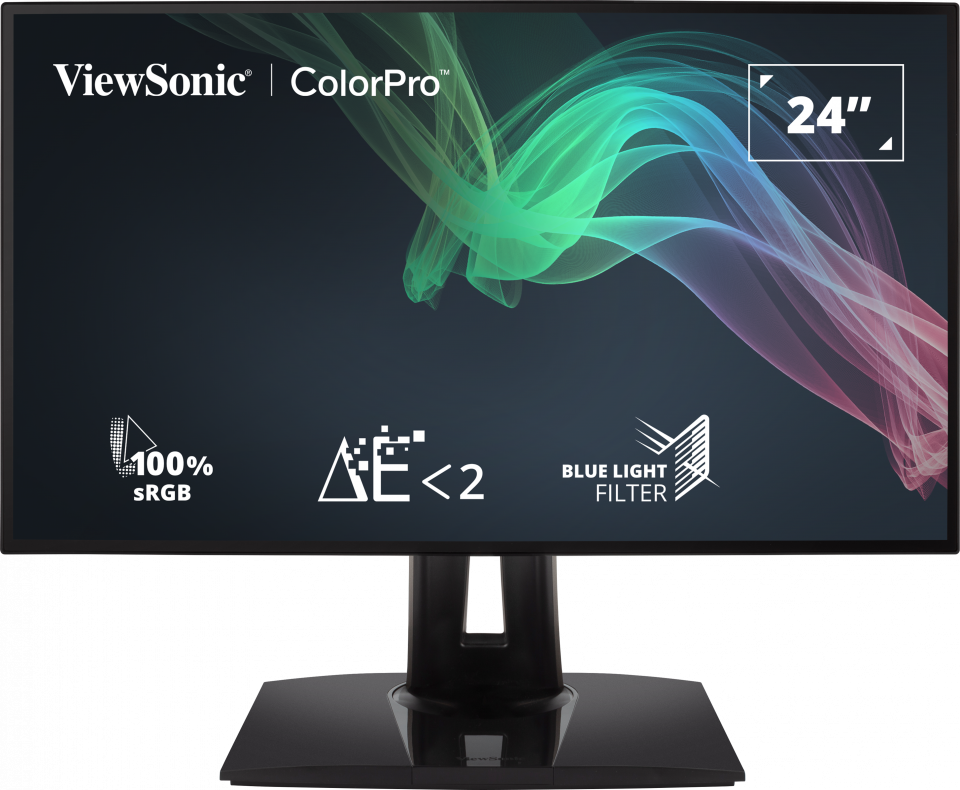

The ViewSonic® VP2458 is a professional-grade 24” (23.8” viewable) Full HD monitor designed for enterprise professionals. The monitor's SuperClear® IPS panel technology offers 100% sRGB colour coverage and Delta E<2 colour accuracy to deliver precise colour performance and wide-angle viewing, while a 4-sided frameless design provides a seamless viewing experience for multi-monitor setups. What’s more, with advanced ergonomic tilt, swivel, pivot, and height adjust features, this monitor provides a comfortable viewing experience and vivid images no matter your vantage point. Extensive connectivity options include VGA, HDMI, and DisplayPort so that you can connect to a variety of HD and analog devices – today and tomorrow. In addition, Flicker-Free technology and a Blue Light Filter help to minimise eyestrain from extended viewing periods.
- VESA Compatible (Wall Mount 100 x 100 mm)
- AC in
- DP
- HDMI
- VGA
- USB up stream
- USB down stream
Visit Us
- www.viewsonic.com
-
DISPLAY
Monitor Size: 24" W (23.8" Viewable) Panel Technology: IPS Technology TFT LCD Resolution: Full HD 1920 x 1080 Display Area: 527 mm (H) x 296.5 mm (V) Aspect Ratio: 16:9 Brightness: 250 cd/m² (Typ) Contrast Ratio: 1000:1 (Typ) Dynamic Contrast Ratio: 20,000,000:1 Viewing Angles: 178 degrees / 178 degrees (Typ) Response Time: 5ms (GTG w/OD) Colour Gamut: NTSC: 72.57% Coverage / 75.9% Size (Typ)
sRGB: 100% Coverage / 107% Size (Typ)
REC709: 100% Coverage / 107% Size (Typ)
SMPTE-C:100% Coverage / 115.6% Size (Typ)
EBU: 99.28% Coverage / 105.8 Size (Typ)Pixel Size: 0.275 mm (H) x 0.275 mm (V) -
INPUT SIGNAL
Frequency: VGA: Fh = 55 ~90KHz ; Fv = 48 ~ 75Hz
DisplayPort/HDMI: Fh = 55 ~90KHz ; Fv = 48 ~ 75HzSync: VGA: Separate Sync, Composite Sync, Sync on Green
DisplayPort: PCI-E
HDMI: TMDS -
COMPATIBILITY
PC: PC Compatibles (1920x1080 HDMI/DisplayPort Non-Interlaced) Mac®: Power Mac (up to 1920x1080 HDMI/DisplayPort) -
CONNECTOR
Input: VGA x 1
DisplayPort 1.2a x 1
HDMI 1.4 x 1 -
USB
Upstream: Type B x 1 Downstream: Type A x 2 -
POWER
Power: 3-pin plug (CEE22) x 1 Voltage: AC 100-240V (Universal); 50/60Hz Consumption: 17.5 W Optimise: 14.0 W Conserve: 11.5 W -
MODEL COLOUR
Black -
ERGONOMICS
Tilt: -5.0°±2.0° (forward) , 21.0°±2.0°(backward) Swivel: Right 60°±4° / Left 60°±4° Pivot: 0~90 degrees (Clockwise and Counter Clockwise) Height Adjustment: 0~130mm ±5.0mm -
WALL MOUNT
VESA®: 100mm x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): -4°F to 140°F (-20°C to 60°C) Humidity: 5% to 90% (no condensation) -

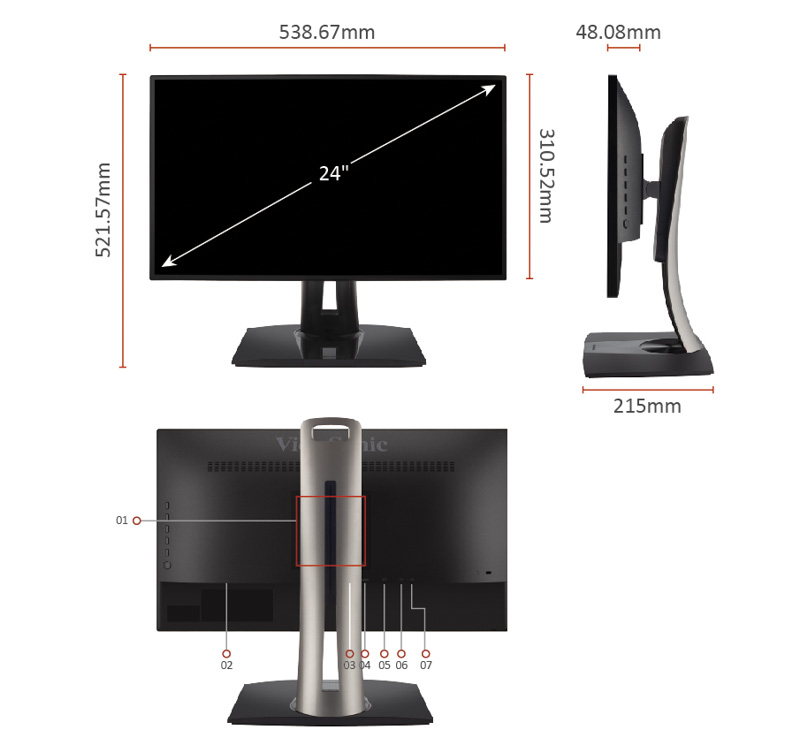

DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 539 mm (W) x 522 mm (H) x 215 mm (D) Physical without stand (mm): 539 mm (W) x 311 mm (H) x 48 mm (D) Packaging (mm): 690 mm (W) x 380 mm (H) x 205 mm (D) -
WEIGHT
Net with stand: 5.5 kg Net without stand: 3.1 kg Gross: 8.6 kg -
WARRANTY
*Warranty offered may differ from market to market -
PACKAGE CONTENTS
LCD Display
Power Cable(cable length :1.8M)
DisplayPort to DisplayPort Cable (cable length :1.8M
USB3.1 Up Stream Cable(cable length :1.8M)
Quick Start Guide
