Key Features

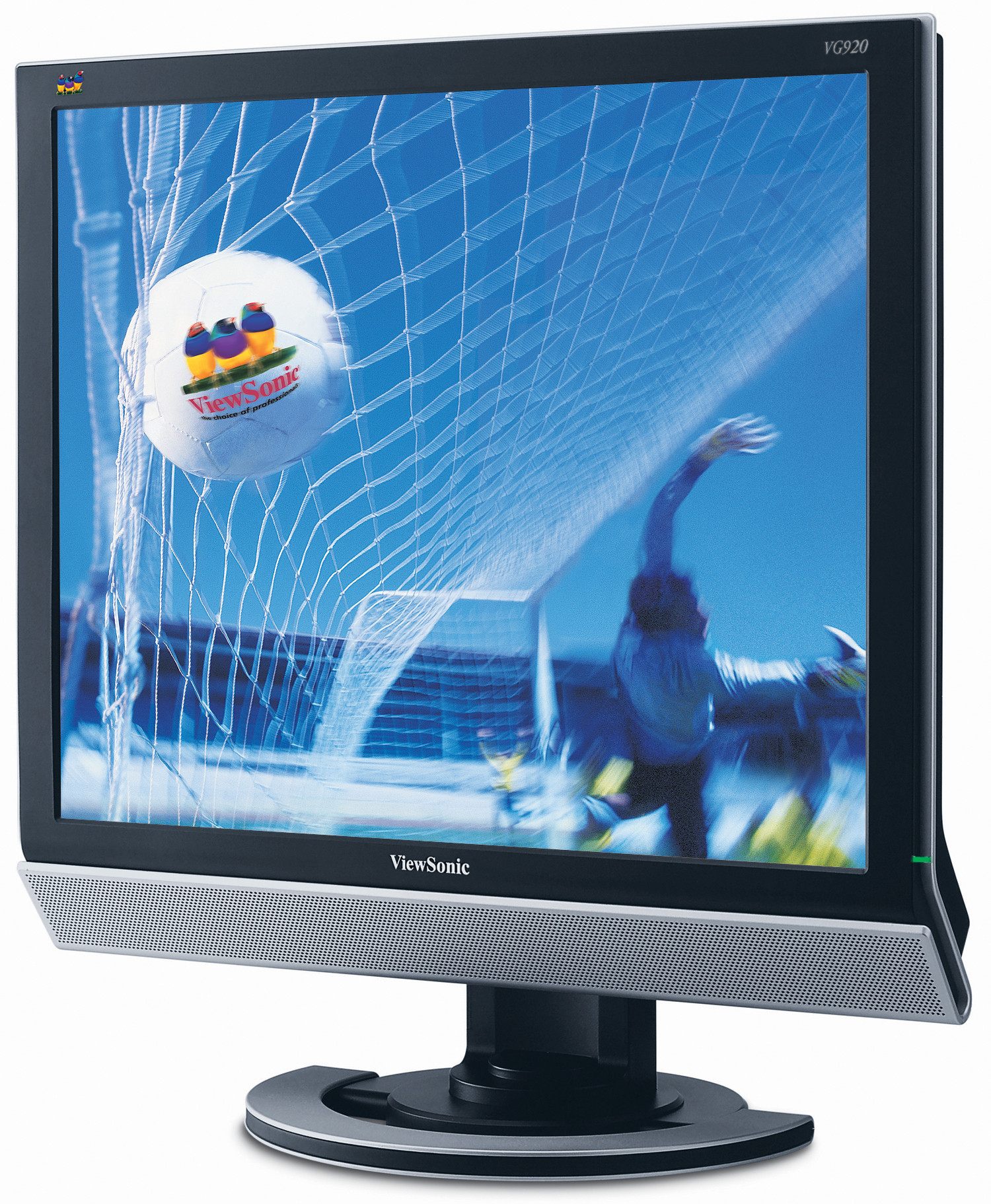

VG920
Product Description
The 19" ViewSonic VG920 LCD display combines a slim-bezel design with enhanced display qualities. OPTISYNC® TECHNOLOGY supports both digital (DVI) and analogue (VGA) signals for added versatility and connectivity. Enjoy a true multimedia experience with dual built-in 3-watt speakers, delivering rich stereo sound to your desktop. All this combined with CLEARMOTIVTM BROADCAST- QUALITY VIDEO featuring 8ms response, a high 550:1 contrast ratio (typ.), and large viewing angles make the VG920 a perfect choice for home, small/home office, corporate, government or education use.It’s not just a multimedia LCD. It’s a ViewSonic.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 48cm / 19" TN colour TFT active matrix SXGA LCD
    Contrast Ratio: 550:1 (typ.)
    Viewing Angles: 140° horizontal, 135° vertical (at 10:1)
    160° horizontal, 150° vertical (at 5:1)
    Display Area: 37.6cm (horizontal) x 30.1cm (vertical), 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 8ms (off-on-off) (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.294mm
    Bandwidth: 135MHz
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Brightness: 270 cd/m2 (typ.)
  • COMPATIBILITY
    Mac®: Power Mac™ up to 1280 x 1024 (max. 60Hz)
    PC: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
  • DIMENSIONS
    W x H x D mm: 430 x 456 x 214 (w/ stand)
    430 x 388 x 59 (w/o stand)
  • PACKAGE CONTENTS
    LCD display, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • AUDIO
    Speaker: 2 x 3-watt
    Amplifier: 3watt@1khz@THD≤8%
  • CONNECTOR
    Analogue: 15-pin mini D-sub (detachable cable)
    Digital: DVI-D (detachable cable)
    Power: 3-pin AC plug (CEE22)
    Audio: 3.5mm stereo audio line-in
  • POWER
    Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Consumption: 50 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Soft power, menu [1] , down, up, select [2], mute, volume up/down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio adjust (volume, mute), colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C to 40°C
    Humidity: 10% to 90% (non-condensing)
  • WEIGHT
    Net: 7kg (w/ stand); 5.3kg (w/o stand)
  • VIDEO INPUT
    Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz
    Analogue: RGB analogue (0.7 Vp-p , 75 ohms)
    Digital: DVI-D (TMDS, 100 ohms)
    Sync: H/V separated (TTL)
  • POWER MANAGEMENT
    Meets TCO’99, ENERGY and Energy Star standards
  • ERGONOMICS
    Tilt: Down 5°, up 20°
