Key Features

VG910b
Product Description

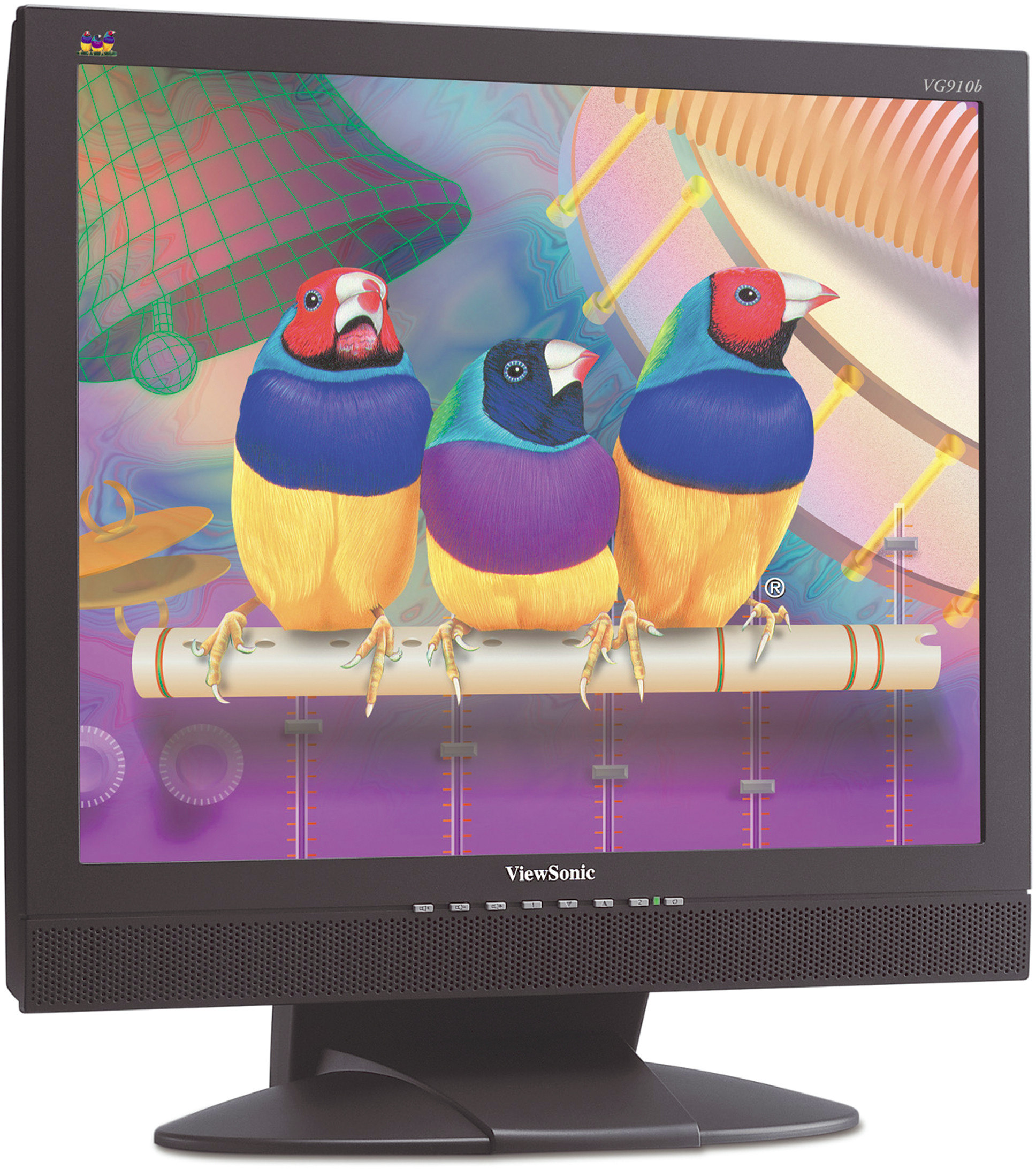

The 19" ViewSonic VG910b LCD display combines a refined slim-bezel design with the quality you have come to expect from ViewSonic. OPTISYNC® TECHNOLOGY supports both digital (DVI) and analogue (VGA) signals for added versatility and connectivity. Enjoy a true multimedia experience with dual built-in 3-watt speakers, delivering rich stereo sound to your desktop. All this combined with CLEARMOTIVTM BROADCAST-QUALITY VIDEO featuring 20ms response, an ultra-high 1000:1 contrast ratio (typ), and 170° viewing angles make the VG910b an ideal LCD display for home, small/home office, corporate, government or educa- tion use.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 48cm / 19" colour TFT active matrix SXGA LCD
    Contrast Ratio: 1000:1 (typ)
    Viewing Angles: 170° horizontal, 170° vertical@ 10:1
    170° horizontal, 170° vertical @ 5:1
    Brightness: 250cd/m2 (typ)
    Display Area: 37.6cm horizontal x 30.1cm vertical x 48.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 20ms (typ)
    Panel Surface: Anti-glare
    Colour Support: 16.7M colours (8-bit)
  • COMPATIBILITY
    Mac®: Power MacTM G3/G4 up to 1280 x 1024
    PC: VGA up to 1280 x 1024
  • DIMENSIONS
    Physical (mm): 422.4mm x 438.5mm x 180.6mm (with stand)
    422.4mm x 382.1mm x 62mm (without stand)
  • AUDIO
    Speaker: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Power: 3-pin AC plug
    Analogue/Digital: 15-pin mini D-sub, DVI-D
    Audio: 3.5mm audio line-in
  • POWER
    Voltage: AC 100–240V, 50–60Hz internal power supply
    Consumption: < 50 W (typ); ≤ 1 watt in power save mode
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness, input select, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K- default, 5400K, 5000K, user colour), information (mode, model number, serial number), balance, bass, treble, manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout), OSD background, memory recall
  • OPERATING CONDITIONS
    Temperature: 0–40°C
    Humidity: 10–90% (non-condensing)
  • WEIGHT
    Net: 6.8 kg
  • VIDEO INPUT
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
    Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Sync: H/V separated (TTL)
  • POWER MANAGEMENT
    Meets TCO, Energy Star and ENERGY standards.
