LCD Display
VG2455
Key Features
- USB Type-C
- Frameless bezel
- SuperClear® IPS technology
- HDMI, DisplayPort and VGA inputs
- vDisplay Manager (free download)
Product Description

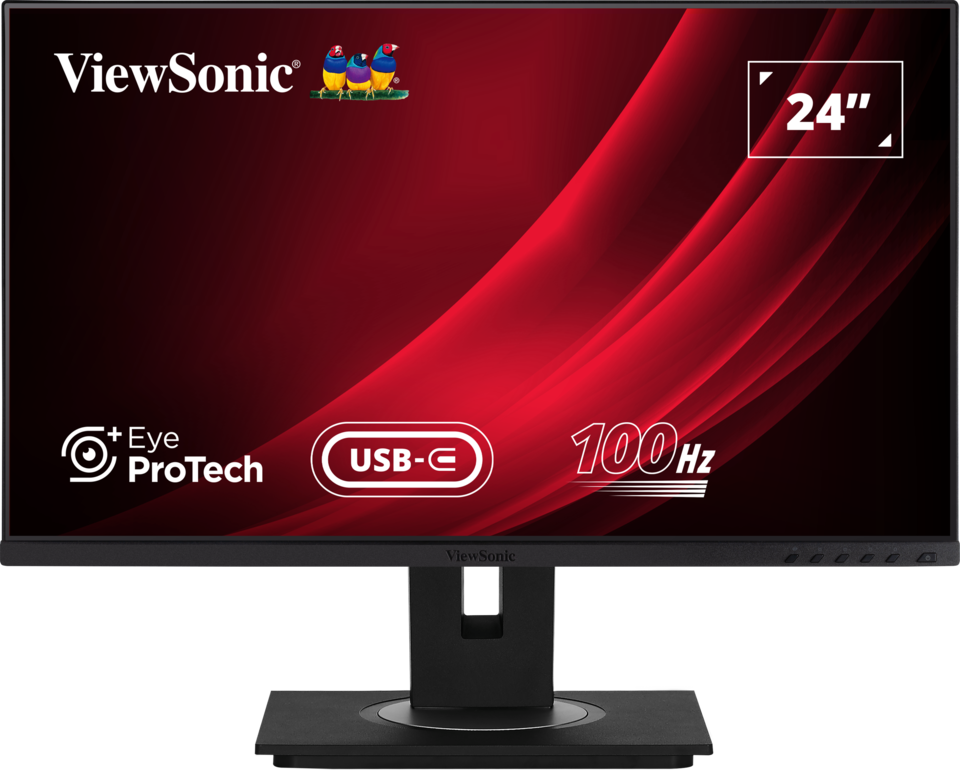

The ViewSonic VG2455 is a 24" (23.8" viewable) 1080P IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port and a complimentary USB Type-C cable. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and offers quick and easy setup, making the VG2455 monitor perfect for business environments.
- VESA Compatible (Wall Mount 100 x 100 mm)
- Menu Control Panel
- USB 3.1 down stream x 2
- AC In
- DisplayPort
- HDMI
- VGA
- USB Type C
- USB 3.1 up stream
- USB 3.1 down stream
Visit Us
- www.viewsonic.com
-
DISPLAY
Monitor Size: 24’’ (23.8’’ viewable) Panel Technology: IPS Technology Resolution: 1920 x 1080 Display Area: 527 mm x 296.5 mm Aspect Ratio: 16:9 Brightness: 250 cd/m² (Typ) Contrast Ratio: 1000:1 (Typ) Dynamic Contrast Ratio: 50,000,000:1 Viewing Angles: 178 degrees / 178 degrees (Typ) Response Time: GtG(Recommend; typ; ms): 5ms Pixel Size: 0.275mm(H) x 0.275mm(V) -
INPUT SIGNAL
Frequency: 24 ~ 82KHz ; Fv = 50 ~ 75Hz, Sync: Separate/Composite/SOG, TMDS,PCI-E, Micro-Packet -
COMPATIBILITY
PC: Windows 7/8/8.1/10 certified Mac®: macOS tested -
CONNECTOR
Input: VGA In x1, HDMI In(1.4) x1, DisplayPort In(1.2) x1, USB Type C (Up Stream; DisplayPort Alt mode)(3.1) x1, USB Type B (Up Stream)(3.1) x1, USB Type A (Down Stream; 900mA)(3.1) x3 -
AUDIO
Speaker: 2W x 2 -
USB
Upstream: USB Type C (Up Stream; DisplayPort Alt mode) (v 3.1) x 1
USB Type B (Up Stream) (v 3.1) x 1Downstream: USB Type A (Down Stream; 900mA) (v 3.1) x 3 -
POWER
Power: 3-pin Socket (IEC C14 / CEE22) Voltage: AC 100-240V (Universal); 50/60Hz Consumption: 17.8W Optimise: 14.4W Conserve: 11.9W -
ERGONOMICS
Tilt: 40 ~ -5 degrees Swivel: 60 ~ -60 degrees Pivot: 90 ~ -90 degrees Height Adjustment: 130mm -
WALL MOUNT
VESA®: 100mm x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% to 90% (no condensation) -

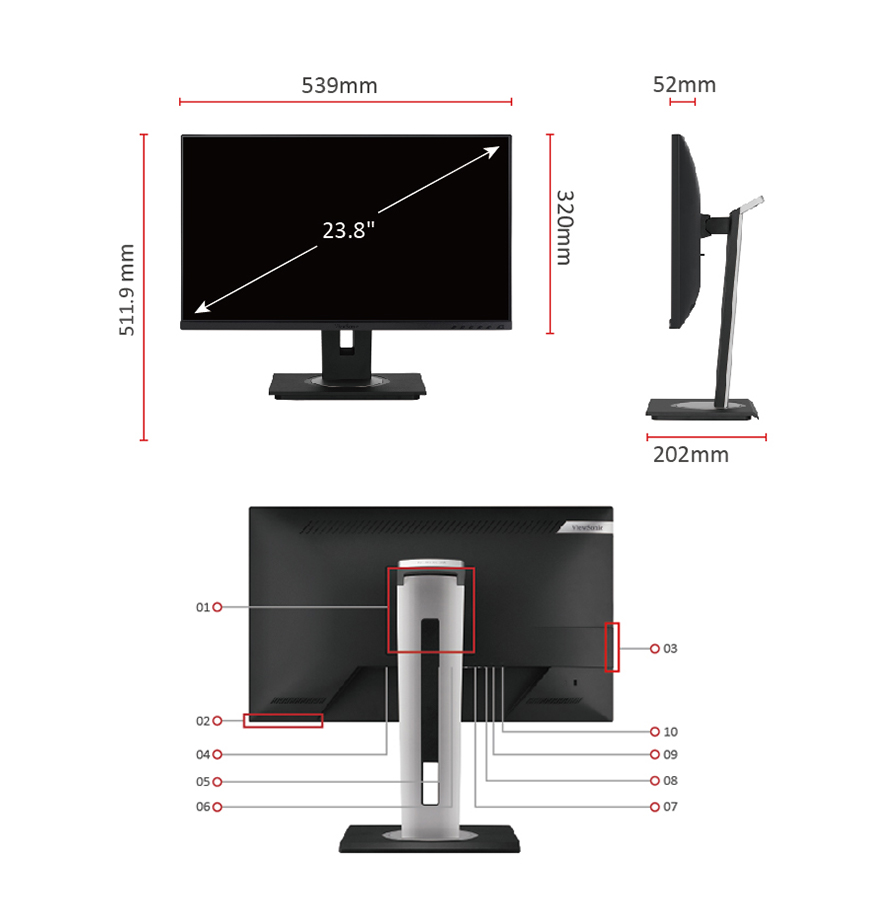

DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 539mm (W) x 406~503mm (H) x 202mm (D) Physical without stand (mm): 539mm (W) x 320mm (H) x 52mm (D) Packaging (mm): 595mm (W) x 210mm (H) x 396mm (D) -
WEIGHT
Net with stand: 6.4kg Net without stand: 4kg Gross: 9.4kg -
WARRANTY
Warranty offered may differ from market to market -
PACKAGE CONTENTS
VG2455 x1
3-pin Plug (IEC C13 / CEE22) x1
USB A/B Cable (v3.0; Male-Male) x1
Quick Start Guide x1
USB Type-C Cable x1
