Key Features

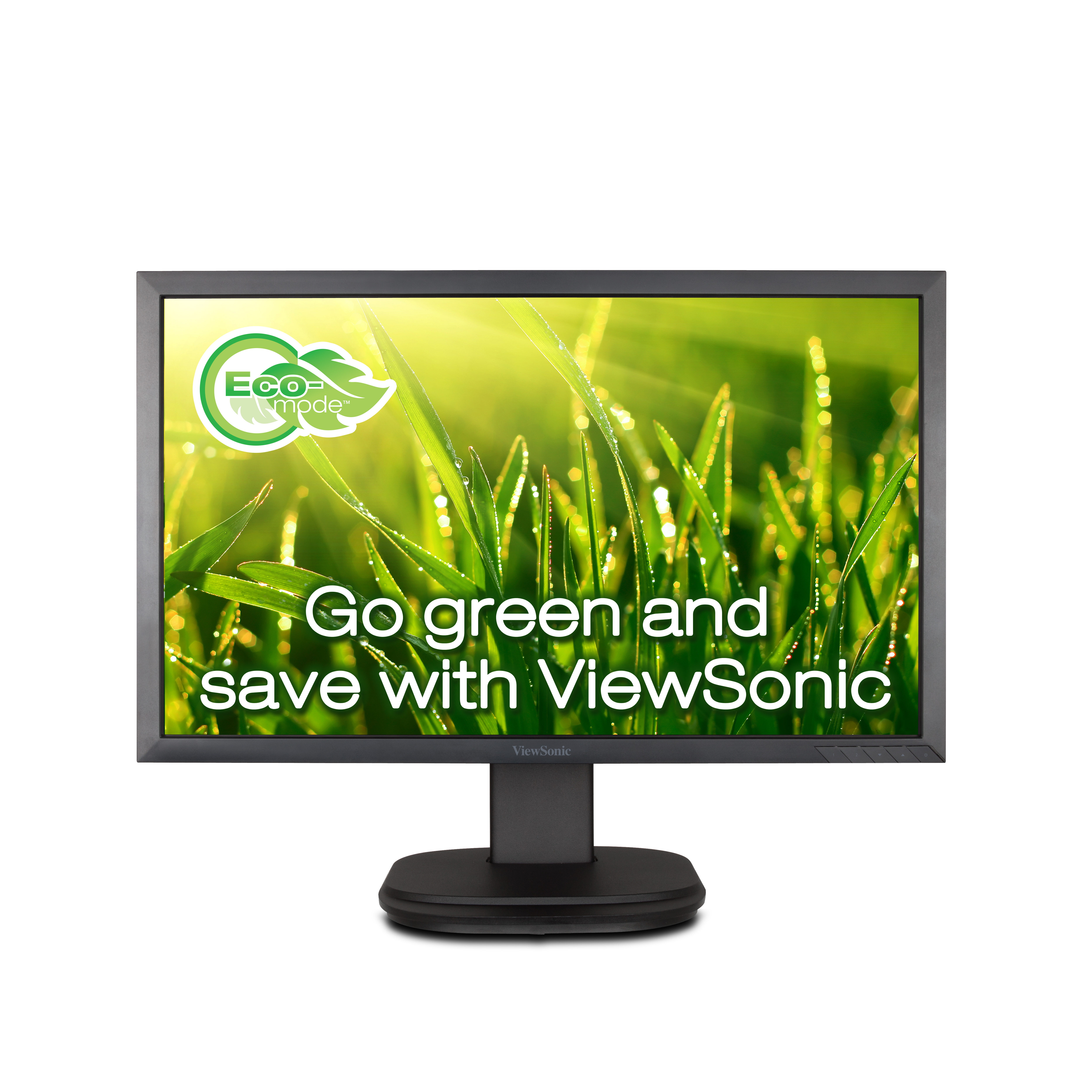

VG2239m-LED
Product Description

The VG2239m-LED widescreen monitor is one of two new members of ViewSonic’s new VG39 family. Its 56cm/22” (55cm/21.5” viewable) display with a native Full HD resolution. What makes it even more appealing is the LED backlight for up to 50% energy savings. This monitor is also fully ergonomic with 90º pivot, height adjust, swivel and tilt. The slim bezel design coupled with hidden stereo speakers make the VG2239m-LED a space saver. You can put it on your desk or mount on your wall or on any VESA compliant monitor stand.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 56cm / 22” (55cm / 21.5” viewable) wide
    Optimum Resolution: 1920 x 1080
    Contrast Ratio: 1,000:1 static (typ.)
    Viewing Angles: 170° horizontal / 160° vertical (typ.)
    Response Time: 5 ms (typ.)
    Panel Surface: Anti-glare, hard-coating (3H)
    Display Area: 477 x 268mm
    Aspect Ratio: 16:9
    Brightness: 250 cd / m² (typ.)
    Dynamic Contrast Ratio: 20,000,000:1 dynamic
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
  • COMPATIBILITY
    PC: VGA up to 1920 x 1080 @ 60Hz (preferred)
    Mac®: Power Mac (up to 1920 x 1080)
  • CONNECTOR
    Digital: DVI-D (with HDCP), DisplayPort
    USB: x 2 (V2,0, 1-up / 2-down)
    Power: Internal Power Board, 3-pin plug (CEE22)
    Analogue: 15-pin mini D-sub (VGA)
    Audio Out: 3.5mm Headphones
    Audio Input: 3.5mm
  • CONTROLS
    Basic: Power, 1, down, up, 2
  • DIMENSIONS
    Physical Without Stand: 512.4 x 304.4 x 56.4mm (20.17” x 11.98” x 2.22”)
    Packaging: 581 x 483 x 187mm (22.87” x 19.01” x 7.36”)
    Physical With Stand: 512.4 x 418 x 239.6mm (20.17” x 16.45” x 9.43”)
  • INPUT
    Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
    Sync: H/V separated (TTL)
  • POWER
    Consumption: 24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W
    Voltage: AC 100–240V (universal), +/-10% Wide Range
  • OPERATING CONDITIONS
    Humidity: 10% to 90% (non-condensing)
    Temperature: 32° F to 104° F (0° C to 40° C)
  • VESA® MOUNT
    100mm x 100mm
  • ERGONOMICS
    Pivot: 0-90°
    Tilt: 20° ~ -5°
    Swivel: 360°
    Height Adjustment: 0-135mm
  • WEIGHT
    Net With Stand: 4.7 Kg (10.36 lbs)
    Net Without Stand: 3.2 Kg (7.05 lbs)
    Gross: 6.7 Kg (14.77 lbs)
  • AUDIO I/O
    Speakers: 2W x 2
