Key Features

VG2233Smh
Product Description

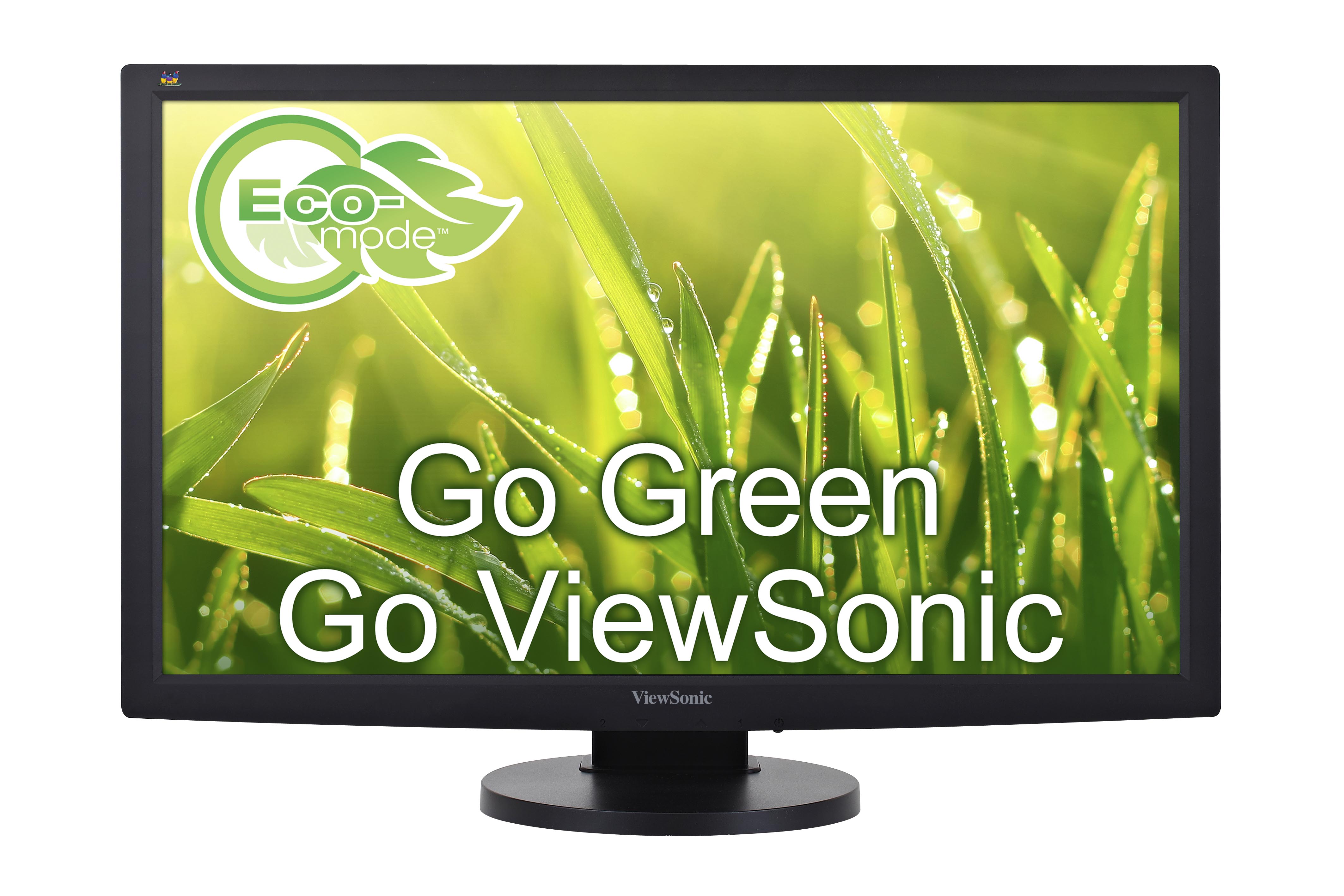

The ViewSonic VG2233Smh is a high-performance, ergonomic 22’’ (21.5’’ viewable) LED display that offers a cost-effective solution for corporations and SMBs, as well as educational and government institutions. Designed to offer a more efficient and comfortable working environment, it is fully ergonomic with 340° swivel, 90° pivot, -5° to 25° tilt, and 100mm height adjustment. Along with the SuperClear® image enhancement technology for lifelike colour performance and 178/178° wide viewing angles, the VG2233Smh boasts Full HD 1920 x 1080 resolution and colour management to deliver consistently brilliant colour performance at any angle. With HDMI, DVI and D-Sub inputs to connect high-definition devices, the display also integrates dual stereo 2W speakers to provide the total multimedia package. An integrated Eco-mode lets users optimize the backlight level, lowers power consumption and prolong the lamp life for a lower total cost of ownership – making the VG2233Smh the best choice for your organization.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 22" 16:9 (21.5" vivewable) Colour a-Si TFT Active Matrix LCD (ADS)
    Optimum Resolution: 1920 x 1080
    Contrast Ratio: 1000:1 (typ)
    Viewing Angles: 178° / 178° (typ)
    Response Time: 4ms (GtG)
    Panel Surface: Anti-Glare
    Display Area: 476.64(H) X 268.11 (V)mm
    Colour Support: 16.7M
    Brightness: 250 cd/m²
    Dynamic Contrast Ratio: 20M:1
    Backlight: WLED light bar
    Backlight Life: 30,000 Hrs
  • CONNECTOR
    Power: Internal Power Board, 3-pin plug (CEE22)
    Video: VGA x1, DVI x1, HDMI x1
    Audio Out: 3.5mm Headphone Out
    Audio Input: 3.5mm Connector
    Speaker: 2-Watt x 2
  • DIMENSIONS
    Physical With Stand: 505.6 x 361 x 204.3 mm
    Physical Without Stand: 505.6 x 311.6 x 51 mm
    Packaging: 624 x 393 x 167 mm
  • PACKAGE CONTENTS
    LCD Display, Power Cable, VGA cable, DVI cable, Audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM
  • INPUT SIGNAL
    Analogue: VGA
    Digital: HDMI / DVI
  • POWER
    Optimize: 18 W (typ)
    Conserve: 14 W (typ)
    Voltage: AC 100-240V (Universal); 50/60 Hz
    Consumption: 22 W (typ)
  • VESA® MOUNT
    100 x 100 mm
  • ERGONOMICS
    Height Adjustment: 100 mm
    Pivot: 90º
    Tilt: 25º ~ - 5º
    Swivel: 340º
  • WEIGHT
    Gross: 4.8 Kg
    Net With Stand: 3.2 Kg
    Net Without Stand: 6.27 Kg
  • OPERATING CONDITIONS
    Temperature: 0°C ~ 40°C
