Key Features

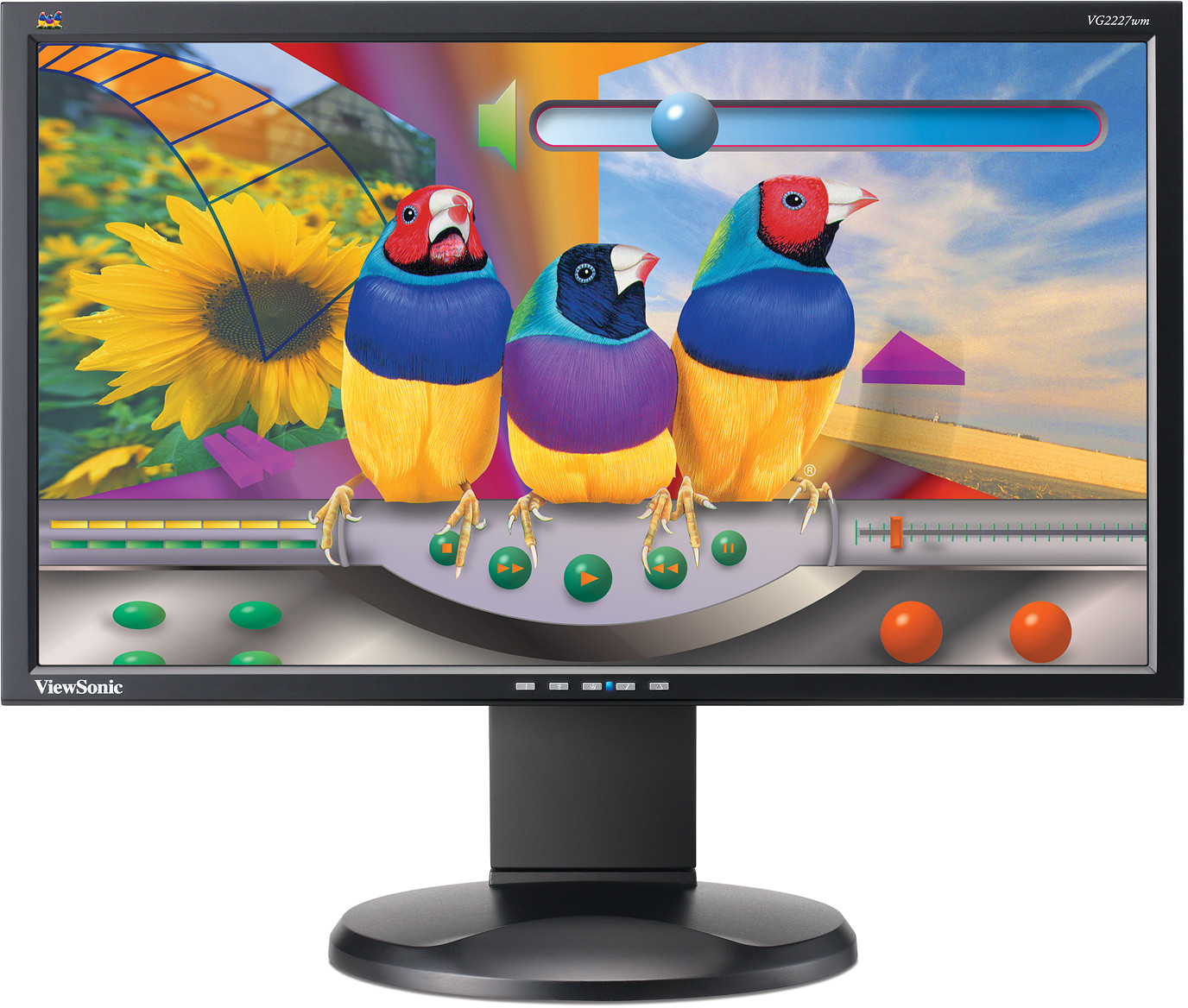

VG2227wm
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    PC: VGA up to 1920×1080 non-interlaced
    Mac®: Power Mac, up to 1920×1080
  • DIMENSIONS
    Physical With Stand: 511mmx412mmx230mm(16.8"x13.5"x7.5")
    Physical Without Stand: 511mmx330mmx63mm(20.11"x11.8"x2.48")
  • PACKAGE CONTENTS
    D-Sub Cable, DVI-D Cable, Power Cable, Audio cable, USB
    cable
  • INPUT
    Sync: H/V Separated
    Analogue: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
    Digital: DVI-D(TMDS, 100 ohms)
    Frequency: Fh: 24-82kHz, Fv: 50-75Hz
  • CONNECTOR
    Analogue: 15 pin mini D-sub×1
    Digital: DVI-D
    Power: Built-in power Adapter, 3-Pin plug
    USB: down stream x 2 / up stream x 1
    Audio: 3.5 mm Audio in
  • POWER
    Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
    Consumption: 43W(Typical)
    Eco Mode: optimize 31W(Typical)/conserve 25W(Typical)
    Save Mode (W): ≤1W
  • CONTROLS
    Basic: Power, Mute,[1], Up[▲], Down[▼], [2]
    OnView®: Auto image adjust, Contrast/Brightness, Audio adjust: Volume,
    mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color
    [R, G, B] Information, Manual image adjust: H/V position, Horizontal
    size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco
    mode, Setup menu: Language select, resolution notice, OSD
    position, OSD timeout, OSD background, memory recall
  • DISPLAY
    Contrast Ratio: 1000:1(Typical) ; 20000:1 dynamic
    Display size: 521mm (H) x 293mm (V)
    Brightness: 300 cd/m² (Typical)
    Size: 55cm/21.5" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
    Viewing Angle: 170o(H), 170o(V) at 5:1 c/r
    Response Time (Typical): 5ms(Typical)
    Panel Surface: Anti-Glare
    Pixel Pitch: 0.248mm(H)×0.248mm(V)
    Light Source: 50,000 hrs(Typical)
    Color Support: 16.7 M(6-bits + Hi FRC)
  • POWER MANAGEMENT
    TCO'03, ENERGY STAR
  • VESA MOUNT COMPLIANT
    VESA 100mmx100mm
  • ERGONOMICS
    Tilt: 20˚~-5˚
    Swivel: 360˚(180 ˚left / 180 ˚right)
    Height Adjustment: 0~80mm
  • AUDIO
    Speakers: 2 x 2 watt
  • WEIGHT
    Gross: 6.73 kg
    Net: 4.83 kg
  • OPERATING CONDITIONS
    Humidity: 10-90%(Non condensed)
    Temperature: 0-40°C(32-104°F)
