Key Features

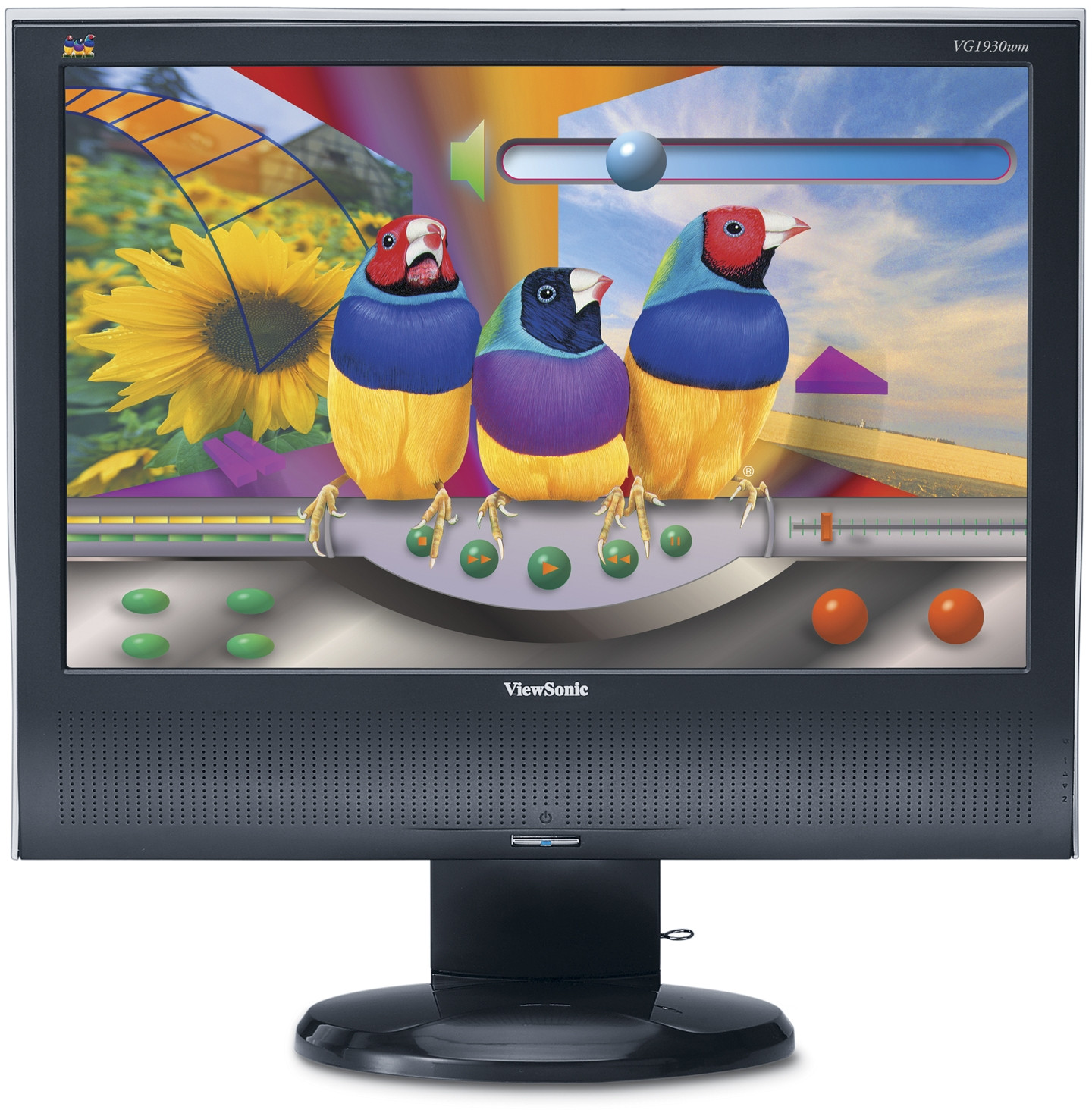

VG1930wm
Product Description
ViewSonic’s 19” VG1930wm combines WIDESCREEN and multimedia performance with ergonomic flexibility. Improve productivity and save time with widescreen versatility. Display multiple pages, larger spreadsheets and more on a single screen without the need to swap. HEIGHT ADJUSTMENT, tilt and 360° swivel features allow the user to set the ergonomic position of the monitor to generate the best possible viewing position. Enjoy high brightness and contrast levels for rich, precise, detailed images and razor sharp text, whilst DIGITAL AND ANALOGUE inputs ensure maximum connectivity options. Built-in stereo-speakers deliver high quality audio performance. The elegantly designed VG1930wm widescreen monitor is the ideal business LCD.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 19” Wide TN colour TFT active matrix WXGA+ LCD
    Contrast Ratio: 700:1 (typ.)
    Viewing Angles: 160° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Brightness: 300cd/m² (typ.)
    Display Area: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
    Optimum Resolution: 1440 x 900@60Hz
    Response Time: 5ms (off-on-off) (typ.)
    Light Source: Long life, 40000 hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.285mm
    Pixel Clock: 135MHz
  • COMPATIBILITY
    PC: VGA up to 1440 x 900 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900
  • DIMENSIONS
    Physical With Stand: 460 x 434–514 x 230
    Physical Without Stand: 460 x 352 x 61
    W x H x D mm: 560 x 525 x 282
  • PACKAGE CONTENTS
    LCD display, VGA cable, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • AUDIO
    Speaker: 2 x 1.5 watt integrated speakers
    Amplifier: 1.5-watt @ THD < 8%
  • CONNECTOR
    Analogue: 15-pin mini D-sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Power: 3-pin AC plug (CEE22)
    Audio: 3.5mm stereo audio line-in
  • POWER
    Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Consumption: 35 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2], mute, volume up/down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C–40°C
    Humidity: 10%–90% (non-condensing)
  • WEIGHT
    Net With Stand: 5.4kg
    Gross: 6.9kg
  • VIDEO INPUT
    Frequency: Fh: 24~82kHz, Fv: 50~75Hz
    Sync: H/V separated (TTL) (screen-on-screen)
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
    Digital: DVI-D (TMDS, 100 ohm)
  • POWER MANAGEMENT
    Meets TCO’03 and ENERGY STAR® standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 75mm x 75mm
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
    Swivel: 360° swivel base
    Height Adjustment: 0~80mm
