Key Features

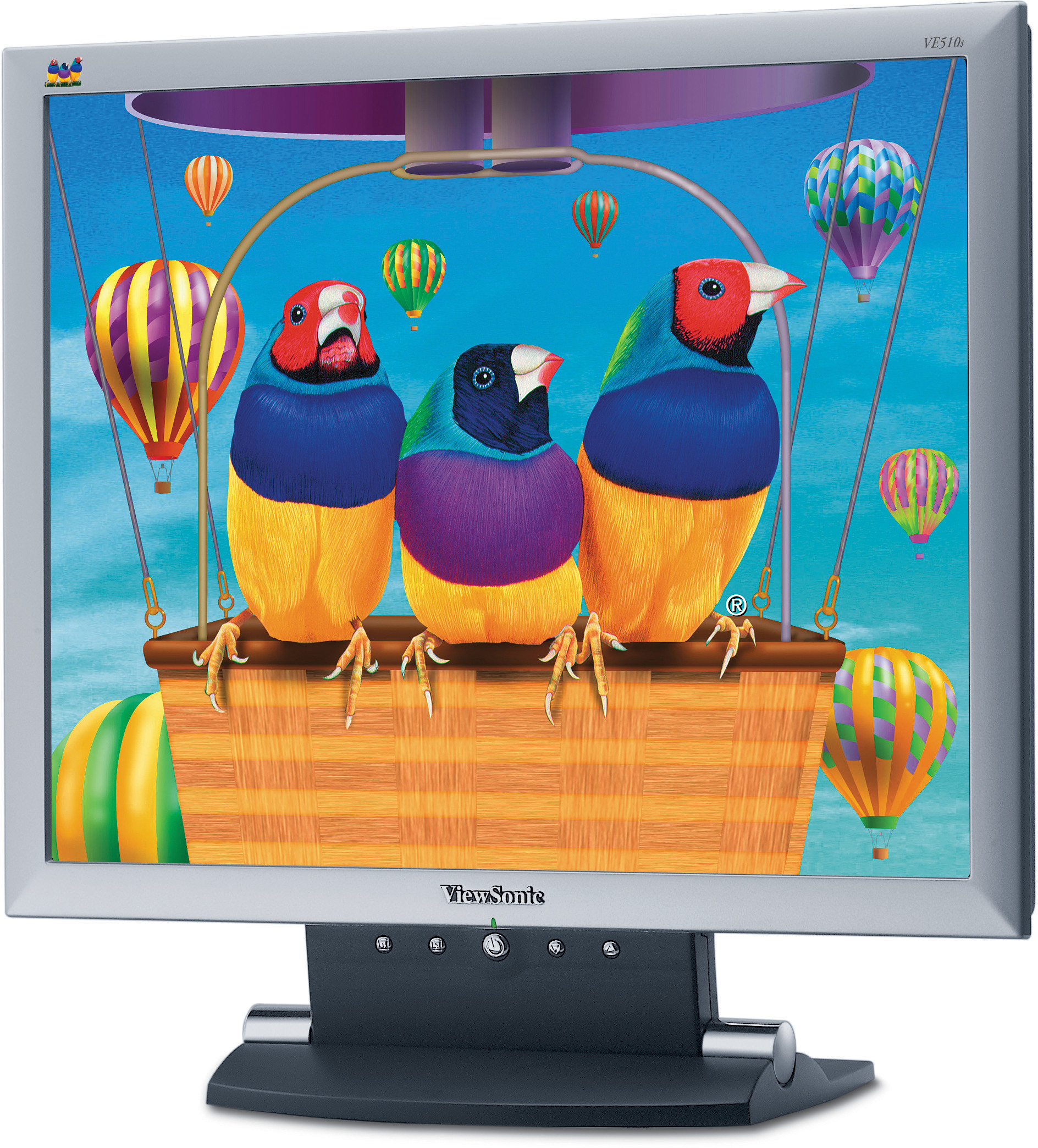

VE510s
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 38cm / 15" colour TFT active matrix XGA LCD
    Contrast Ratio: 450:1 (typ)
    Viewing Angles: 120° horizontal, 100° vertical @ 10:1

    160° horizontal, 135° vertical @ 5:1
    Brightness: 250 cd/m² (typ)
    Display Area: 30.4cm horizontal x 22.8cm vertical, 38.1cm diagonal
    Optimum Resolution: 1024 x 768
    Response Time: 16ms (typ)
    Light Source: Long life, 50,000 hrs. (typ)
    Panel Surface: Anti-glare
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
  • COMPATIBILITY
    PC: VGA up to 1024 x 768 non-interlaced
    Mac®: Power Mac™ G3/G4 up to 1024 x 768
  • DIMENSIONS
    Physical (WxHxD): 343mm (W) x 169mm (D) x 326mm (H)
  • CONNECTOR
    Analogue: 15-pin mini D-sub
    Power: 3-pin plug (CEE22)
  • POWER
    Voltage: AC 100–240V, 50–60Hz (+/-3) (auto switch)
    Consumption: 32W (typ), ≤ 1 watt in suspend mode
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2
    OSD: Auto Image Adjust, Brightness, Contrast, Colour Adjust [sRGB,
    9300K, 6500K (default), 5400K, User Colour], Information [Mode,
    Model Number, Serial Number], Manual Image Adjust [H. Size,
    H. Position, V. Position, Fine Tune, Sharpness], Setup Menu
    [Language, Resolution Notice, OSD Position, OSD Timeout, OSD
    Background], Memory Recall
  • OPERATING CONDITIONS
    Temperature: 0–40°C
    Humidity: 10–90% (non-condensing)
  • VIDEO INPUT
    Frequency: Fh: 30~62kHz, Fv: 50~85Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7/1.0 Vp-p)
  • POWER MANAGEMENT
    Meets TCO’99 and ENERGY® standards
