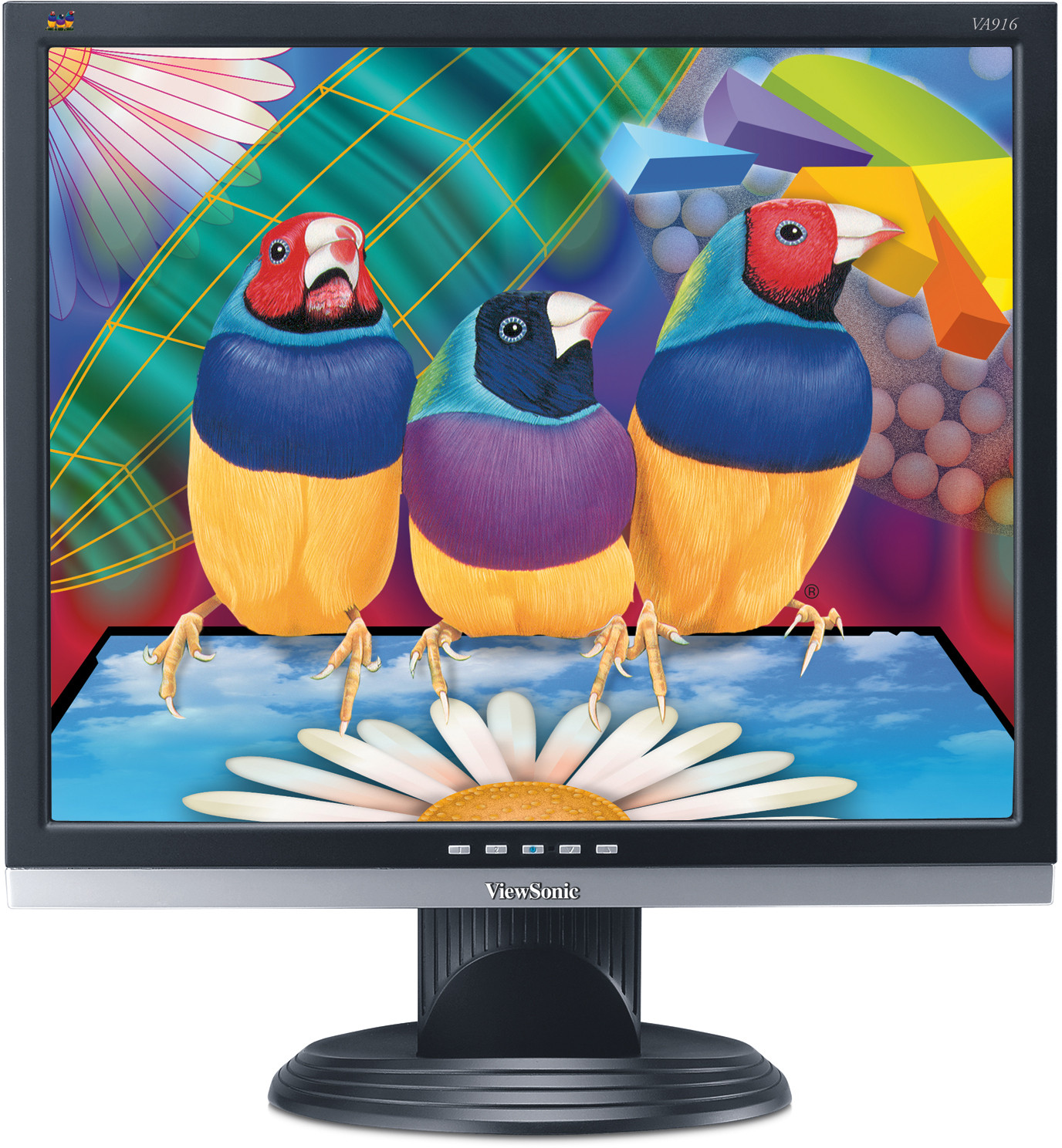

ViewSonic VA916 48 cm / 19" LCD MONITOR VA SERIES WITH 5MS VIDEO RESPONSE TIME

LCD

Type:	48 cm / 19" TN colour TFT active matrix SXGA LCD
Contrast Ratio:	1000:1 (typ.), 2000:1 DCR (typ.)
Viewing Angles:	170° horizontal, 160° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Brightness:	300cd/m²
Display Area:	37.6cm horizontal x 30.1cm vertical, 48.3 cm diagonal
Response Time:	5ms (off-on-off) (typ.)
Light Source:	Long life, 40000 (min.)
Panel Surface:	140MHz
Pixel Pitch:	0.294mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
DIMENSIONS

W x H x D mm: 412 x 435 x 194 (with stand)

412 x 355 x 64 (without stand)

470 x 510 x 140 (packaging)
PACKAGE CONTENTS

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, CONTENT ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONNECTOR

Analogue: 15-pin mini D-Sub (detachable cable)

Power: 3-pin AC plug (CEE22)
POWER

Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumption: 32 watt (typ.), <1 watt in power save mode

CONTROLS

Basic:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall

OPERATING CONDITIONS

Temperature: 0°C–40°C

Humidity: 10%–90% (non-condensation)
WEIGHT

Net: 3.8kg (with stand), 3.3kg (without stand)

Gross: 5.0kg
VIDEO INPUT

Frequency: Fh: 30–82kHz,
Fv: 50–75 Hz

Sync: H/V separate (TTL)

Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
POWER MANAGEMENT

TCO’03 and ENERGY STAR standards
ERGONOMICS

Tilt: Down 5°, Up 20°
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm

PC:	VGA up to 1280 x 1024 non-interlaced
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced

Analogue:	15-pin mini D-Sub (detachable cable)
Power:	3-pin AC plug (CEE22)

Voltage:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption:	32 watt (typ.), <1 watt in power save mode

Temperature:	0°C–40°C
Humidity:	10%–90% (non-condensation)

Net:	3.8kg (with stand), 3.3kg (without stand)
Gross:	5.0kg
