Key Features

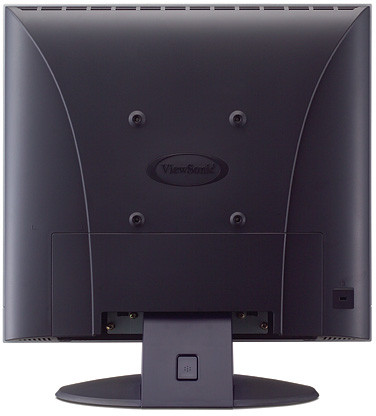

VA712
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 43cm / 17" colour TFT active matrix SXGA LCD
    Contrast Ratio: 350:1 (typ.)
    Viewing Angles: 160° horizontal, 120° vertical (at 10:1)

    160° horizontal, 140° vertical (at 5:1)
    Brightness: 350cd/m² (typ.)
    Display Area: 338mm horizontal x 270mm vertical, 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 8ms (typ)
    Light Source: Long life, 50,000 hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.264mm
    Colour Support: 16.2M colours (6-bit +2-bit FRC)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 (up to 75 Hz)
    Mac®: Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz)
  • DIMENSIONS
    W x H x D mm: 386 x 411 x 177 (with stand)
  • AUDIO
    Speaker: 2 x 1 watt
  • INPUT SIGNAL
    Frequency: Fh: 30~82kHz

    Fv: 50~85Hz
    Video: RGB analogue (75 ohms, 0.7 Vp-p)
    Sync: H/V separate (TTL)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (captive cable)
    Audio: Stereo mini audio line in
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz (auto switch), external power supply
    Consumption: 51 Watt (typ.)
  • CONTROLS
    OSD: Auto image adjust, brightness, contrast, input selection, ViewMatch® colour adjust (sRGB, 9300K, 6800K, 6500K), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V.position, fine tune, sharpness), setup menu (language, resolution notice) OSD position, OSD timeout, OSD background, memory recall
    Physical: Power on/off, menu, up, down, select
  • OPERATING CONDITIONS
    Temperature: 0°C to 40°C
    Humidity: 10% to 90% (no condensing)
  • WEIGHT
    Net: 4.3kg
  • POWER MANAGEMENT
    Meets TCO'99 and ENERGY STAR® standards
  • ERGONOMICS
    Down 5°, Up 20°
