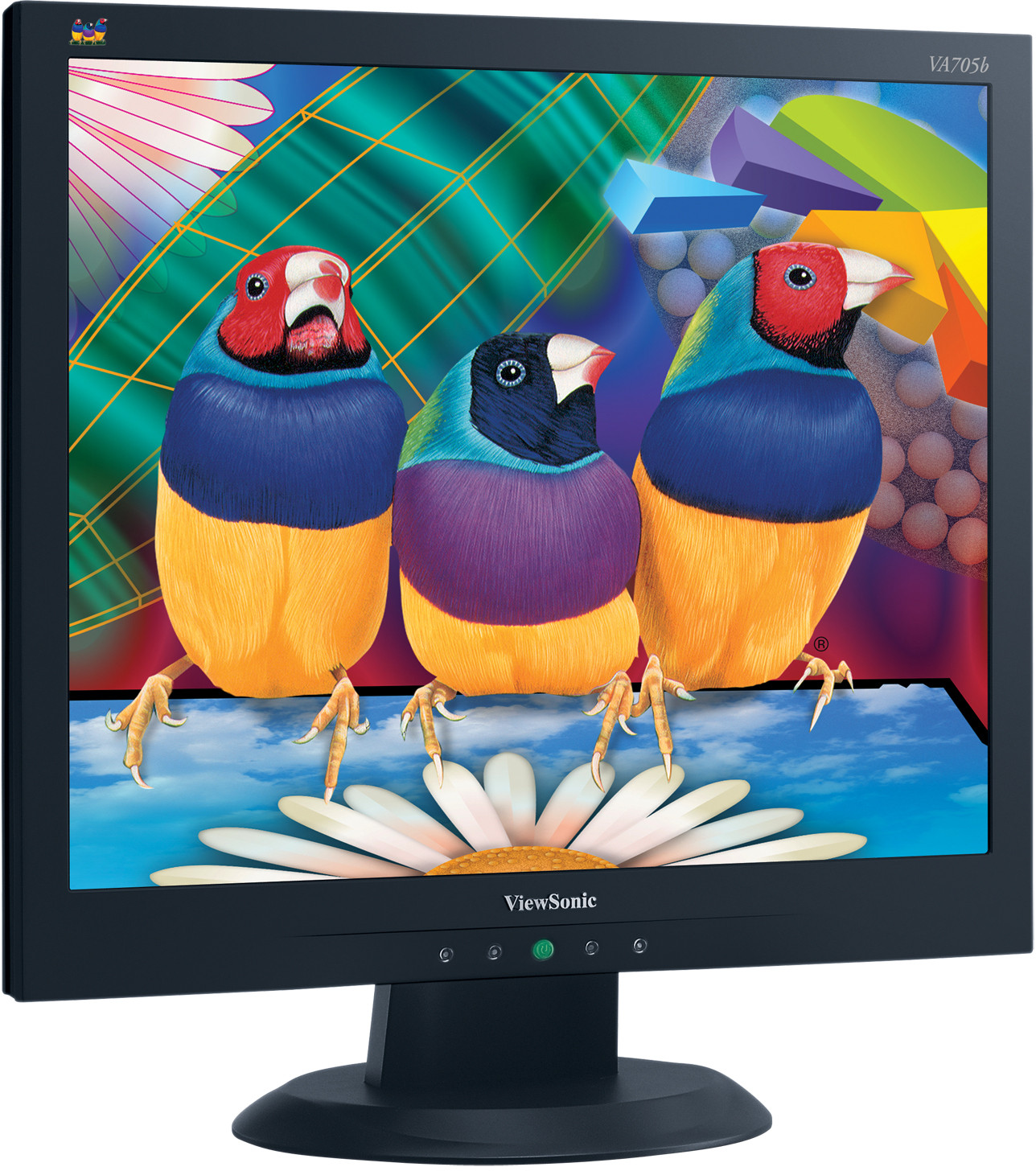

ViewSonic VA705b 43cm/17” LCD displays - ViewSonic United Kingdom

LCD

Contrast Ratio:	1000:1 (typical)
Viewing Angles:	160° (H), 160° (V)
Optimum Resolution:	1280×1024
Response Time:	5 (typical)
Light Source:	50,000 Hours (minium)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.264 x 0.264 (mm)
Colour Support:	16.7 Millions (Millions of colours)
Size:	43cm / 17" Color TFT Active Matrix LCD
Brightness:	250 (typical)
Dynamic Contrast Ratio:	6000:1 (typical))

COMPATIBILITY

PC: VGA up to 1280×1024 Non Interlaced

Mac®: 1280×1024 Non Interlaced
DIMENSIONS

Physical With Stand: 379 × 400 × 210 (mm) / 14.92 × 15.75 × 8.27 (inch)
INPUT

Sync: Separate Sync

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–82kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Power: Built-in power Adapter, 3-Pin plug
POWER

Voltage: AC 100-240V (Universal); 50/60Hz(Switch)

Consumption: 19W (typical) / 20.5W (maximum)

Save Mode (W): <= 1W

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
OSD:	Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 6500K, 5400K, User Color [R, G, B], Information, Manual Image Adjust H/V Position, Horizontal Size, Fine Tune, Sharpness, Setup Menu Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Memory Recall

VESA MOUNT COMPLIANT

100 × 100
WEIGHT

Net: 4.03 kg / 8.88 lb
OPERATING CONDITIONS

Humidity: 10 - 90 (%)(non-condensing)

Temperature: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1280×1024 Non Interlaced
Mac®:	1280×1024 Non Interlaced

Analogue:	1×15 pin mini D-sub
Power:	Built-in power Adapter, 3-Pin plug

Humidity:	10 - 90 (%)(non-condensing)
Temperature:	0 - 40 (°C) / 32 - 104 (°F)
