Key Features

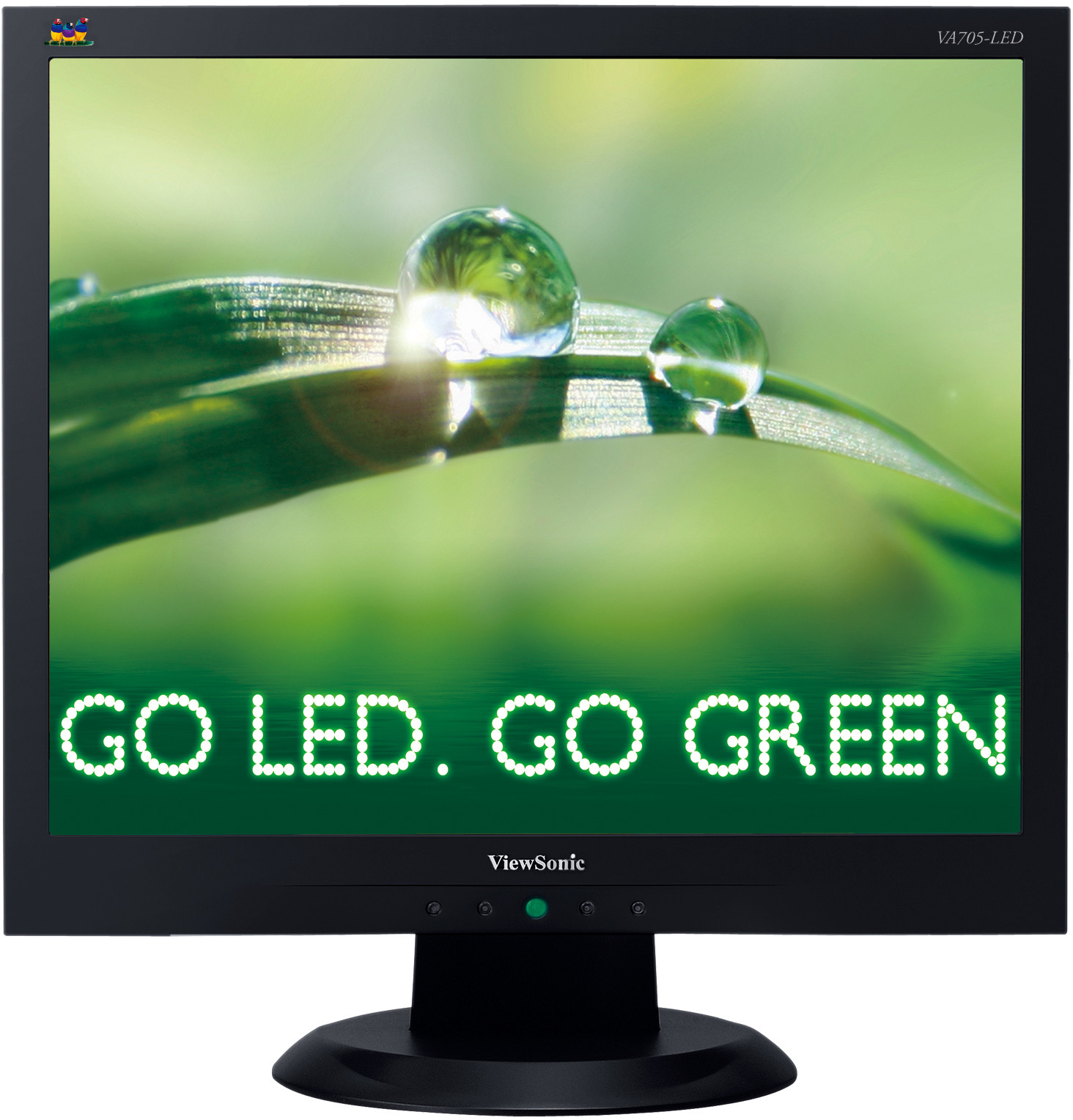

VA705-LED
Product Description
The VA705-LED, a 43cm/17” LED display, is a professionally built monitor for government and corporate applications. Its small size and SXGA 1280 x 1024 resolution allows for an efficient working environment. This Energy Star® certified display comes with a long-lasting power-saving LED backlight as well as ViewSonic’s exclusive ECO Mode that reduces power consumption based on different lighting environment and minimizes maintenance effort and costs. Embedded dynamic contrast ratio technology not only enhances the dark and bright contrast of images, but helps to produce a high 10,000,000:1 ratio to deliver perfect image performance. The built-in sRGB colour correction technology revives image colour and captures realistic images for consistent colour performance for professional presentations, photographs, graphic design or printing. The VA705-LED provides an eco-friendly solution and increases productivity, it is ideal for office applications.
Visit Us
  • www.viewsonic.com
  • LCD
    Contrast Ratio: 1,000:1 (typ.)
    Viewing Angles: 170° / 160° (typ.)
    Display Area: 43cm (17”)
    Optimum Resolution: 1280 x 1024
    Response Time: Typ. 5 ms
    Aspect Ratio: 4:3
    Panel Surface: Anti-glare, hard-coating (3H)
    Pixel Clock: 0.264 mm x 0.264 mm
    Brightness: 250 cd / m² (typ.)
    Dynamic Contrast Ratio: 10,000,000:1
    Backlight: White-light LED
    Backlight Life: 40,000 hours (min.)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024
    Mac®: MAC up to 1280 x 1024
  • DIMENSIONS
    Physical With Stand: 379 x 400 x 210mm (14.92” x 15.74” x 8.26”)
    Physical Without Stand: 379 x 337.4 x 68mm (14.92” x 13.28” x 2.67”)
  • INPUT
    Sync: Separate Sync
    Analogue: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
    Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
  • CONNECTOR
    Analogue: 15-pin mini D-sub x 1
    Power: Internal Power Board , 3-pin Plug (CEE22) x 1
  • POWER
    Voltage: AC 100 - 240V (universal); 50 / 60 Hz
    Consumption: 20W (typ.); Optimise: 15W (typ.); Off/Standby <= 0.5W
  • VESA® MOUNT
    100mm x 100mm
  • ERGONOMICS
    Tilt: 20° ~ -3°
  • WEIGHT
    Net With Stand: 2.91 Kg (6.41 lbs)
    Net Without Stand: 2.56 Kg (5.64 lbs)
  • OPERATING CONDITIONS
    Humidity: 10% to 90% (non-condensing)
    Temperature: 32° F to 104° F (0° C to 40° C)
