Key Features

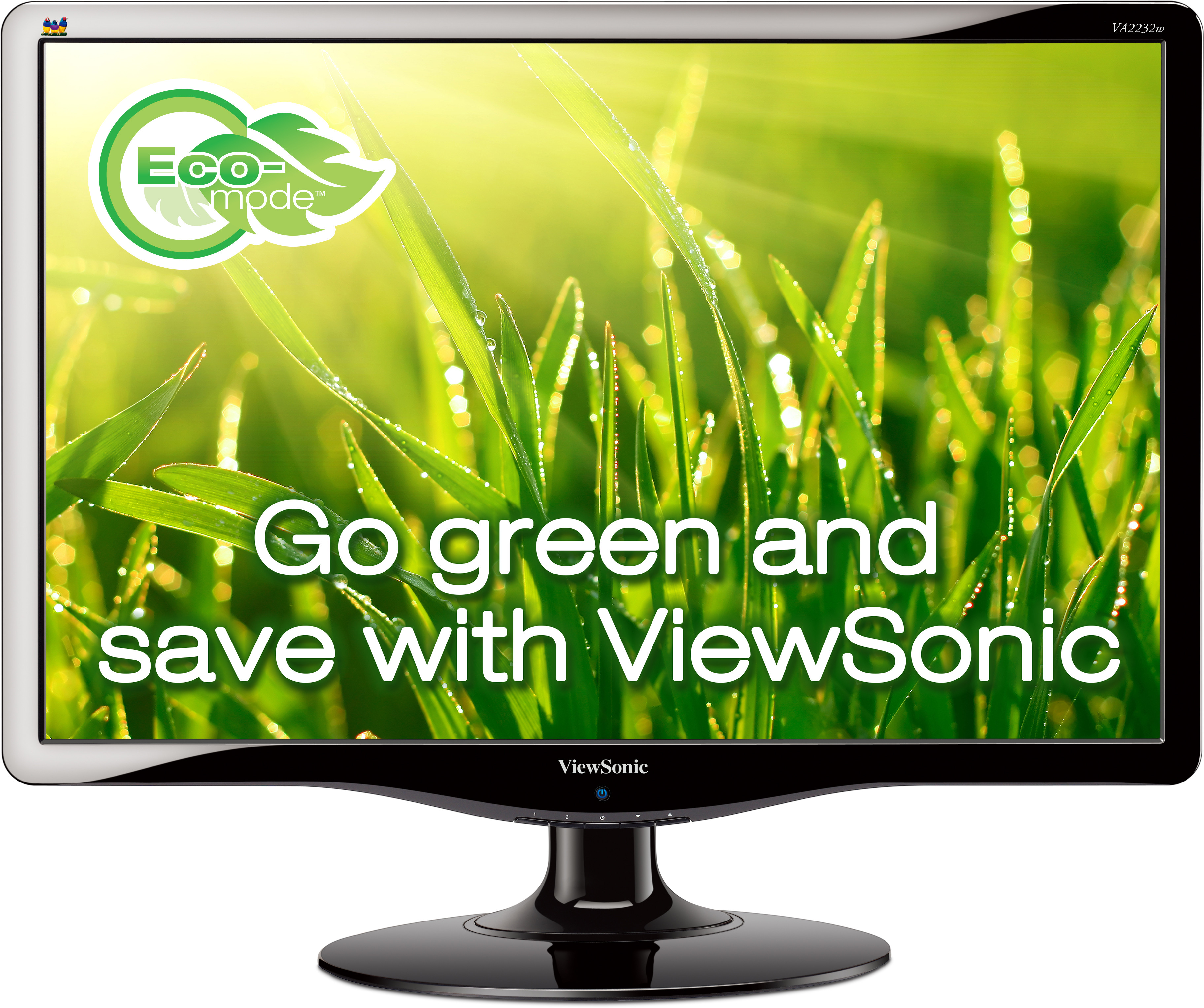

VA2232wa
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Contrast Ratio: 1,000:1
    Viewing Angles: 170° (H), 160° (V)
    Optimum Resolution: 1680 × 1050 native resolution
    Response Time: 5ms Typical
    Light Source: 50,000 hrs minimum
    Panel Surface: Anti-Glare, Hard coating(3H
    Pixel Pitch: 0.282 × 0.282 (mm)
    Colour Support: 16.7 M
    Size: 56cm/22" Wide Colour a-Si TFT Active Matrix LCD 16:10 aspect ratio
    Brightness: 300 Typical
    Dynamic Contrast Ratio: 100,000:1
  • COMPATIBILITY
    PC: VGA up to 1680 × 1050 Non Interlaced
    Mac®: Mac OS up to 1680 × 1050
  • DIMENSIONS
    Physical With Stand: 510 × 416.2 × 195.4 (mm) / 20.1 × 16.4 × 7.7 (in)
  • INPUT
    Sync: Separate
    Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
    Frequency: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA)
  • CONNECTOR
    Analogue: 1×15 pin mini D-sub
    Power: Built-in power Adapter, 3-Pin plug
  • POWER
    Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
    Consumption: 38W Typical / 45W Maximum
    Save mode: ≦0.5W
  • CONTROLS
    Basic: [1], [2], Power, Down[▼], Up[▲]
    OSD: Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K,
    6500K, 5000K, User Color [R, G, B]
    Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune,
    Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu,
    Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background,
    Auto Power Off, Memory Recall
  • VESA MOUNT COMPLIANT
    100mm × 100mm
  • ERGONOMICS
    20~-5 degrees
  • WEIGHT
    Net: 4.7 kg / 10.36 lb
  • OPERATING CONDITIONS
    Humidity: 5 - 90 (%)
    Temperature: 0 - 40 (°C) / 32 - 104 (°F)
