ViewSonic VA2046a-LED Sleek and Stylish Display

Key Features

Product Description

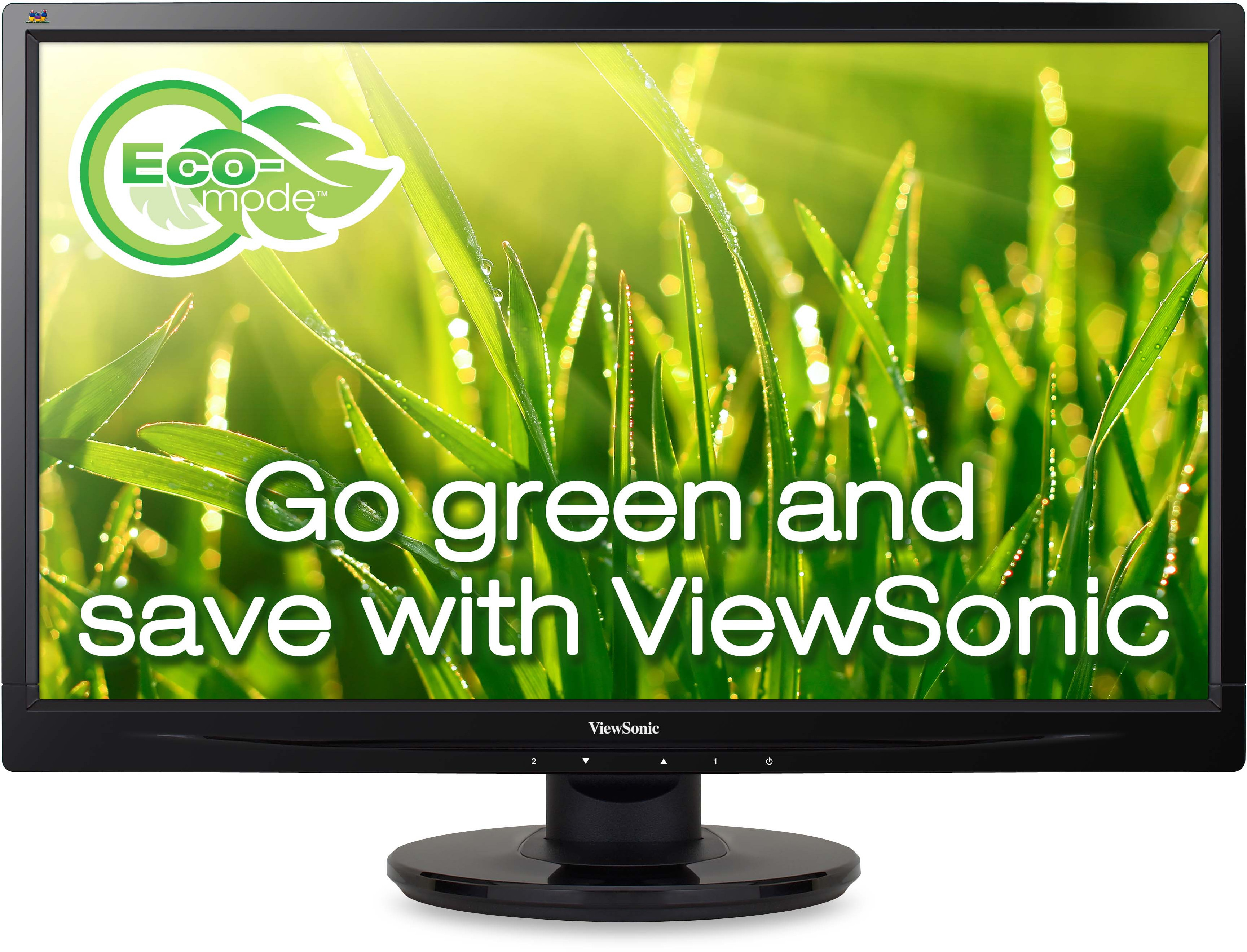

The ViewSonic VA2046a-LED is a 20” widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With 1600x900 resolution and a 10M:1 dynamic contrast ratio, the VA2046a-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. VGA inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an efficient LED backlight and energy-saving Eco mode, the VA2046a-LED is an environmentally friendly display choice. In addition, a 2-year warranty, along with one of the industry’s best pixel performance policies provides great value for the stylish, high-performance VA2046a-LED display.

Visit Us

www.viewsonic.com

LCD

Contrast Ratio:	600:1
Viewing Angles:	90° / 65°
Brightness:	200cd/m²
Display Area:	20” wide (19.5” viewable)
Optimum Resolution:	1600 x 900
Response Time:	5ms
Panel Surface:	Anti-glare Type, 3H Hardness
Dynamic Contrast Ratio:	10,000,000:1
Backlight:	White-light LED
Backlight Life:	40,000hr (min.)

COMPATIBILITY

PC: VGA up to 1600 x 900 Non-interlaced

Mac®: MAC up to 1160 x 900

DIMENSIONS

Physical With Stand:	478.2 x 360.2 x 197.6 (mm) 18.8" x 14.2" x 7.8"(inch)
Physical Without Stand:	478.2 x 301.8 x 49.0 (mm) 18.8" x 11.9" x 1.9"(inch)
Packaging:	530 x 395 x 116(mm) 20.9" x15.6" x 4.57"(inch)

PACKAGE CONTENTS

Power Cable *1, D-Sub*1, Quick Start Guide *1, ViewSonic CD Wizard *1
INPUT

Digital: N/A

Analogue: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)

Frequency: Fh: 24 ~ 82kHz; Fv: 50 ~ 75Hz
CONNECTOR

Digital: N/A

Power: Internal Power Board , 3-pin Plug (CEE22) x 1

USB: N/A

Analog: RGB Analog
POWER

Voltage: AC 100 - 240V (Universal); 50 / 60Hz

Consumption: 18W

Eco Mode: Yes

Optimize: 14W

Conserve: 12W
OPERATING CONDITIONS

Temperature: 32°F to 104°F (0°C to 40°C)

Humidity: 5% to 90% (No Condensation)
VESA® MOUNT

100mm * 100mm
ERGONOMICS

Tilt: -5° ~ 18°

Swivel: N/A

Rotation: N/A
AUDIO

Speakers: N/A
WEIGHT

Gross: 3.97Kg (8.75lbs)

Net With Stand: 3.0Kg (6.6lbs)

Net Without Stand: 2.6Kg (5.73lbs)

PC:	VGA up to 1600 x 900 Non-interlaced
Mac®:	MAC up to 1160 x 900

Digital:	N/A
Analogue:	RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Frequency:	Fh: 24 ~ 82kHz; Fv: 50 ~ 75Hz

Digital:	N/A
Power:	Internal Power Board , 3-pin Plug (CEE22) x 1
USB:	N/A
Analog:	RGB Analog

Voltage:	AC 100 - 240V (Universal); 50 / 60Hz
Consumption:	18W
Eco Mode:	Yes
Optimize:	14W
Conserve:	12W

Temperature:	32°F to 104°F (0°C to 40°C)
Humidity:	5% to 90% (No Condensation)

Gross:	3.97Kg (8.75lbs)
Net With Stand:	3.0Kg (6.6lbs)
Net Without Stand:	2.6Kg (5.73lbs)

Tilt:	-5° ~ 18°
Swivel:	N/A
Rotation:	N/A
