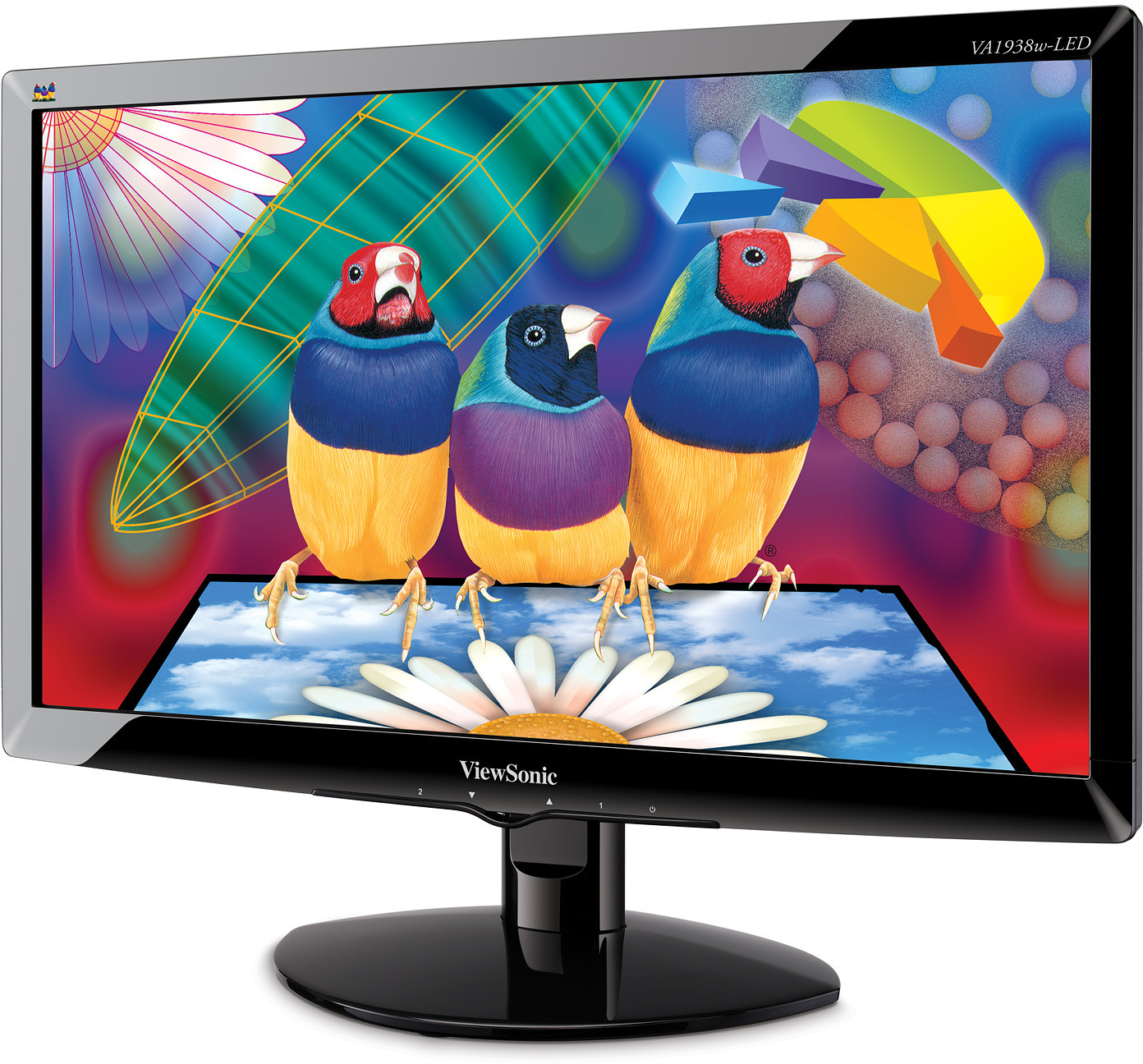

ViewSonic VA1938w-LED 47cm/18.5" LED DISPLAY

LCD

Contrast Ratio:	1000:1 (Typical)
Viewing Angles:	170° (H), 160° (V)
Optimum Resolution:	1366×768
Response Time:	5 (typical)
Light Source:	30,000 (minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.3 × 0.3 (mm)
Colour Support:	16.7 Millions
Size:	47cm 18.5" wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Brightness:	250 (Typical)
Dynamic Contrast Ratio:	10,000,000:1

COMPATIBILITY

PC: VGA up to 1366×768 Non Interlaced

Mac®: 1366×768 Non Interlaced
DIMENSIONS

Physical (WxHxD): 440.37(W) x 340.8(H) x 179.9(D)mm
INPUT

Sync: Separate Sync

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–82kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: 1×DVI-D

Power: Internal Power Adapter, 3-pin plug (CEE22)
POWER

Voltage: AC 100-240V (Universal); 50/60Hz

Consumption: 18 W (typical) /22W (maximum)

Save mode: ≦0.5W

CONTROLS

Basic:	[1], [2], power button, Down[▼], Up[▲]
OSD:	Auto Image Adjust Contrast/Brightness, Input Select, D-SUB, DVI, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B], Information Manual Image Adjust, H/VPosition, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Memory Recall

VESA MOUNT COMPLIANT

100 × 100
WEIGHT

Net: 2.7 kg (5.94 lbs
OPERATING CONDITIONS

Humidity: 10 - 90 (%)

Temperature: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1366×768 Non Interlaced
Mac®:	1366×768 Non Interlaced

Analogue:	1×15 pin mini D-sub
Digital:	1×DVI-D
Power:	Internal Power Adapter, 3-pin plug (CEE22)

Humidity:	10 - 90 (%)
Temperature:	0 - 40 (°C) / 32 - 104 (°F)
