Key Features

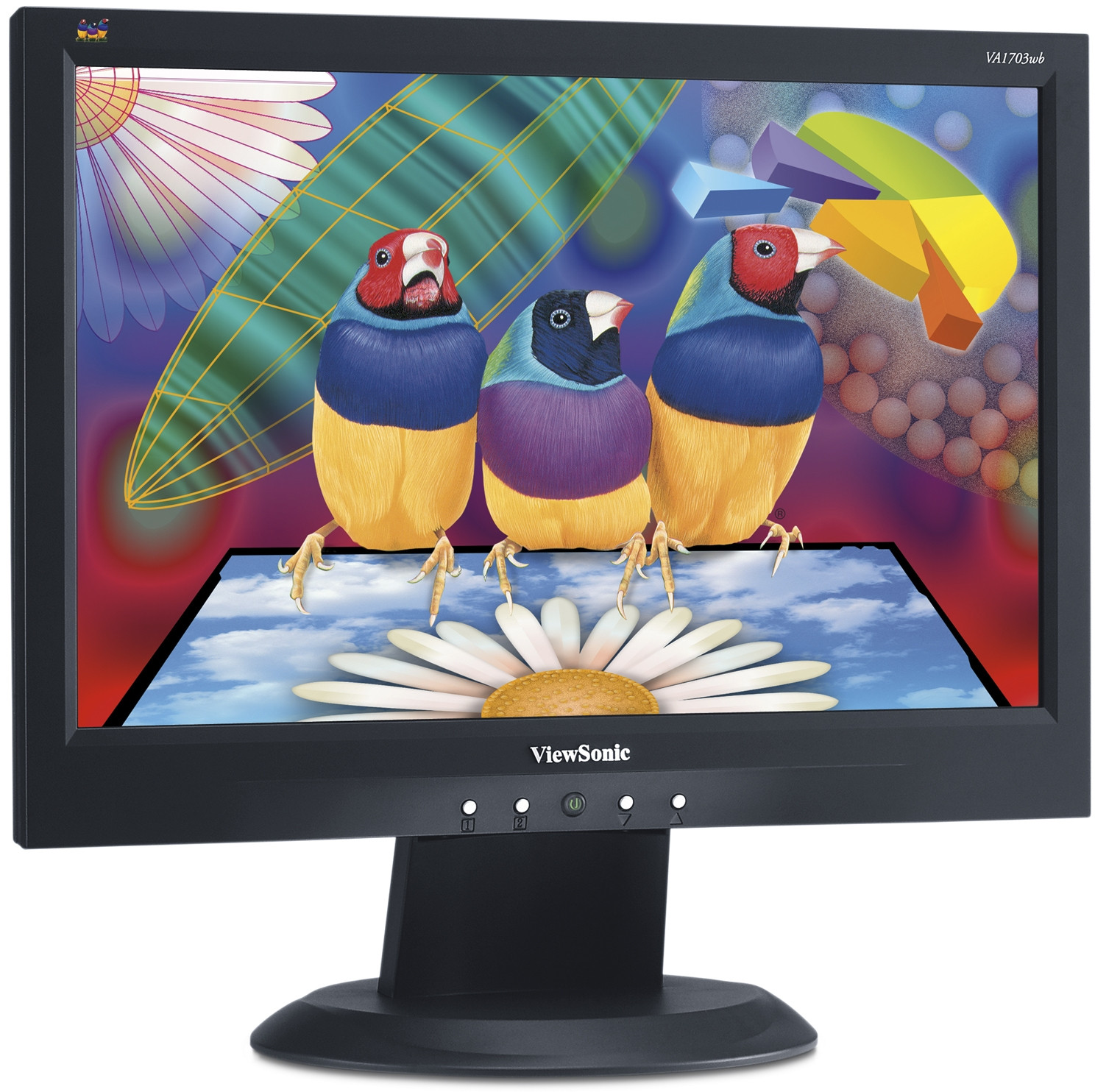

VA1703wb
Product Description
ViewSonic's 17” VA1703wb LCD brings panoramic widescreen to everyone. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS, side-by-side full-page layouts, and immersive gaming that virtually surrounds the user. With ClearMotiv® video response, you get to enjoy extreme clarity, amazing colour and stunning brightness.The VA1703wb delivers on ViewSonic's tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It's the easy choice for gamers, home/small office users and corporate professionals.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 17” Wide TN colour TFT active matrix WXGA+ LCD
    Contrast Ratio: 500:1 (typ.)
    Viewing Angles: 150° horizontal, 130° vertical (at 10:1)

    160° horizontal, 150° vertical (at 5:1)
    Brightness: 250 cd/m² (typ.)
    Display Area: 36.7cm horizontal x 23.0cm vertical, 43.2cm diagonal
    Optimum Resolution: 1440 x 900@60Hz
    Response Time: 8ms (off-on-off) (typ.)
    Light Source: Long life, 30000 (min.)
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.255mm
    Colour Support: 262k colours supported (6-bit)
    Pixel Clock: 135MHz
  • COMPATIBILITY
    PC: VGA up to 1440 x 900 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
  • DIMENSIONS
    Physical With Stand: 407 x 375 x 210
    Physical Without Stand: 407 x 293 x 63
    W x H x D mm: 456 x 420 x 156
  • PACKAGE CONTENTS

    LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-sub (detachable cable)
    Power: 3-pin AC plug (CEE22)
  • POWER
    Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Consumption: 25 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution,
    H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu
    (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 10% – 80% (non-condensation)
  • WEIGHT
    Net With Stand: 3.2kg
    Net Without Stand: 2.9kg
    Gross: 4.0kg
  • VIDEO INPUT
    Frequency: Fh: 24–82kHz, Fv: 50–75 Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
  • POWER MANAGEMENT
    Meets MPR II and ENERGY STAR standards
  • SECURITY
    Kensington security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 75mm x 75mm
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
