ViewBoard
SWB7051
Key Features
Product Description

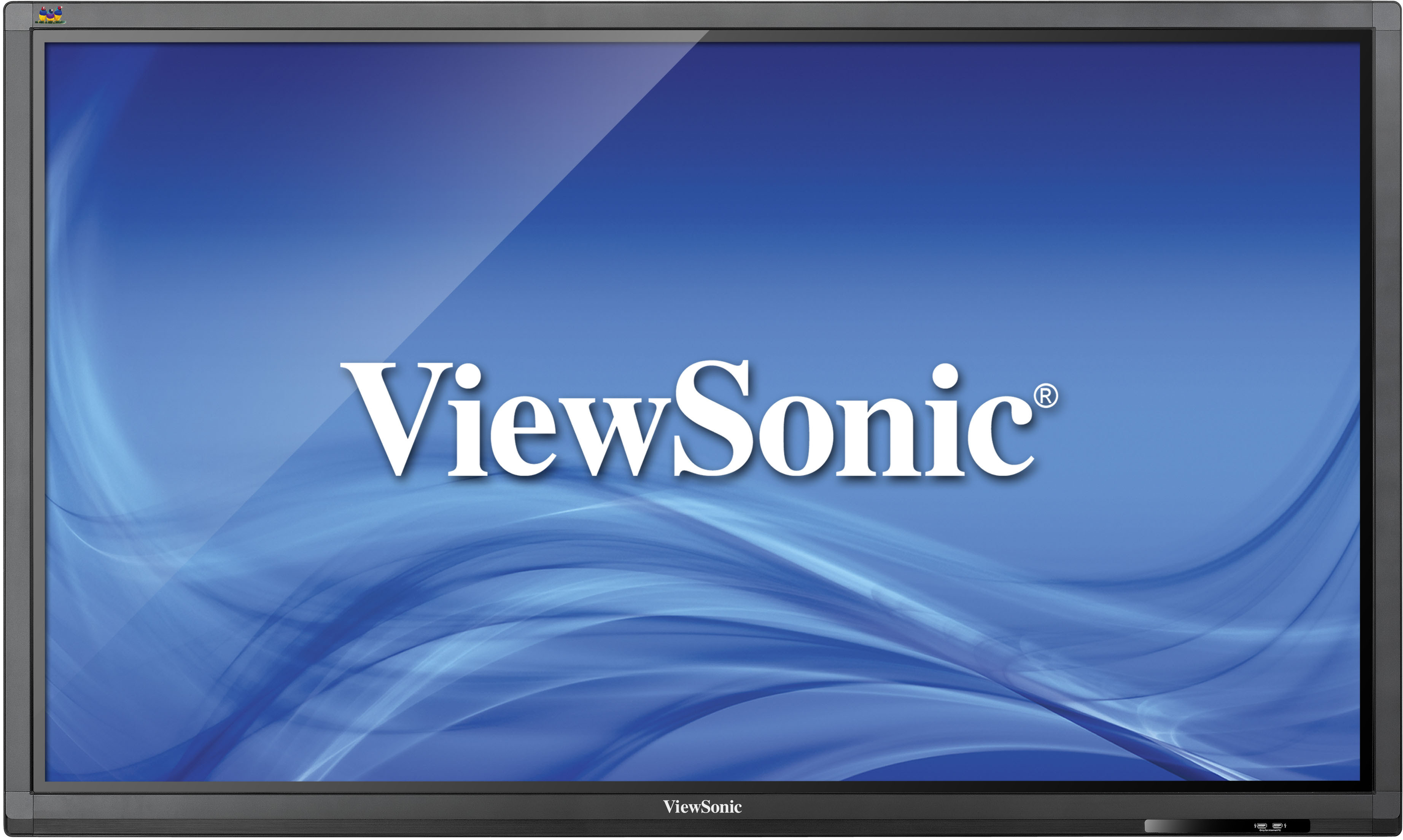

The ViewSonic 69.5” SWB7051 is the ideal interactive display solution for in-classroom teaching, online training sessions, video conferencing and more. This 6-point touch-enabled Smart White board allows two or more users to simultaneously write and draw directly on the display using their fingers or styli. A Full HD LED screen guarantees crisp and vivid image quality with 400-nit brightness, the SWB7051 provides better visual performance in well-lit rooms. Visually attractive, the SWB7051 has an ergonomic design with a tempered glass overlay, anti-glare treatment and rounded corners. Best of all, its built-in PC and complimentary ViewBoard software make it perfect for running a wide range of Microsoft Windows 8 apps.
Visit Us
- www.viewsonic.com
-
LCD
Type: TFT LCD Module with LED Backlight Effective Viewing Area: 1538.88 (H) x 865.62 (V) (69.5” Diagonal) Contrast Ratio: 4000:1 Typ. Viewing Angles: 88º Horizontal, 88º Vertical Response Time: 6ms Aspect Ratio: 16:9 Native Resolution: 1920 x 1080 S-Video-In: 480i, 576i Size: 69.5” Backlight: LED Backlight Life: 50,000 Hours Typ. -
COMPATIBILITY
RGB PC / HDMI PC: Refer to timing table CVBS: 480i HDMI: 480i, 480p,720p, up to 1080p YPbPr: 480i, 480p,720p, up to 1080p -
DIMENSIONS
Physical (WxHxD): 64.9 x 39.3 x 3.8 (inches) / 1649 x 999 x 97 (mm) Packaging: 70.3 x 44.9 x 10.8 (inches) / 1785x1140x275 (mm) -
AUDIO
RCA: x1 Speakers: 15W x2 -
CONNECTOR
Audio Out: x1 HDMI (input): x2 RS-232: x1 RGB: x2 USB: x6 Audio: Mini-stereo x2 PC-VGA-Out: x1 LAN: x1 Mic In/Out: x1 CVBS: x1 -
POWER
Voltage: 100-240VAC +/- 10% Wide Range -
CONTROLS
Picture: Picture Mode, Contrast,Brightness, Color, Tint, Sharpness, Color Temp., Noise Reduction Set Up: OSD Language, TT Language, Hearing Impaired, PVR File System, Record List, Aspect Ratio, Blue Screen, Fist Time Installation, Reset, Software Update (USB) Configuration 1: Time: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer Configuration 2: Lock: Lock System, Set Password, Block Program, Parental Guidance, Key Lock Physical: POWER, INPUT, PC/VGA, VOL+, VOL-, ZOOM, ENERGY SAVING Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF MODE, AD Switch -
VESA® MOUNT
600 x 600 -
INCLUDED ACCESSORIES
VGA Cable x1
Power Cable x4
Remote Control x1
USB Cable x1
Audio Cable x1
Stylus x3
User Manual CD Wizard x1 -
WEIGHT
Gross: 187.4 (lb) / 85 (kg) Net: 165.3 (lb) / 75 (kg) -
OPERATING CONDITIONS
Humidity: 20% ~ 80% Non-condensing Temperature: 32°F to 104°F (0°C to 40°C) -
WARRANTY
**Warranty offered may differ from market to market -
VIDEO I/O
YPbPr in: x1 -
AUDIO I/O
SPDIF out: x1 -
INPUT
USB Type A: x1 USB Type B (mouse control): x2 -
BUILT-IN PC
Processor: Intel Core i5 Graphics: Integrated Intel HD 3000 Sound Card: Integrated High Definition Audio Stereo Memory: DDR III 4GB Storage: 2.5” SATA2 HDD 500GB Networking: Integrated 10/100/1000M Adaption
