Key Features

SD-Z226
Product Description

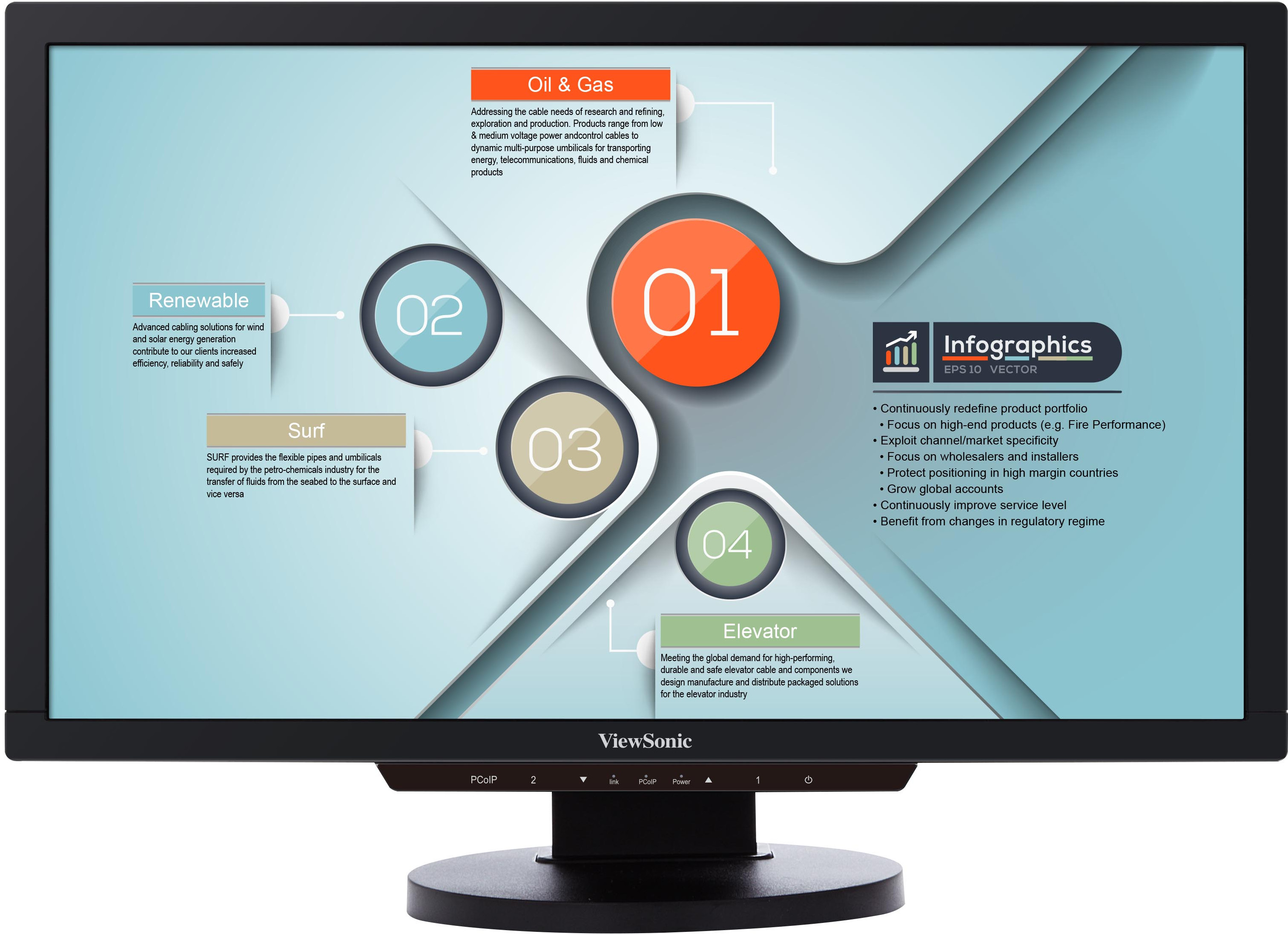

The SD-Z226 is a 21.5” integrated zero client monitor. It is based on the Teradici 2321 processor, with hardware accelerated PCoIP support. The SD-Z226 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in VMware-based networks. True zero client features, with no local memory or moving parts, delivers the ultimate in energy savings and reliability. The full ergonomic function, including tilt, swivel, pivot and 100mm height adjustment, combined with the VMware-certified design, guarantees high performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PC’s.
Visit Us
  • www.viewsonic.com
  • SYSTEM
    CPU Processor: Teradici Tera2321
    Operating System: VMware PCoIP
    System Memory: DDR3 512MB (256MBx2)
    Storage Memory: None
  • DISPLAY
    Type: 21.5" Color active matrix TFT LCD
    Display Area: 21.5"
    Optimum Resolution: 1920 x 1080
    Brightness: 250 cd/m2 (Typ)
    Contrast Ratio: 1,000 :1 (typ)
    Dynamic Contrast Ratio: 20,000,000:1
    Viewing Angles: 170°/ 160°
    Response Time: Tr+Tf: 5ms(typ)
    Backlight: WLED
    Backlight Life: 30000 Hrs (Min)
    Touch Panel: Anti-Glare type, Hard-coating (3H)
  • INPUT/OUTPUT
    USB: USB 2.0 x4
    LAN/Ethernet: RJ45 x1
    Audio: Microphone in x1 Headphone out x1
    Video: RGB input x1 DVI-I output x1
    Power: AC in x1
    Speakers: 2W x2
  • COMPATIBILITY
    PC: VGA up to 1920 x 1080 Non Interlaced
    Mac®: Power Mac up to 1920 x 1080
  • POWER
    Voltage: AC 90-264V, 50/60Hz, 1.5A Max
    Consumption: 46W (typ) EcoMode: 24W (typ)
  • ERGONOMICS
    Tilt: 25° ~ -5°
    Swivel: 340°
    Pivot: 90°
    Height Adjust: 0-100 mm
  • OPERATING CONDITIONS
    Temperature (º F / º C): 32°~95°F / 0°~35°C
    Humidity: 15 % ~ 90%, Non-Condensation
  • DIMENSIONS
    Physical (inch / mm): 20.17” x 14..46” x 8.01” 512.4 x 367.4 x 204.3mm
    Packaging (inch / mm): 22.48” x 15.35” x 6.73” 571 x 390 x 171mm
  • WEIGHT
    Net (lb / kg): 10.78 lbs / 4.89kg
    Gross (lb / kg): 13.89 lbs / 6.3kg
  • WALL MOUNT
    100 x 100mm: 100 x 100mm
  • RECYCLE/DISPOSAL
    Please dispose of in accordance with local, state or federal laws
  • WARRANTY
    **Warranty offered may differ from market to market
  • PACKAGE CONTENTS
    Zero Client Display x1 Power cord x1 Quick Star Guide x1 CD Wizard x1 Compliance information x1 VGA cable x1
    *Actual content may differ from market to market
