Key Features

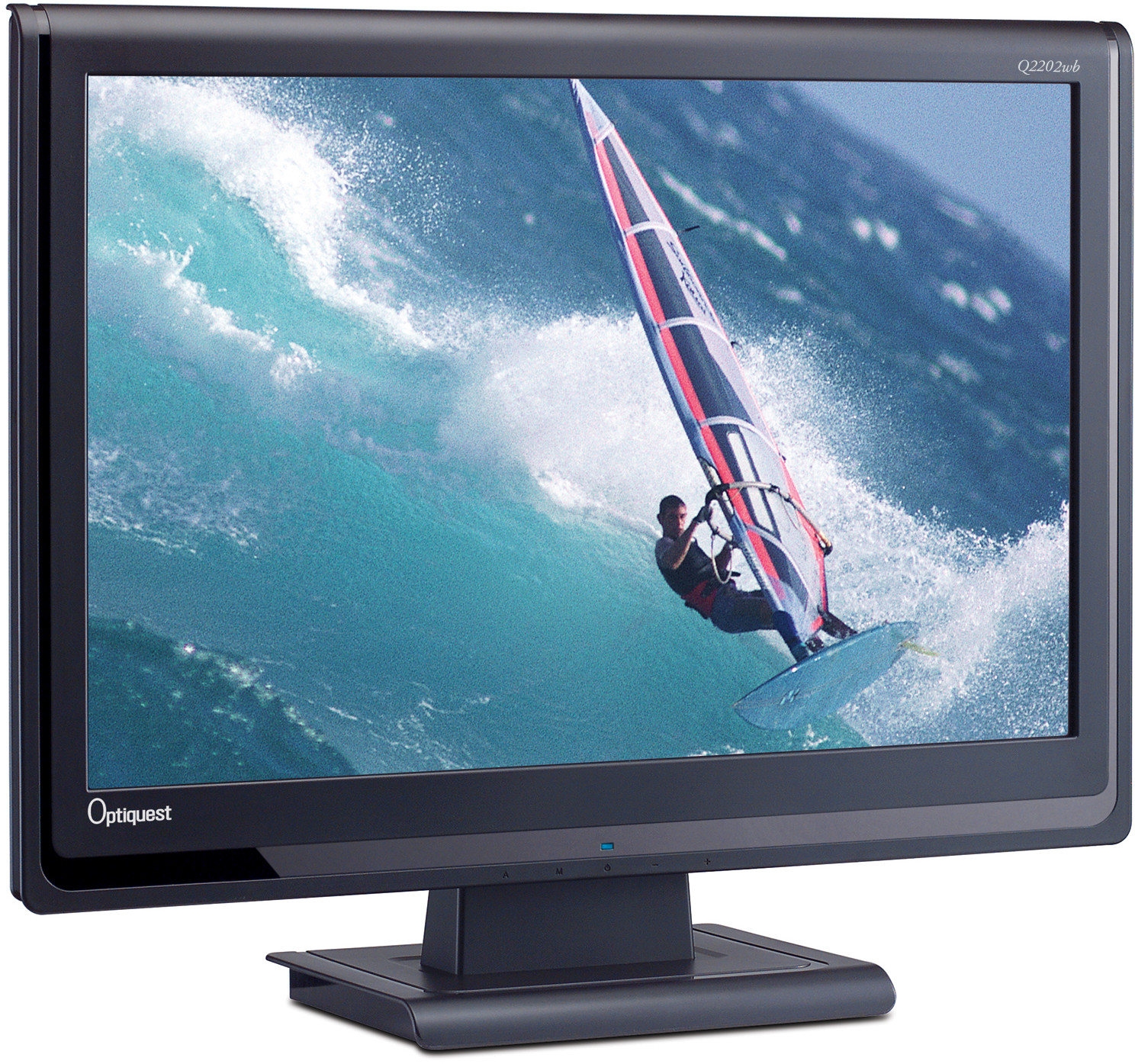

Q2202wb
Product Description
The Optiquest® Q2202wb 55 cm / 21.6" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with 5ms video response for CRYSTAL-CLEAR, BLUR FREE VIDEO, TEXT AND GRAPHICS. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen lets you work in two applications or documents side-by-side, so you get more done in less time. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, stylish Q2202wb.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 56cm / 22" (21.6" viewable) color TFT active matrix WSXGA LCD
    Contrast Ratio: 1000:1 (typ)
    Viewing Angles: 170º horizontal, 160º vertical @ contrast ratio > 10:1

    170° horizontal, 170° vertial @ contrast ratio 5:1
    Brightness: 300 cd/m2 (typ)
    Display Area: 465mm (horizontal), 290mm (vertical), 549mm diagonal
    Optimum Resolution: 1680x1050
    Response Time: 5ms (typ)
    Light Source: Long life, 50,000 hrs. (typ)
    Panel Surface: Anti-glare
  • COMPATIBILITY
    PC: VGA up to 1680x1050 (non-interlaced)
    Mac®: G3/G4/G5 up to 1680X1050
  • DIMENSIONS
    Physical With Stand: 526mm x 433mm x 173mm (20.7" x 17.0" x 6.8")
    Physical Without Stand: 526mm x 371mm x 75mm (20.7" x 14.6" x 3.0")
  • PACKAGE CONTENTS
    LCD display, power cable, video cable, User Guide
  • WARRANTY
    One-year limited warrranty on parts, labor and backlight
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
  • CONNECTOR
    Analogue: 15-pin mini D-sub
    Power: 3-pin AC plug (CEE22)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz (auto switch)
    Consumption: 45W (typ)
  • CONTROLS
    Basic: Power, 2, up, down, 1
    OnView®: Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, resolution notice, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall
  • OPERATING CONDITIONS
    Temperature: 32-104ºF (0-40ºC)
    Humidity: 20-80% (non-condensing)
  • WEIGHT
    Net With Stand: 4.6 kg (10.1 lb. )
    Net Without Stand: 4.5 kg (9.8 lb. )
    Gross With Stand: 5.8 kg (12.8 lb. )
  • VIDEO INPUT
    Frequency: Fh: 30~80kHz, Fv: 55~75Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analog (75 ohms, 0.7 Vp-p)
  • POWER MANAGEMENT
    ENERGY STAR® standards
  • ERGONOMICS
    Tilt: –5º/+15º
