Key Features
  • 3,500 ANSI Lumens with native Full HD 1080p
  • Energy-efficient SmartEco+ Mode
  • Vertical Lens Shift
  • vColorTuner
  • SuperColor™ technology

PX701HDP
Product Description
The ViewSonic PX701HDP is a high brightness 3,500 ANSI lumens projector featuring a Full HD 1080p resolution that offers impressive visual performance in a brightly lit living room or meeting room. The projector adopts the latest lamp design to extend lamp life of up to 20,000 hours under SuperEco+ mode, effectively reducing lamp replacement and maintenance costs. A digital lens shift allows users to make adjustments by remote control, it’s also compatible with the vColorTuner function for color profile exchange and adjustments. The dual HDMI inputs and USB power supply allow users to connect to a multitude of multimedia devices for gaming, movies, or a wireless dongle for wireless presentation.
  1. Keypad
  2. LED indicator
  3. Power Key
  4. Zoom/Focus
  5. Front IR
  6. Projection Lens

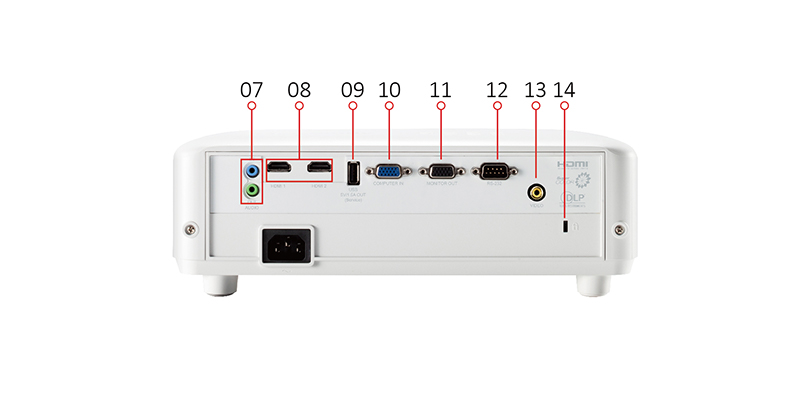

  7. Audio in/out
  8. Dual HDMI
  9. USB Type A
  10. Computer in
  11. Monitor out
  12. RS232
  13. Video
  14. Kensington® Lock Slot
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1080
    Brightness: 3500 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: Lamp
    Light Source Life (Normal): 5000
    Light Source Life (SuperEco): 20000
    Lamp Watt: 203W
    Lens: F=2.0-2.05, f=15.843-17.445mm
    Projection Offset: 110%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1m-10.96m
    (100"@3.32m)
    Keystone: +/- 40° (V)
    Lens Shift V. Range: Yes (+/- 5%)
    Audible Noise (Normal): 30dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/ 1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 300W
    Standby: <0.5W
    Operating Temperature: 0~35℃
    Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-123
    Carry Bag: PJ-CASE-008
