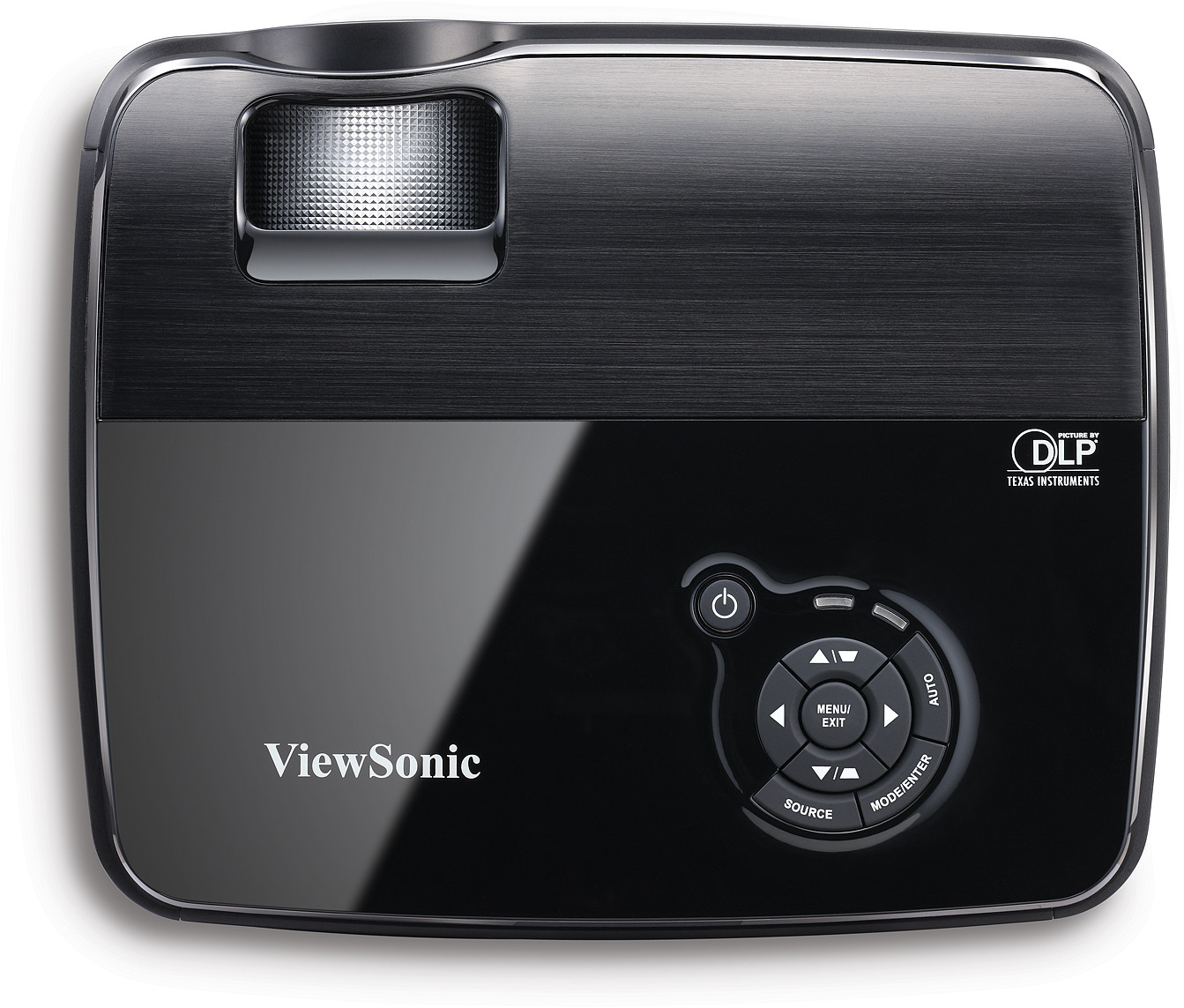

ViewSonic PJD5351 LIGHT, BRIGHT AND VERSATILE DLP PROJECTOR WITH EXTREME SHORT-THROW LENS

COLORS

Black
COMPATIBILITY

PC: VGA to SXGA

Mac®: Up to 1280×1024 (may require Mac Adapter)
DIMENSIONS

Physical (WxHxD): 264 × 96.4 × 225 (mm) / 10.4 × 3.8 × 8.86 (inch)

W x H x D mm: 380 × 324 × 191 (mm) / 14.9 × 12.8 × 7.5 (inch)
PACKAGE CONTENTS

ViewSonic projector, power cable, VGA cable, remote control with batteries, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide), soft case
WARRANTY

3-year limited warranty on parts, 1-year limited warranty on lamp
AUDIO

Speaker: 5W×1

INPUT SIGNAL

Frequency:	Fh: 30-100 KHz, Fv: 50-87 Hz
Computer and Video:	NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps)

CONNECTOR

S-Video Input:	1 × 4-pin mini-DIN
Control:	1×RS-232 (8 Pin Mini-Din)
RGB (input/output):	2 × 15-pin mini D-sub / 1 × 15-pin mini D-sub
Audio (input/output):	1 × 3.5mm mini jack / 1 × 3.5mm mini jack
Component:	2 × 15-in mini -D-Sub (sharer with RGB)
Composite Input:	1 × RCA jack

POWER

Voltage: 90~240VAC (Auto Switching), 50/60Hz (universal)

Consumption: 242W (Typical) / <5W (Stand-by mode)

CONTROLS

OSD:

Display: Screen color, aspect ratio, keystone, position, phase, H. size, digital zoom
Picture: Preset mode: brightest, standard (Video) ,daylight, ViewMatch (PC), cinema, user 1/user 2, brightness, contrast, color, tint, sharpness, BrilliantColorTM, color temp., save settings)
Source: Quick auto search
System setting (Basic): Language , projector position, auto power off, blank timer, panel key lock, timer controller, splash screen
System setting (Advanced): Quick cooling, high altitude mode, DCR, active VGA out, audio settings, menu settings, closed caption, lamp settings, security setting, reset all settings
Information: Current system status (source, preset mode, resolution, color system, equivalent lamp hour)

Keypad:

Standby/On, input, menu

OPERATING CONDITIONS

Temperature: 0ºC-40ºC (32ºF-104ºF)

Humidity: 10% - 90% (non-condensing)

Altitude: 0~1,800m (6000ft), operational up to 3,048m (10000ft)
WEIGHT

Net: 2.5 kg (5.5lb)

DISPLAY

Contrast Ratio:	2400:1 (with DCR)
Display size:	1.0m - 4.6m / 40"-180"
Aspect Ratio:	4:3 (native) & 16:9
Throw Distance:	0.75 - 3.5m
Throw Ratio:	0.9:1
Brightness:	2500 Lumens
Color Gamut:	85 % NTSC 1931 CIE
Lamp life ( Normal / Eco / Dynamic Eco ):	3000 / 4000 hours*
Type:	1.4 cm / 0.55" Digital Micromirror Device (DLP™)
Resolution:	XGA 1024x768 (Native) / SXGA 1280×1024 (compressed)
Keystone:	Vertical digital keystone correction: +/- 40 degrees
Lamp:	189 watt
Lens:	Fixed len / Digital zoom / Manual focus

NOISE LEVEL

Normal: 30dB

Eco-mode: 26dB
LANGUAGE

English, French , German, Italian, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Swedish, Dutch, Turkish, Czech, Portuguese, Thai, Polish, Finnish

PC:	VGA to SXGA
Mac®:	Up to 1280×1024 (may require Mac Adapter)

Physical (WxHxD):	264 × 96.4 × 225 (mm) / 10.4 × 3.8 × 8.86 (inch)
W x H x D mm:	380 × 324 × 191 (mm) / 14.9 × 12.8 × 7.5 (inch)

Voltage:	90~240VAC (Auto Switching), 50/60Hz (universal)
Consumption:	242W (Typical) / <5W (Stand-by mode)

Temperature:	0ºC-40ºC (32ºF-104ºF)
Humidity:	10% - 90% (non-condensing)
Altitude:	0~1,800m (6000ft), operational up to 3,048m (10000ft)

Normal:	30dB
Eco-mode:	26dB
