Key Features
  • Dual HDMI inputs
  • Built in USB type A for charging
  • SuperColor™ technology
  • 2W cube speaker
  • Vertical keystone

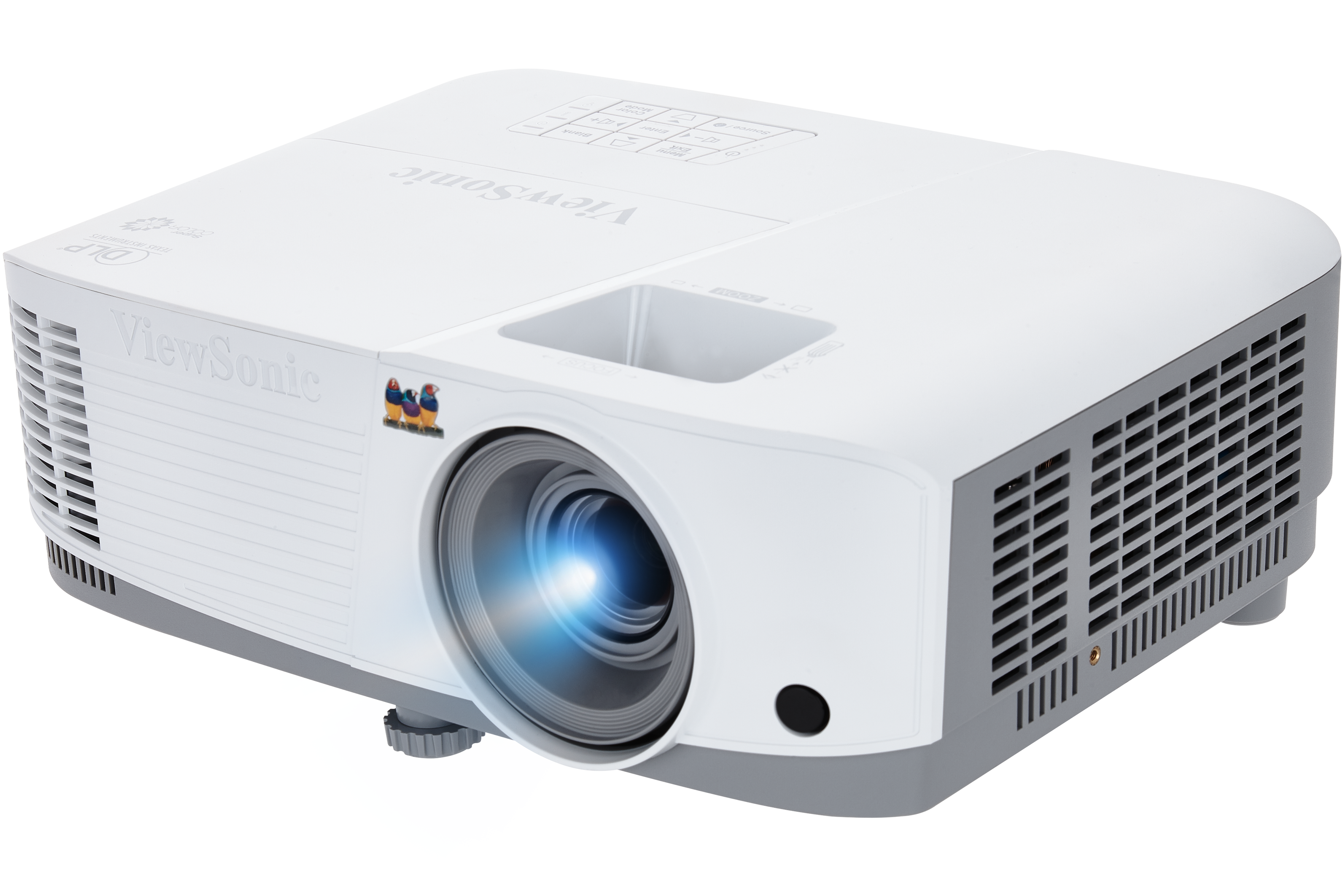

PA503SP
Product Description
The ViewSonic PA503SP SVGA projector for presentations offers impressive multimedia performance from various devices in small to medium-sized meeting rooms and classrooms. Packed with 3,800 ANSI Lumens of high brightness and SuperColor™ Technology, the projector is guaranteed to project consistent and true-to-life images even in brightly lit environments. It integrates dual HDMI, VGA, Composite inputs and 2W speaker, fulfilling the needs to project multimedia contents such as online videos. In addition, with the USB Type-A with power supply, it is capable for wireless projection through HDMI wireless dongle for media streaming or mirroring contents from mobile devices. This projector also comes with an energy-efficient smart energy feature which reduces power consumption and extends the lamp life to 15,000 hours.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 800x600
    DC Type: DC3
    Brightness: 3800 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Colour: 1.07 Billion Colours
    Light Source: Lamp
    Light Source Life: 5000/15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1 mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Image Size: 30" - 300"
    Throw Distance: 1.19m-13.11m(100" @3.98m)
    Keystone: +/- 40° (Vertical)
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x ~ 2.0x
    Audible Noise (Normal/Eco): 31 / 27dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (share with component): 2
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI (HDCP): 2 (HDMI 1.4/ HDCP 1.4)
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1A)
  • CONTROL
    RS232: 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 260W / Standby: <0.5W
    Operating Temperature: 0~40℃
    Net Weight: 2.2kg
    Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-108
    Carry Bag: PJ-CASE-008
