Key Features
Higher Brightness - Longer Lamp Life - XGA DLP Projector

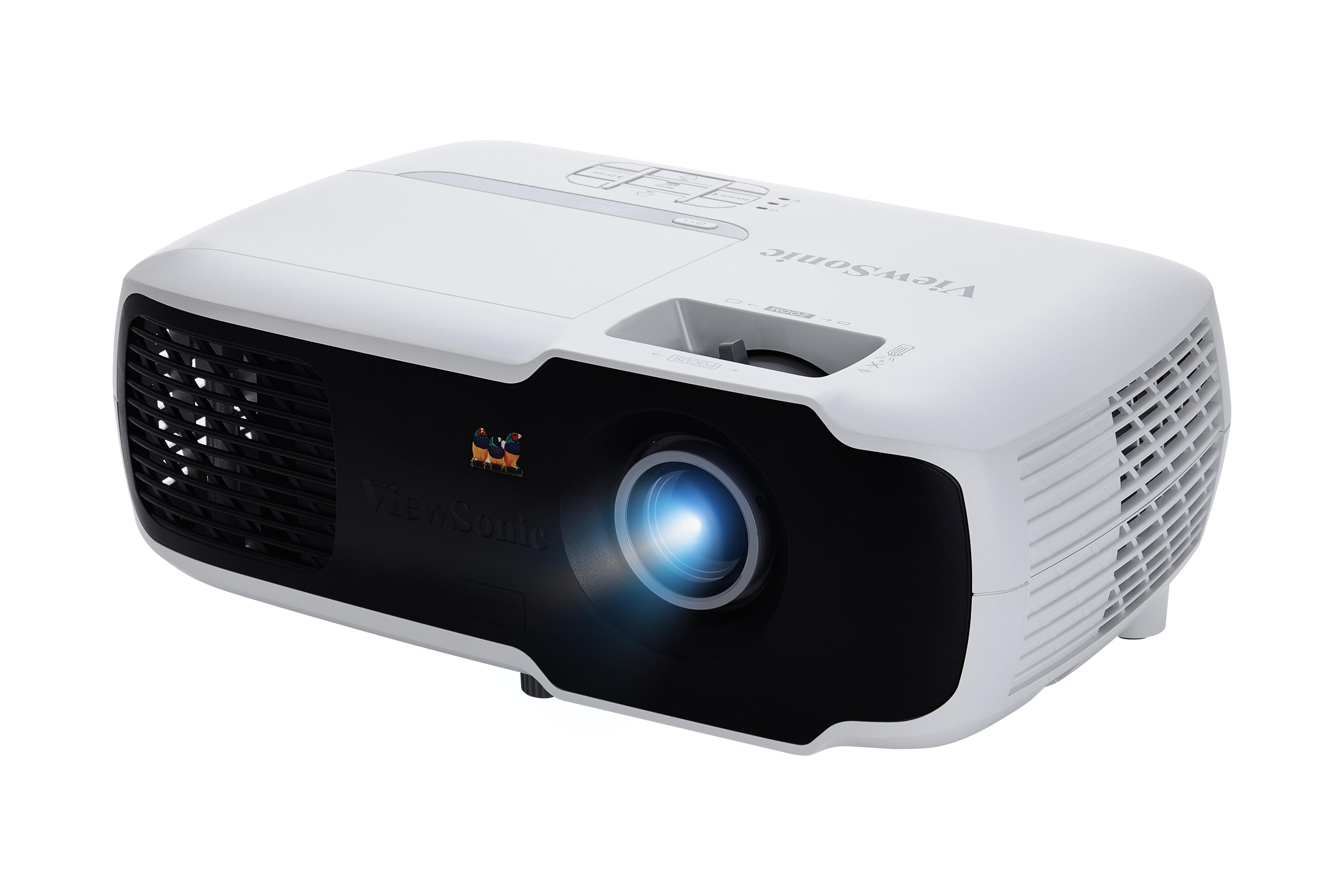

PA502X
Product Description
The ViewSonic PA502X projector for presentations offers impressive visual performance in small sized meeting rooms and classrooms. Packed with up to 3500 ANSI lumens of brightness and a 22,000:1 contrast ratio, the PA502X projector is guaranteed to project the finest of details, even in brightly lit environments. ViewSonic’s exclusive SuperColor™ technology offers wide gamut color coverage that produces true-to-life image color for realistic and engaging image projection. Users can project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices. PA502X also comes with an energy efficient SuperEco feature which reduces lamp power consumption by up to 70%, and extends the lamp life to 15,000 hours on average.

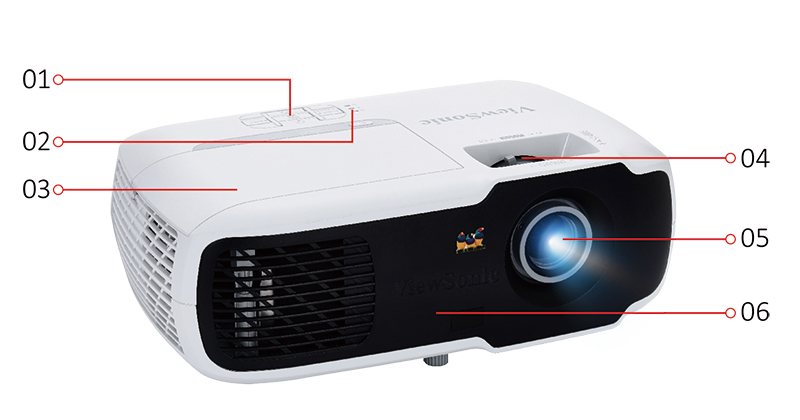

  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Zoom/Focus
  5. Projection Lens
  6. Front IR

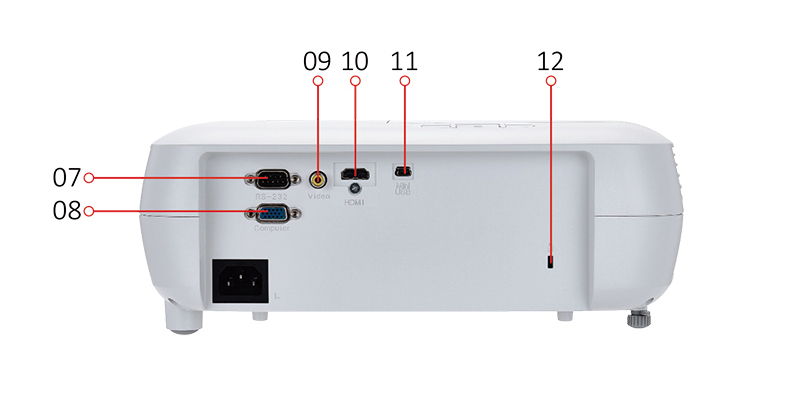

  7. RS232
  8. VGA
  9. Video
  10. HDMI
  11. Mini USB
  12. Kensington® LockSlot
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1024x768
    DC type: DC3
    Brightness: 3500lm
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light source life (Nor/SuperEco): 5000/15000
    Lamp Watt: 190W
    Lens: F=2.5-2.7, f=22.08-24.28mm
    Projection Offset: 125%+/-5%
    Throw Ratio: 1.97~2.17
    Image size: 30" - 300"
    Throw Distance: 1.16m-13.42m(100" @ 3.97m)
    Keystone: ±40° (Vertical)
    Optical Zoom: 1.1x
    Audible Noise (Eco): 30dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (D-SUB 15 pin): 1
    Composite: 1
    HDMI: 1 (Back)
  • CONTROL
    RS232: 1
    USB type mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 240W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.1kg
    Dimensions (WxDxH) w/adjustment foot: 320x209.8x122.7mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Remote Control: 1
    QSG & CD: QSG: 1 / CD: NA
