Key Features
  • Built in USB type A for charging
  • SuperColor™ technology
  • 2W cube speaker
  • Immersive 3D viewing
  • VGA, Composite and HDMI inputs

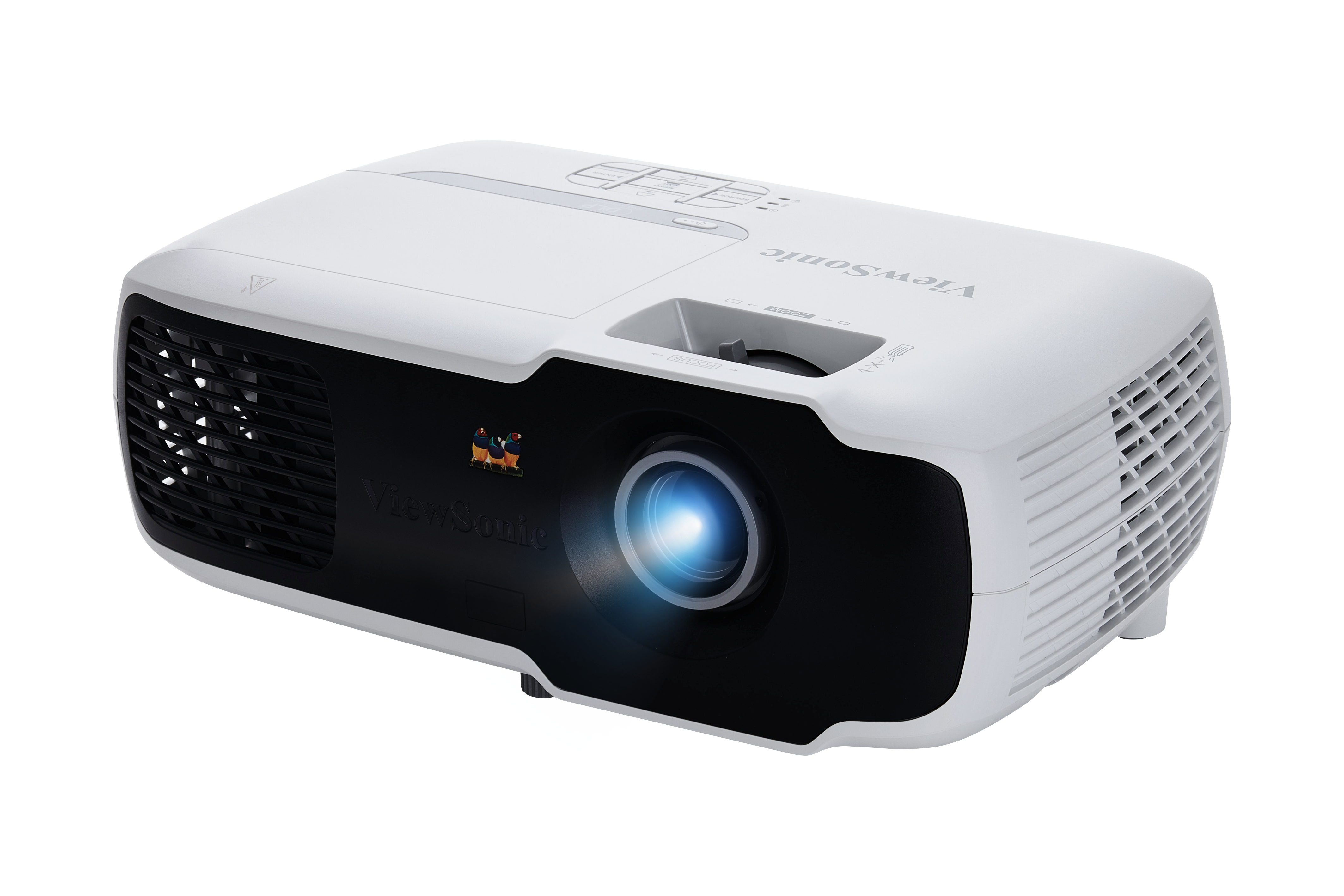

PA502SP
Product Description
The ViewSonic PA502SP SVGA projector for presentations offers impressive multimedia performance from various devices in small to medium-sized meeting rooms and classrooms. Packed with 3,500 ANSI Lumens of high brightness and SuperColor™ Technology, the projector is guaranteed to project consistent and true-to-life image even in brightly lit environments. It integrates VGA, Composite, HDMI inputs and 2W speaker, fulfilling the needs to project multimedia contents including multimedia devices and online videos. In addition, with the USB Type-A with power supply, it is capable for wireless projection through HDMI wireless dongle for media streaming or mirroring contents from mobile device. This projector also comes with an energy-efficient smart energy feature which reduces power consumption and extends the lamp life to 15,000 hours on average.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 800x600
    DC Type: DC3
    Brightness: 3500
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light Source Life: 5000/15000
    Lamp Watt: 190W
    Lens: F=2.5-2.7, f=22.08-24.28mm
    Projection Offset: 125%+/-5%
    Throw Ratio: 1.97-2.17
    Image Size: 30" - 300"
    Throw Distance: 1.16m-13.42m (100" @ 3.97m)
    Keystone: +/- 40° (Vertical)
    Optical Zoom: 1.1x
    Audible Noise (Normal/Eco): 30dB
    Response Time: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI (HDCP): 1 (HDMI 1.4/ HDCP 1.4)
  • OUTPUT
    Audio out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/ 1A)
  • CONTROL
    RS232: 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 240WStandby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.1kg
    Dimensions (WxDxH) with Adjustment Foot: 320x210x123mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-111
    Carry Bag: PJ-CASE-008
