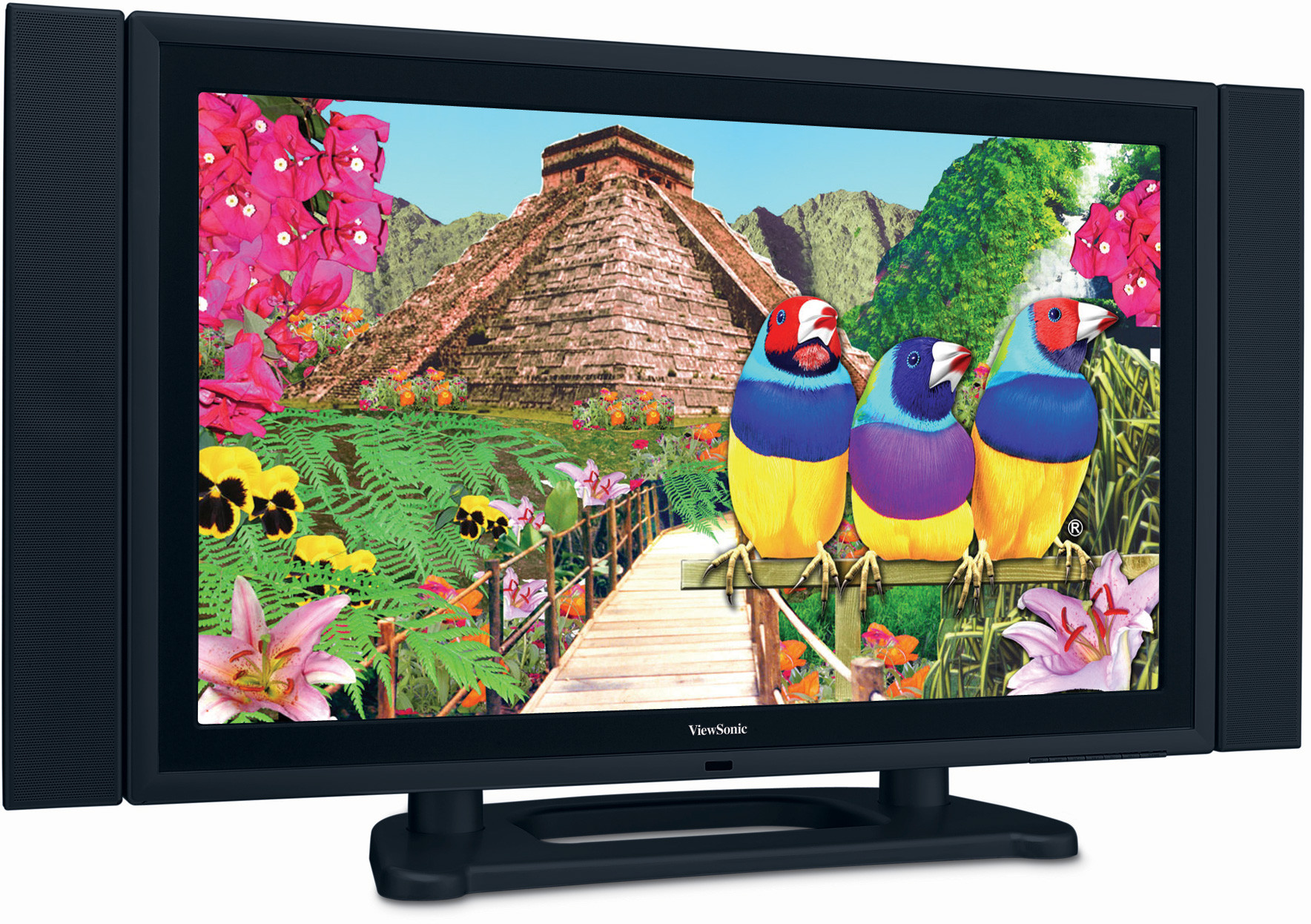

ViewSonic N4200w 42” WIDE-SCREEN HD-READY LCD TV WITH DNX™

LCD

Type:	107cm / 42" (42.02" viewable) color TFT active matrix, wide LCD
Contrast Ratio:	1600:1 (typ.)
Viewing Angles:	178° horizontal, 178° vertical (at 10:1)
Brightness:	500cd/m² (typ.)
Glass Surface:	Anti-glare 3H
Display Area:	93.0cm (horizontal) x 52.3cm (vertical), 107cm diagonal
Response Time:	8ms (grey-to-grey)
Aspect Ratio:	16:9

COMPATIBILITY

PC: 1360x768 (preferred), 1024x768, 1280x768

Mac®: Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720
DIMENSIONS

W x H x D mm: 1243 x 739 x 304 (with base)

1243 x 655 x 146 (without base)

1052 x 655 x 146 (without base/speakers)
PACKAGE CONTENTS

LCD TV, power cables (Europe [Schuko]/UK), 1.5m RF cable, remote control, batteries, quick start guide, user guide (multi-language)
AUDIO

Speaker: 2x10-watt SRS TruSurround
INPUT

Video Input: PAL (B/G, D/K, I), SECAM (L), NTSC³, SD (480i/p, 576i/p), HD (720p, 1080i)
INPUT SIGNAL

TV/Video comp.: 480i, 480p, 576p, 720p, 1080i

CONNECTOR

Power:	3-pin plug (CEE22)
Audio Out:	1 x L/R RCA set 1 x SPDIF
Composite Video Input:	1 x 4-pin mini DIN jack
Component Video Input:	1 x RCA set (YPbPr/YCbCr)
Audio Input:	2 x L/R RCA set
Audio:	1 x RCA R/L Out
Headphone:	1 x 3.5mm mini stereo jack
SCART:	2 x SCART² (SCART 1 [RGB In, S-video In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Composite Video Output:	1 x RCA (CVBS)
Digital-In:	2 x HDMI (HDCP)
Tuner (Analogue):	1 x Coax RF (PAL/SECAM)

CONTROLS

Basic:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (Contrast, brightness, colour temperature [11000k, 9300k, 7500K], sharpness, flesh tone, white balance), TV Menu (Nicam, TV/CATV, channel edit, fine tune), Audio Menu (bass, treble, balance, sound effect), Setup Menu (view mode, sleep timer, blue screen, factory preset, language, OSD position, OSD transparency , OSD timeout), PIP/POP Menu (source, mode, size, position)

OPERATING CONDITIONS

Temperature: 10% to 80% (non condensation)

Humidity: 10% to 80% (non condensation)
WEIGHT

Net: 33kg (with base), 30.4kg (without base), 28.4kg (without base/speakers)
VESA MOUNT COMPLIANT

VESA® FDMI 200mm x 300mm, 200mm x 400mm, M6 screws
TELETEXT

Yes (1000 pages)

PC:	1360x768 (preferred), 1024x768, 1280x768
Mac®:	Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720

Voltage:	AC 90-240V (universal), 50-60Hz
Consumption:	240W (typ)

Temperature:	10% to 80% (non condensation)
Humidity:	10% to 80% (non condensation)
