Key Features
  • Laser phosphor technology
  • 6,000 ANSI Lumens
  • 30,000 hours of maintenance-free projection
  • H/V lens shift
  • 1.65X optical zoom

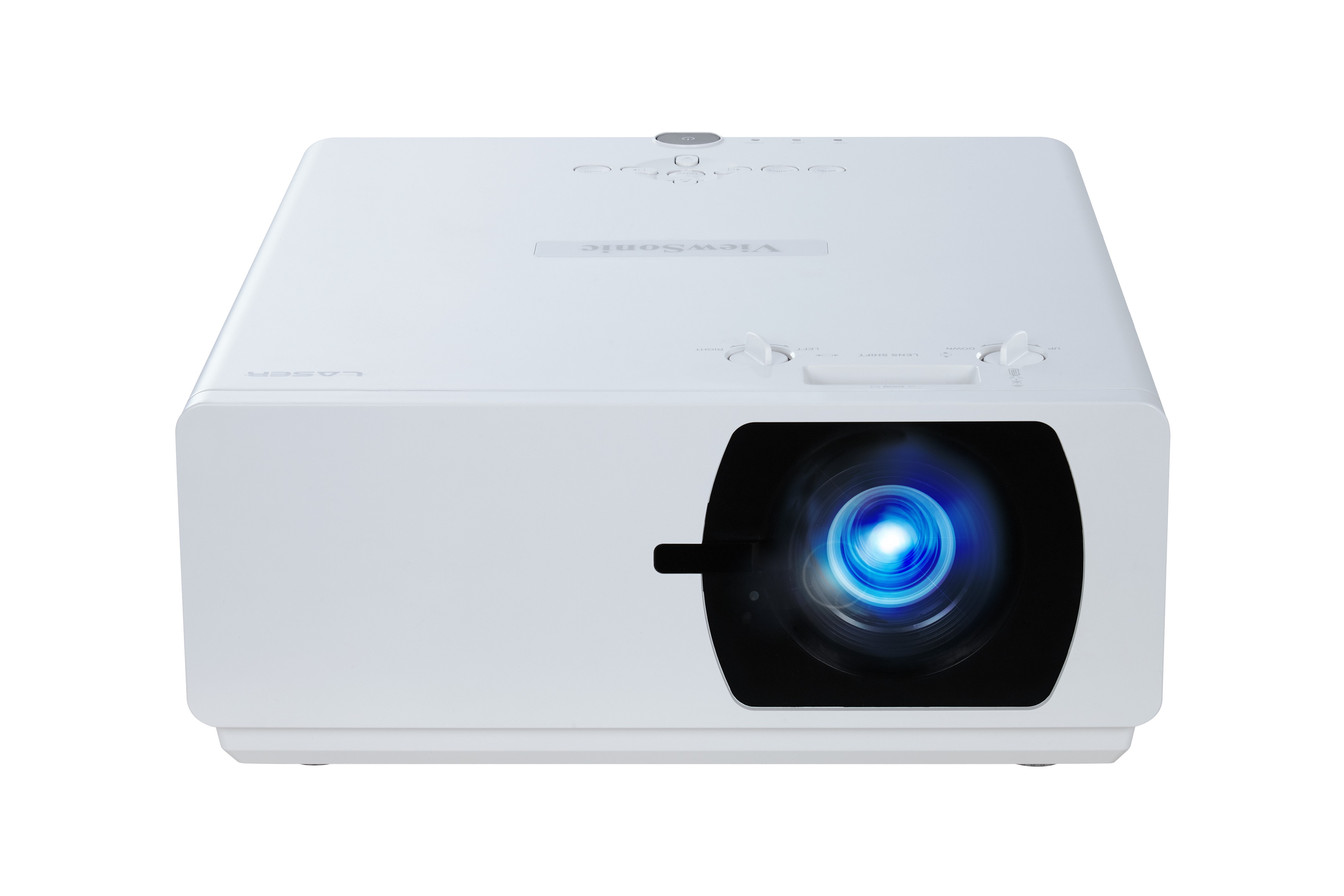

LS900WU
Product Description
Bright and versatile for any professional installation, the ViewSonic LS900WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, a 100,000:1 contrast ratio, and up to 30,000 hours of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms and more. Thanks to SuperColor™ technology, content is brought to life with captivating visuals, crisp graphics, and superior colour reproduction. It is also easy to deploy and manage with its wide 1.65x optical zoom adjustment, vertical/horizontal keystone correction, 4 corner adjustment, and a vertical/horizontal lens shift feature – all providing maximum flexibility in even the most challenging installations. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for several mounting options. The ViewSonic LS900WU is the ideal WUXGA laser projector for professional installations and large venues, as well as business and education environments.

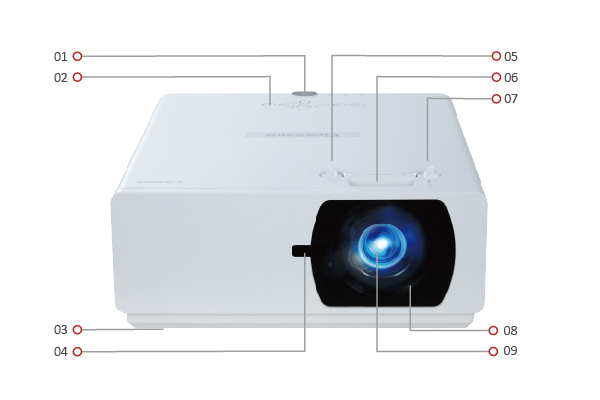

  1. Power Key & Top IR
  2. Keypad
  3. Adjustment foot
  4. Front IR
  5. Horizontal lens shift adj.
  6. Optical zoom 1.65x
  7. Vertical lens shift adj.
  8. Focus adjustment
  9. Lens

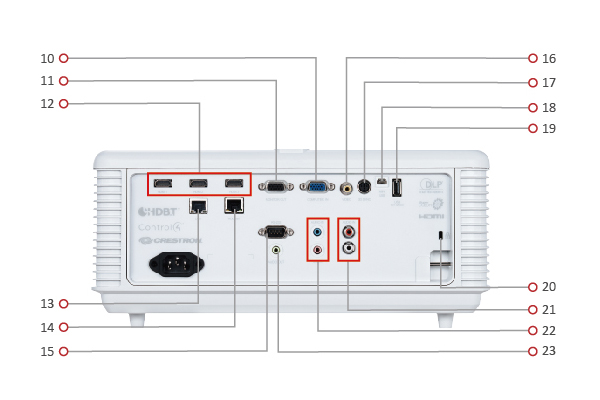

  10. Monitor out
  11. Computer in
  12. HDMI x 3
  13. LAN (RJ45)
  14. HDBaseT (RJ45)
  15. RS232
  16. Video
  17. 3D sync (VESA)
  18. Mini USB (Service)
  19. USB type A (5V/1.5A)
  20. Kensington lock
  21. Audio in (RL)
  22. Audio in / MIC in
  23. Audio out
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1200
    Brightness: 6000 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 3000000:1
    Display Colour: 1.07 Billion Colours‎
    Light Source Type: Laser Phosphor system
    Light Source Life (Normal): 20000
    Light Source Life (SuperEco): 30000
    Lamp Watt: Laser Bank x 4
    Lens: F=2.45-3.13, f=17.23-27.9mm
    Projection Offset: 130%+/-10%
    Throw Ratio: 1.15-1.9
    Optical Zoom: 1.65x
    Digital Zoom: 1.0x-2.0x
    Image Size: 50"-300"
    Throw Distance: 1.24-7.43m
    (100"@2.48m )
    Keystone: H:+/-30° , V:+/-25°
    Lens Shift V. Range: Yes (+9.2%, -2.4%)
    Lens Shift H. Range: Yes (+2.5%, -2.5%)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 32dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    HDMI: 3
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    Microphone in: 1
    3D VESA (Sync): 1
    HDBaseT: 1
    RJ45 Input: 1
    (LAN control)
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 5W x 2
    USB Type A (Power): 1 (5V / 1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45: 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Operating Temperature: 0~40℃
    Net Weight: 11.0kg
    Dimensions (WxDxH) with Adjustment Foot: 360x440x161mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Total 22 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: 1
