Key Features
  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan​
  • Designed for Xbox with 1440p @ 120Hz for an unrivaled gaming experience ​
  • True 4K HDR immersive visual experience with up to a 300" screen ​
  • 3,500 ANSI Lumens offering bright images in any environment ​
  • High native contrast ratio through 0.65" DMD chip​
  • Installation flexibility: V lens shift, 1.36x optical zoom, H/V keystone

LS710-4KE
Product Description
Transform any home into a cinematic experience with the LS710-4KE laser home projector. Adopting the 3rd generation laser phosphor technology with 3,500 ANSI Lumens and up to 30,000 hours lifespan, it delivers vibrant and bright visuals without the need for lamp replacement. This projector is designed for Xbox, supporting Xbox-exclusive resolution and refresh rate combinations for a seamless gaming experience. With the support of 1440p at a 120Hz refresh rate, it strikes a perfect balance of visual quality and fluidity that gamers love. Experience enhanced visual depth on a screen size of up to 300'' with a high native contrast ratio through 0.65" DMD chip. The LS710-4KE features V lens shift, 1.36x optical zoom, H/V keystone, and 4 corner adjustment, allowing you to easily set up a big screen tailored to your preferences.​

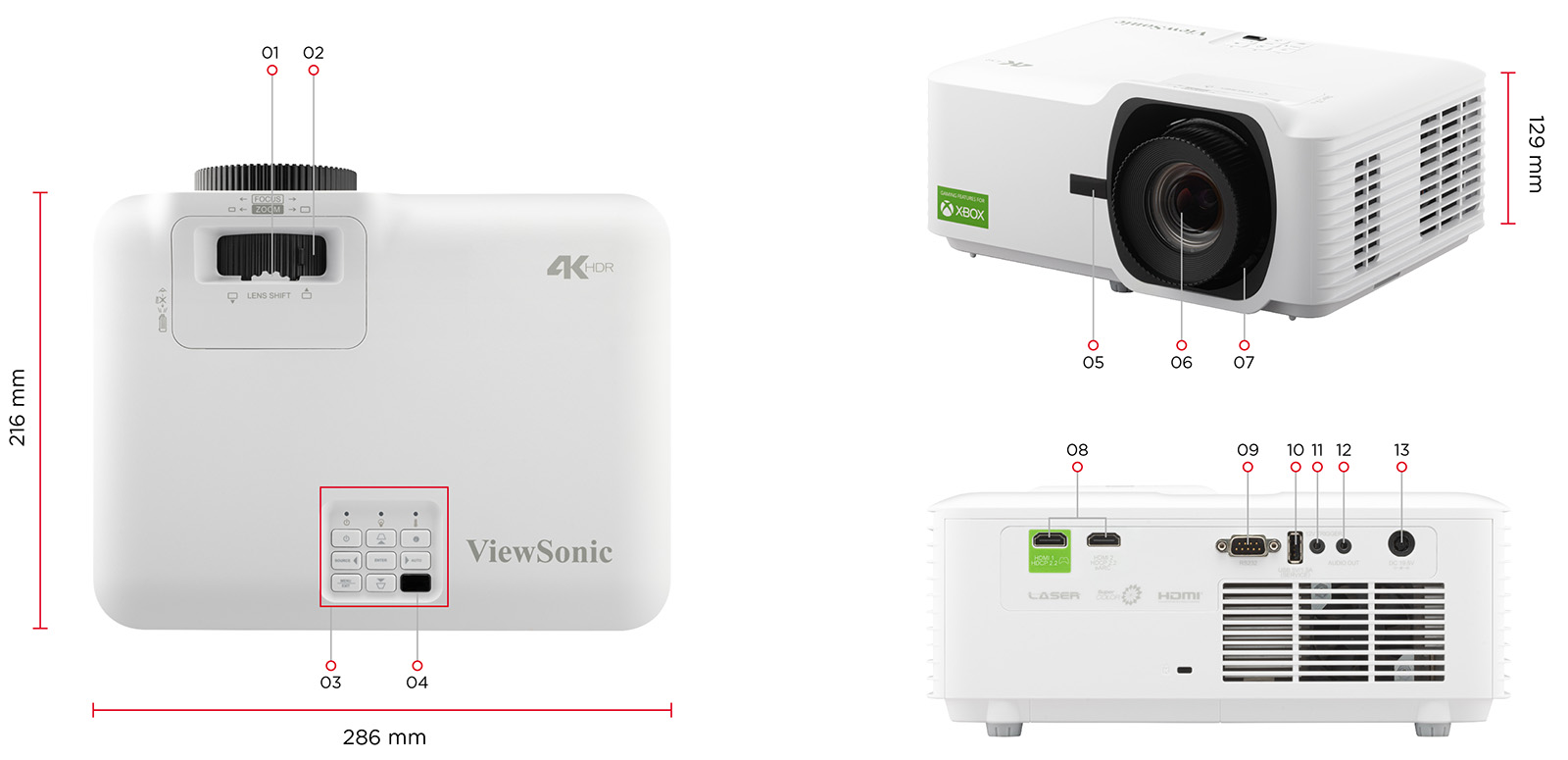

  1. Lens Shift Control Knob
  2. Zoom Ring
  3. Keypad
  4. Top IR
  5. Front IR
  6. Lens
  7. Focus Ring
  8. HDMI 2.0/ HDCP 2.2
  9. RS232
  10. USB-A (5V/1.5A , Service)
  11. 12V Trigger
  12. Zoom Ring
  13. Audio Out
  14. DC In
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 3840x2160
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio: 3,500,000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.51-2.93, f=15.985-21.423mm
    Projection Offset: 137%+/-10%
    Throw Ratio: 1.06-1.45
    Optical Zoom: 1.36x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1-7m
    (100"@2.35m)
    Keystone: H:+/-30° , V:+/-30°
    Lens Shift V. Range: +15%, -0%
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 26dB
    Input Lag: 4.2ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-240Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2)
  • OUTPUT
    Audio-out (3.5mm): 1
    Audio-out (HDMI ARC): 1 (eARC)
    (Share with HDMI Input)
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: Normal: 180W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 3.30kg
    Gross Weight: 4.70kg
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
    Packing Dimensions: 400x280x155mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    (w/ backlit)
    QSG: Yes
    Warranty: *Warranty offered may differ from market to market
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
