Key Features
  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • ViewBoard® Cast 4-way split screen content sharing software
  • SmartPort™ shared front USB ports for internal & external PCs
  • 2.0 Stereo sound

IFP9850-3
Product Description
The ViewBoard® IFP50 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 2.5mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine tipped pens. The ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience so that even at the edge you can write clearly and confidently. Integrated myViewBoard™ digital whiteboarding software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split screen content sharing.

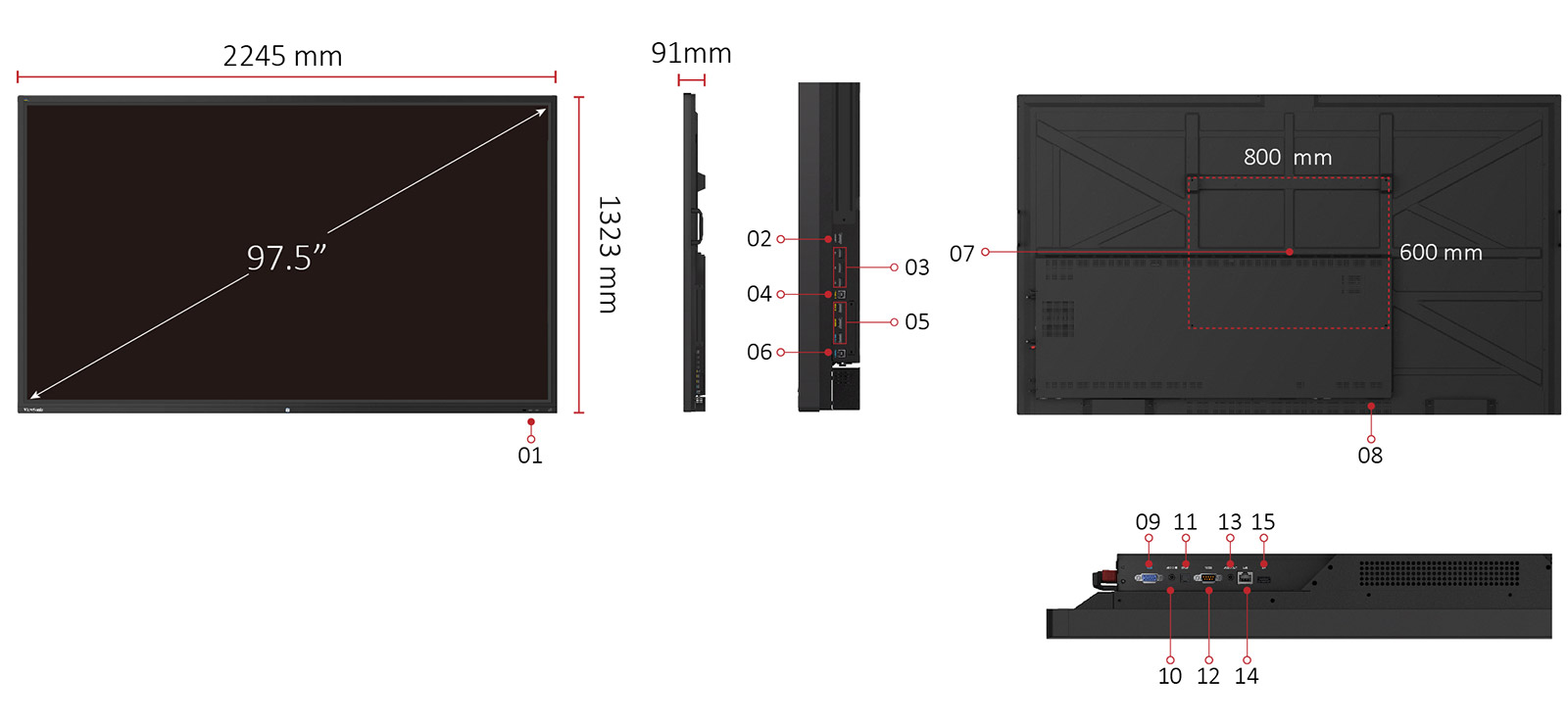

  1. USB 2.0 X 2
  2. HDMI OUT
  3. USB 3.0 X 3
  4. USB Touch Port
  5. HDMI In X 3
  6. USB Touch Port
  7. VESA® WALL Mount 800x600 mm
  8. AC IN
  9. VGA
  10. AUDIO IN
  11. SPDIF Out
  12. RS232
  13. AUDIO OUT
  14. LAN
  15. USB 2.0
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 98"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1200:1 Typ. , 5000:1 Max.
    Response Time: 6ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 hrs
    Surface Treatment: Anti-Glare
    Orientation: Landscape
  • PLATFORM
    Processor: ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz)
    RAM: 3GB DDR4
    Storage: 16GB
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    Audio: x1 (PC audio in)
    RS232: x1
    OPS: Proprietary PC slot x 1
  • OUTPUT
    HDMI: x1
    Audio: x1 (Earphone out)
    SPDIF: 1(optical)
    RS232: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x3
    USB 3.0 x3
    Type B: x2, for touch
  • SPEAKERS
    SPEAKERS: 12Wx2
  • CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION
    Camera plate on top for screw-in webcam installation: Yes
  • COMPATIBILITY
    HDMI: 3840x2160
  • USB SUPPORTED FILE FORMAT
    USB SUPPORTED FILE FORMAT: Picture -
    BMP, JPEG, PNG,GIF

    Video -
    Codec: H.263, H.264, MJPEG, MPEG2, MPEG4, RV30/40, VP6, Xvid-ASP
    Container: 3GP, ASF, ASX, AVI, FLV, M4V, MKV, MOV, MP4, MPG, MPEG, RMVB, TS
    H.265

    Audio -
    Codec: AAC, ALAC, FLAC, MPEG 3, Vorbis, WAV, WMA
    Container: AAC, APC, FLAC, M4A, MP3, OGG, WAV, WMA
  • BUNDLE SOFTWARE
    Basic Annotation Software: myViewBoard for android
    Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
    Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast
  • SPECIAL FEATURES
    All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort USB” to all channels.
    Simple LAN sharing between IFP and slot-in device: Yes
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: 171 (Typ.)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 800 x 600
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 10% ~ 90% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm
    Packaging (inch / mm): 97.8 x 58.8 x 14.8 in / 2483 x 1493 x 376 mm
  • WEIGHT
    Net (lb / kg): 223.77 lb / 101.5 kg
    Gross (lb / kg): 306 lb / 138.8 kg
  • ENERGY STAR VERSION
    Energy Star version: ES8.0
  • EEI RATING
    EEI rating: A++
  • PACKAGE CONTENTS
    PACKAGE CONTENTS: 1. Power cable(3 meters) x 4 2. Remote control 3. USB cable(5 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable
  • COMPATIBLE SLOT-IN PC
    Compatible Slot-in PC: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
