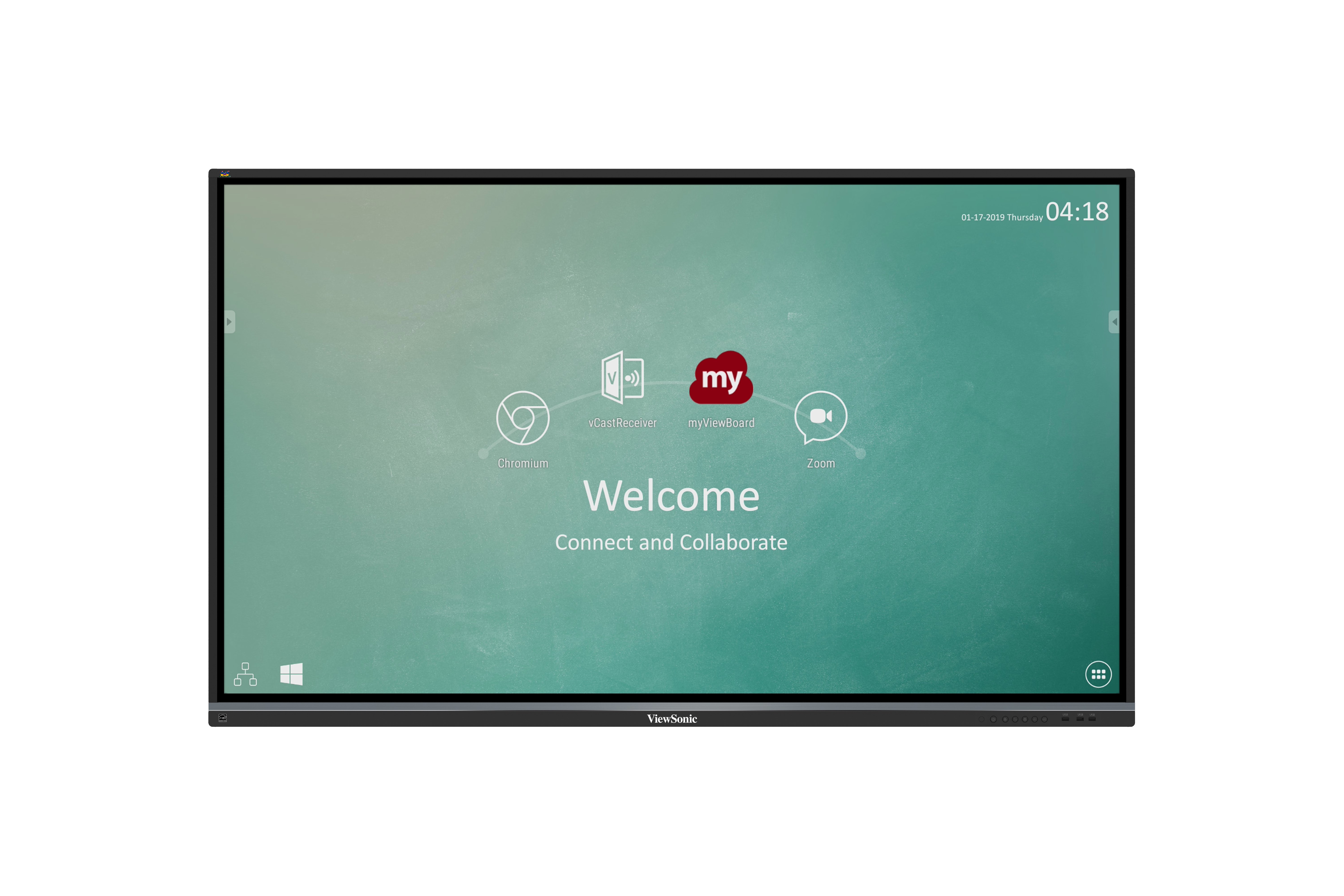

ViewBoard
IFP8650-2EP
Key Features
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- ViewBoard® Cast 4-way split screen content sharing software
- SmartPort™ shared front USB ports for internal & external PCs
- 2.1 Stereo sound with built-in subwoofer
Product Description
The ViewBoard® IFP50-2EP series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 3mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine-tipped pens. The ViewBoard® IFP50-2EP series is designed with a slim bezel to broaden your viewing experience so that even at the edge of the panel you can write clearly and confidently. Integrated myViewBoard™ digital whiteboard software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split-screen content sharing.

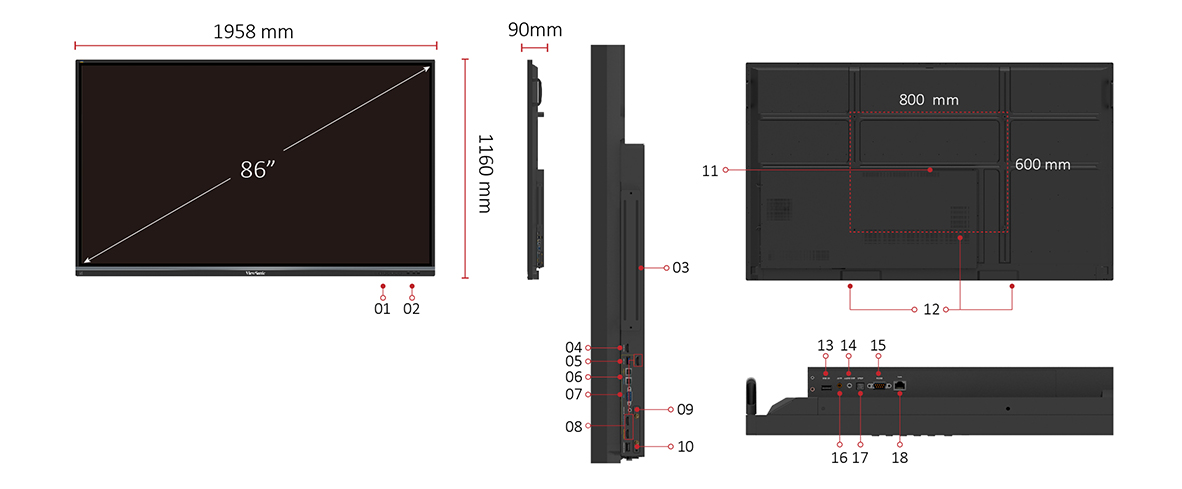

- MENU CONTROLS
- USB X 3
- EMBEDDED PC SLOT
- HDMI OUT
- USB 3.0
- TOUCH X 2
- VGA
- HDMI IN X 2
- AUDIO IN
- CAMERA PORT
- VESA® WALL Mount 800x600 mm
- INTERNAL SPEAKERS
- USB 2.0
- AUDIO OUT
- RS232
- AV IN
- SPDIF
- LAN
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 86" Type/Tech: TFT LCD Module with DLED Backlight. Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal) Aspect Ratio: 16:9 Native Resolution: UHD 3840x2160(Pixels) Colours: 1.07B colours (10bit) Brightness: 350 nits (typ.) 300 nits (min.) Contrast Ratio: 5000:1 (DCR) Response Time: 8ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 50,000 Hours Surface Treatment: Anti-Glare Bezel: Slim Orientation: Landscape -
PLATFORM
Processor: ARM Cortex A73 dual-core 1.2GHz RAM: 2GB DDR4 Storage: 16GB -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32767 x 32767 Touch Point: 20 points touch, 10 points writing -
INPUT
HDMI: 2.0 x3 (3840x2160 @60Hz) RGB / VGA: x1 Audio: x1 (PC audio in) CVBS: x1 RS232: x1 OPS: Proprietary PC slot x 1 -
OUTPUT
HDMI: x1 Audio: x1 (Earphone out) SPDIF: 1(optical) RS232: x1 -
LAN
RJ45: x1 -
USB
Type A: USB 2.0 x4(including 2 USB port in front)
USB 3.0 x2(including 1 USB port in front)Type B: x2, for touch -
SPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 -
TOP CAMERA PLATE
Yes -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i HDMI: 3840x2160 -
EMBEDDED OS
Embedded OS: Android 7 -
USB SUPPORTED FILE FORMAT
USB SUPPORTED FILE FORMAT: Picture -
BMP, JPEG, PNG
Video -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKV
Audio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3 -
BUNDLE SOFTWARE
Basic Annotation Software: myViewBoard Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) Wireless Presentation with Touch Feedback: Viewboard Cast: Yes ViewSonic Launcher: Embedded -
SPECIAL FEATURES
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10M/100M for Android 10M/100M/1000M for slot-in PC -
POWER
Voltage: 100-240VAC +/- 10% Wide Range Consumption: 155W (Typ.)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 800 x 600 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm Packaging (inch / mm): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm -
WEIGHT
Net (lb / kg): 153.66 lb / 69.7 Kg Gross (lb / kg): 202.83 lb / 92 Kg -
ENERGY STAR VERSION
Energy Star version: ES8.0 -
EEI RATING
EEI rating: A+ -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable (3 metres) x 4
2. Remote control
3. USB cable (3 metres)
4. AV cable
5. Touching pen x 2
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Plate
10. Screw x 8
11. HDMI cable (3 metres) -
COMPATIBLE SLOT-IN PC
Compatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
