Key Features
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Integrated with myViewBoard™ Ecosystem – Your Digital Whiteboard in the Cloud

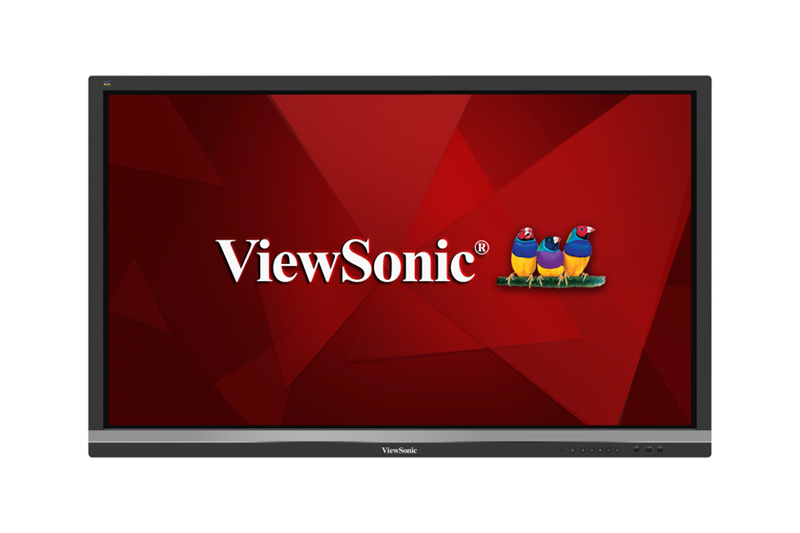

IFP5550
Product Description
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP5550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 55” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. IFP5550 display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP5550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
  1. SPEAKERS
  2. VESA® WALL MOUNT 400x400 mm
  3. MENU CONTROLS
  4. USB 2.0
  5. CVBS IN (AV IN)
  6. SPDIF (COAX OUT)
  7. RS232 IN
  8. AUDIO OUT
  9. RJ45 (LAN)
  10. POWER ON/OFF
  11. AC IN
  12. USB 2.0 & 3.0
  13. HDMI IN
  14. AUDIO IN
  15. USB 2.0 & 3.0
  16. PC SLOT
  17. HDMI OUT
  18. WIFI & BLUETOOTH MODULE SLOT
  19. USB 2.0(Touch)
  20. DisplayPort
  21. VGA IN
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 55"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal)
    Aspect Ratio: 16:09
    Resolution: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Brightness: 350 nits (typ.) 300 nits (min.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 7H
    Type/ Tech: IR Recognition
  • TOUCH
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
    Response Time: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 80,000hrs
  • INPUT
    HDMI: 1.4a x 2 (3840 x 2160@30Hz)
    2.0 x 1 (3840 x 2160@60Hz)
    RGB / VGA: x 1
    DisplayPort: x 1 (3840 x 2160@60Hz)
    Audio: x 1 PC audio (3.5mm)
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 1 (proprietary)
  • OUTPUT
    HDMI: x 1 (1080P@60Hz)
    Audio (Earphone out): x 1
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
    2.0 Type B (For touch): x 2
  • SPEAKERS
    16W x 2
  • BUILT-IN PC
    Processor: ARM Cortex A53 Quad Core 1.2G Hz CPU
    Graphic: ARM Mali-450 Quad Core
    Memory: 2GB DDR3
    Storage: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
    CVBS: 480i
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: 129W(Typ, without Slot-In PC); 224W(Typ, Including Slot-In PC)
  • WALL MOUNT
    VESA®: 400 x 400mm; Screw: M8 x 25mm
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Humidity: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 51.3x31.5x3.9 in/ 1302x799x98 mm
    Packaging (inch / mm): 58.3x8.66x37.8 in / 1480×220×960 mm
  • WEIGHT
    Net (kg / lb): 34kg / 74.96lbs
    Gross (kg / lb): 46kg / 101.41lbs
  • WHAT'S IN THE BOX?
    1.VGA cable(5 meters)
    2.Power cable(3 meters) x 4
    3.Remote control
    4.USB cable(5 meters)
    5.Audio cable(5 meters)
    6.AV cable
    7.Touching pen x 3
    8.User manual CD wizard
    9.Quick Start Guide
    10.RS232 adapter
    11.Clamp x 5
    12.Plate
    13.Screw x 3
